Open Loop Hall Effect Current Sensor, DC 0-50A/800A/1500A

SKU: SUCH-HEC-DC1500
$83.99
● Measuring range DC 0-50A/500A/1500A ● Hole diameter 20/40/55 mm ● 12/24V DC power supply ● DC 4-20mA output signal ● Split-core type measuring method
*
*
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The open loop hall effect current sensor, available in DC 0-50A, 800A, and 1500A models, offers precise, non-contact current measurement using Hall Effect technology. It ensures high accuracy and linearity, delivering stable and reliable data across a wide range of currents. With a fast signal response, it’s ideal for real-time monitoring in dynamic systems. The DC current sensor sensor has excellent overload and electromagnetic interference resistance, making it suitable for harsh environments. It offers versatile integration with PLCs and controllers, ensuring seamless operation in applications like battery management, solar energy, electric vehicles, motor drives, and power distribution. Built with robust materials, this sensor guarantees durability and long-lasting performance.

Feature

  • Wide Current Measurement Range: Available in three models with measurement ranges of DC 0-50A, 0-800A, and 0-1500A, offering flexibility for a variety of current monitoring applications, from low to high power systems.
  • Open Loop Hall Effect Technology: Utilizes the Hall Effect principle to provide accurate, non-contact current measurement, ensuring precise and reliable data without direct electrical connection to the conductor.
  • High Accuracy and Linearity: Hall effect current sensor delivers precise and linear current measurements with minimal distortion, ensuring stable and accurate performance across the entire range.
  • Fast Signal Response: Designed for real-time monitoring with a quick response time, ideal for dynamic systems requiring immediate feedback and adjustments.
  • Excellent Overload and Interference Resistance: Built to withstand high overload conditions and resist electromagnetic interference, ensuring consistent performance even in harsh electrical environments.
  • Versatile Integration: SUCH current sensor has standard output signals, making it compatible with various data acquisition systems, PLCs, and controllers for seamless integration into existing setups.
  • Robust and Durable Construction: Designed with high-quality materials for long-lasting reliability and performance in demanding industrial environments.
  • Ideal for Various Applications: Perfect for monitoring DC current in systems such as battery management, solar energy applications, electric vehicles, motor drives, and power distribution.

Dimension (Unit:mm)

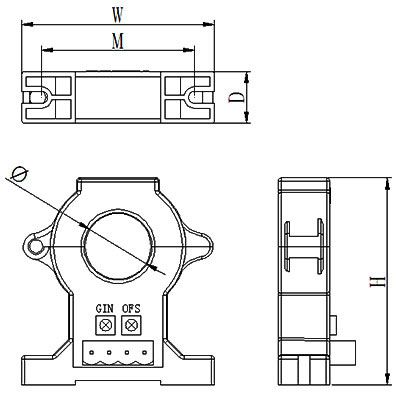

AC 50-1500a current sensor dimension

Φ (Hole diameter) W H D M (Mounting)
20 60 64 16 47
40 100 102 24 80
55 115 110 27 95.5


Wiring Diagram

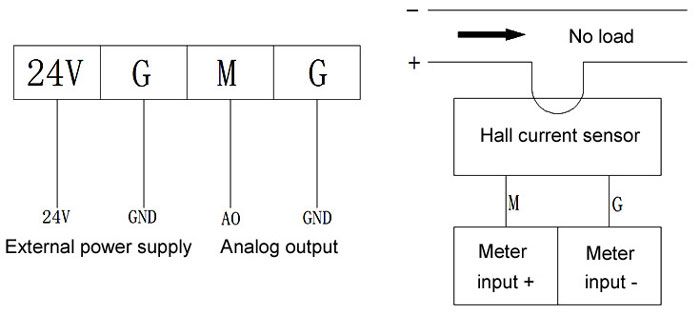

AC 50-1500a current sensor wiring diagram

Detail

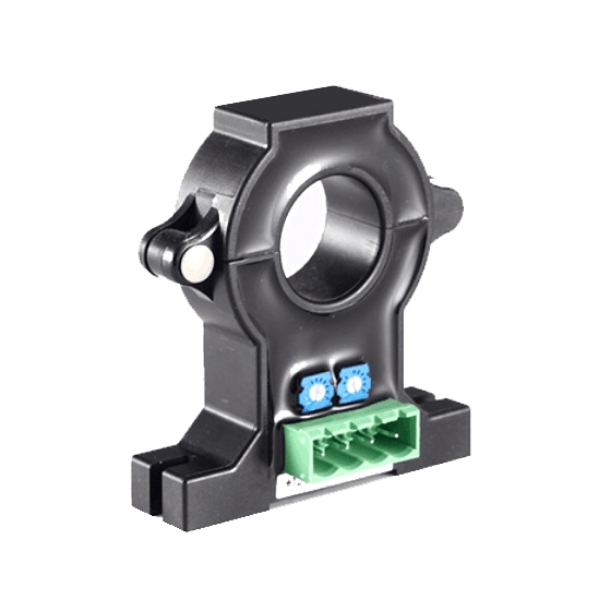

Open loop hall effect current sensor dc 0-1500a detail

Caveat

  1. When using Hall sensors, to achieve better dynamic characteristics and sensitivity, it is essential to ensure proper coupling between the primary and secondary coils. It is recommended to use a single wire that fully fills the wire passage holes in the Hall sensor module.
  2. When using Hall sensors, the best measurement accuracy is achieved at the rated input current value. When the measured current is significantly below the rated value, to achieve the best accuracy, the primary side can use multiple turns, i.e., IPNP = rated ampere-turns. Additionally, the temperature of the primary feed line should not exceed 80°C.
  3. The auxiliary power supply for the Hall current sensor during normal operation should not exceed ±20% of the rated value, and the ripple should not exceed ±1%.
  4. The Hall current sensor must not be dropped from a height exceeding 1 meter during installation and use.
  5. The zero point and full-scale adjustment potentiometers should not be adjusted.
  6. The auxiliary power supply must be configured separately, and the positive and negative terminals of the power supply must not be reversed.
  7. It is recommended to use shielded cables for the output signal lines.
Specs
Hole Diameter 20mm/40mm/55mm
Measuring Range of Input Current (20mm) DC 0-50A ~ 0-500A
Measuring Range of Input Current (40mm) DC 0-200A ~ 0-1000A
Measuring Range of Input Current (55mm) DC 0-500A ~ 0-1500A
Output Signal DC 4-20mA
Zero Offset Current ±0.05mA
Offset Current Drift ±0.04mA/℃
Linearity ≤0.2%FS
Power Supply DC 24V±10% or DC 12V±10%
Accuracy 1.0%F.S.
Response Time ≤1ms
Withstand Voltage AC 2500V (between input, output and power supply)
Work Temperature -25~+70℃
Storage Temperature -40~+85℃
Humidity ≤95%RH (no dew formation, no corrosive gas)
Elevation ≤3500m
Shipping Weight 1kg
Measuring Method Split-core type
Installation Screw fixation
Application
Battery energy storage systems

Battery Energy Storage Systems

Solar power management

Solar Power Management

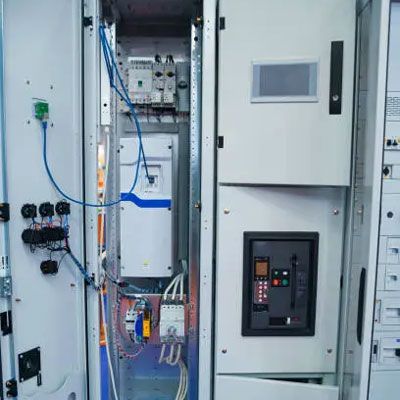

Variable frequency drives

Variable Frequency Drives

FAQ

An open loop Hall effect current sensor operates by detecting the magnetic field generated by an AC or DC current flowing through a conductor. It uses a Hall effect element placed in an air gap of a magnetic core to convert this magnetic field into a proportional voltage signal. In the open loop design, this signal is directly amplified and output without feedback correction, which ensures fast response, lower cost, and compact size—ideal for general current monitoring applications from 50A up to 1500A.

Open loop Hall sensors offer several key benefits for AC systems: they provide electrical isolation between the measured conductor and the output circuit, ensuring user safety and system protection. Their fast response time allows for real-time current monitoring, making them ideal for dynamic loads such as motor drives, inverters, UPS systems, and variable frequency drives. Additionally, they support wide measurement ranges with high linearity and can be easily integrated into PLCs, DSPs, or monitoring instruments via standard output signals like 4-20mA or 0-5V.

This sensor is widely used in industrial and energy applications where accurate current monitoring is crucial. Common scenarios include battery management systems, solar power inverters, electroplating and welding systems, motor control, uninterruptible power supplies (UPS), servo systems, and DC panels. Its compatibility with various current ranges (AC 50A to 1500A), combined with features like fast signal conversion and isolation, make it suitable for both light-duty and heavy-duty current sensing tasks.
