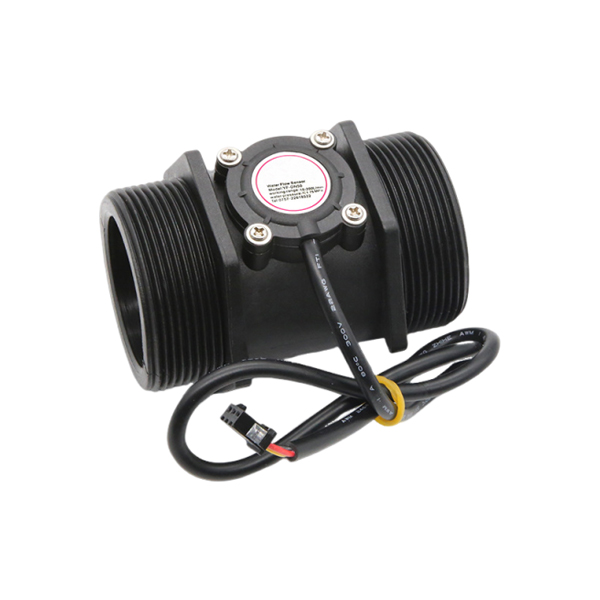

Irrigation Water Flow Sensor, 10~200 L/min

The high-flow irrigation water flow sensor covers a flow range of 10–200 L/min, with a 2-inch interface for easy integration into high-flow pipeline systems. The sensor valve body is constructed from high-strength nylon material with a pressure resistance of up to 1.75 MPa, suitable for clean water media free of impurities. The pulse output is stable at approximately 12 pulses per liter, enabling controllers to precisely calculate water usage and providing reliable data support for irrigation systems in farmlands, greenhouses, and parks.

Feature

• Utilizing advanced microcontroller technology, this flow control system integrates pulse-output flow sensors and solenoid valves.
• The irrigation water flow sensor supports a wide measurement range of 10–200 L/min, suitable for farmland drip irrigation, sprinkler irrigation, and high-flow irrigation systems.
• Featuring a high-strength nylon valve body design, it withstands water pressure up to 1.75 MPa, making it ideal for long-term outdoor irrigation environments and reducing maintenance frequency.
• The water flow sensor outputs a pulse signal proportional to flow rate, approximately 12 pulses per liter, with an error rate ≤5%. Its clear and stable high/low voltage levels facilitate seamless integration with flow meters, controllers, or PLCs, enabling precise water metering and automated control.

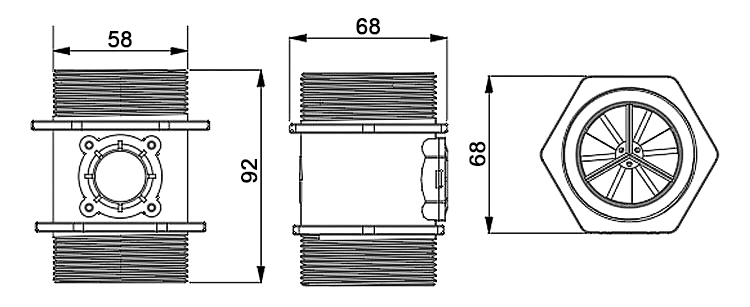

Dimension (unit: mm)

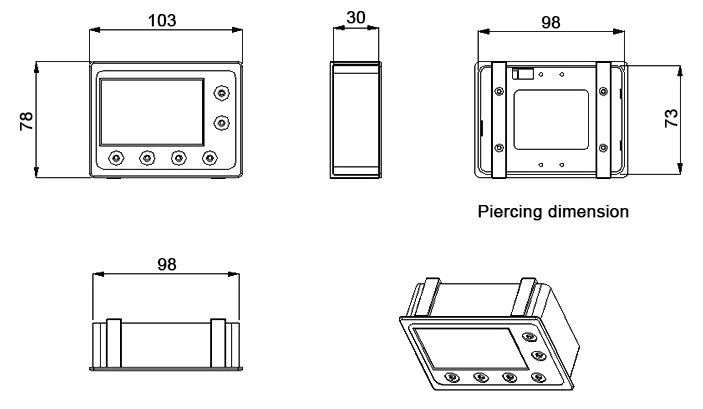

Water Metering Device

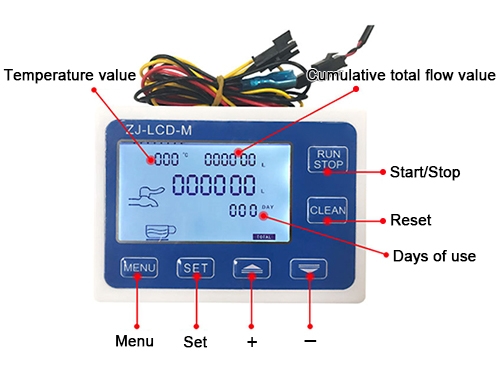

Detail

Note: When purchasing, please confirm the required functionality and the pipe diameter for the flow sensor. Different pipe diameters require setting different flow meter K-values on the display to ensure accurate measurement. Measurement accuracy can be calibrated by modifying the K-value.

Wiring Diagram

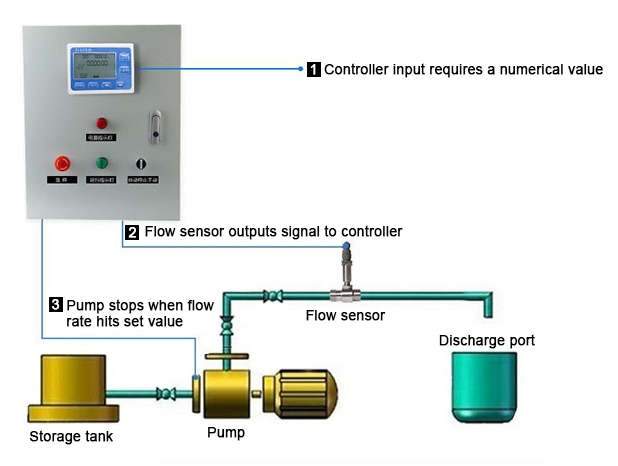

Water Flow Sensor Dosing Control System

Note: The above is a usage diagram. SUCH only sells digital displays, without the outer case! If you have any questions, please consult customer service before purchasing.
