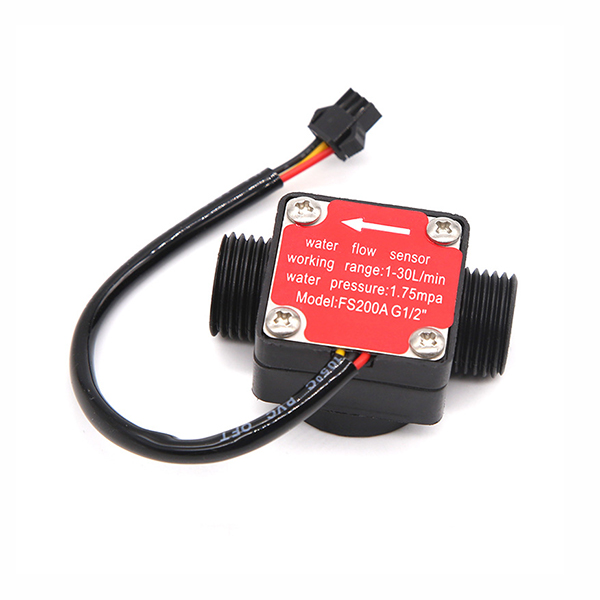

Water Heater Flow Sensor, 1~30 L/min

High-voltage-resistant water heater flow sensors for sale. With a G1/2'' standard interface design, the flow range covers 1~30 L/min, achieving measurement accuracy up to ±3% for precise detection of water usage status. This water flow sensor features a high-stability pulse output design internally, where pulse frequency is proportional to flow rate at approximately 486 pulses per liter. It is widely compatible with instantaneous, electric storage, and gas water heater systems.

Feature

• Wide Flow Range: The water heater flow sensor supports measurement across a broad range of 1–30 L/min with accuracy up to ±3%, precisely adapting to flow variations in both residential and commercial water heaters under diverse usage scenarios.
• High-Sensitivity Pulse Output: Utilizing a pulse output method, the frequency exhibits a linear relationship with flow rate. The output characteristic is F = 8.1 × Q, approximately 486 pulses per liter, delivering stable and consistent signals.
• Wide Voltage Supply: Supports DC 3.5–24 V input with a rated operating voltage of DC 5 V. Maximum operating current is only 15 mA, ensuring low power consumption and minimal heat generation.
• High-Temperature Resistant Material: Designed for long-term operation in water heater environments, the sensor is constructed from high-performance PPS material, offering excellent heat resistance and mechanical strength.

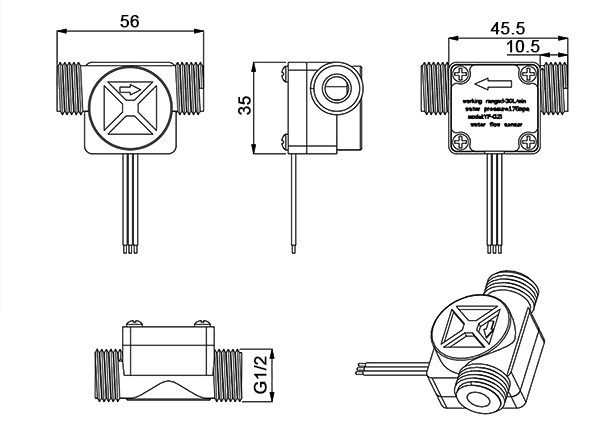

Dimension (unit: mm)

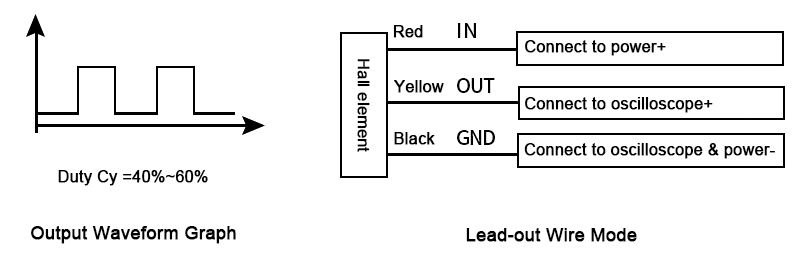

Wiring Diagram
