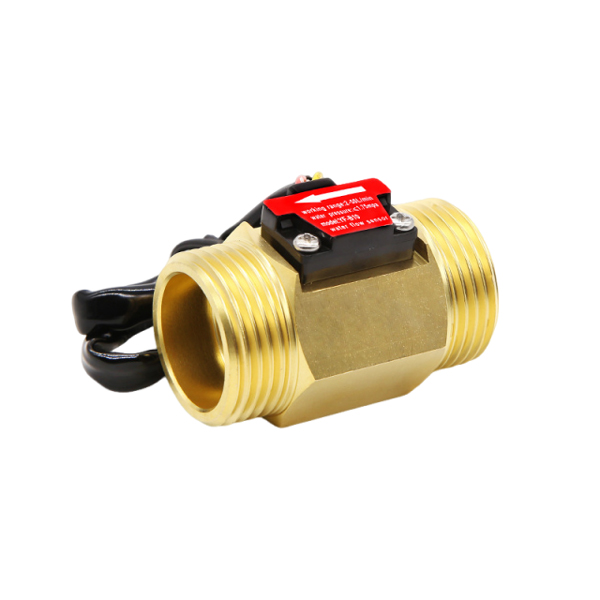

Brass Hall Effect Water Flow Sensor, 2~50 L/min

The Hall Effect water flow sensor features a valve body made of high-strength brass, specifically designed for monitoring small to medium flow rates in water circuits. It utilizes a standard G1 inch connection and covers a flow range of 2~50 L/min. Employing the proven Hall Effect measurement principle, this flow sensor converts water flow into stable pulse signals in real time as the internal rotor spins. It delivers long-term stable operation within a medium temperature range of −20 to 100 °C and is suitable for use with clean water free of impurities.

Feature

• Multi-scenario Applications: The Hall-effect water flow sensor supports flow detection from 2~50 L/min, making it suitable for both low-flow monitoring and continuous water supply systems with strong adaptability.
• Hall-Effect Measurement: Based on the Hall-effect principle, pulse frequency is directly proportional to flow rate, ensuring stable signals.
• Standard G1 Interface: Features a standard G1'' threaded connection for simple installation and high compatibility.
• Brass Valve Body Construction: The flow sensor's valve body is crafted from brass, withstanding pressures up to 1.75 MPa. Its robust structure ensures suitability for long-term operation in water systems.
• High Insulation Performance: Insulation resistance exceeds 100 MΩ, providing strong anti-interference capabilities. Ideal for continuous long-term operation, enhancing overall system reliability.

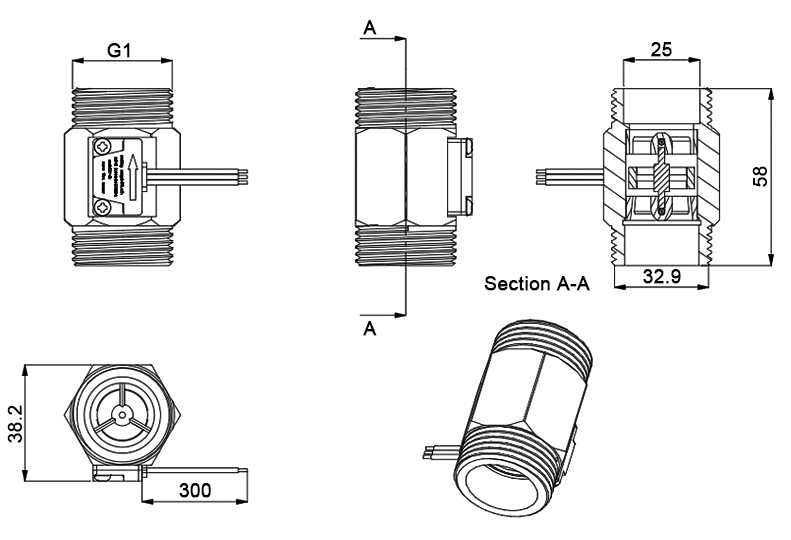

Dimension (unit: mm)

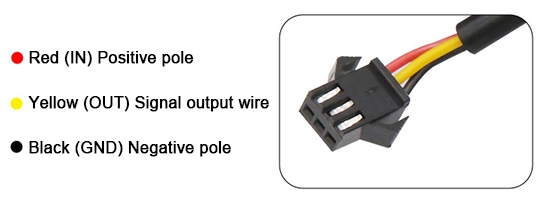

Wiring Diagram

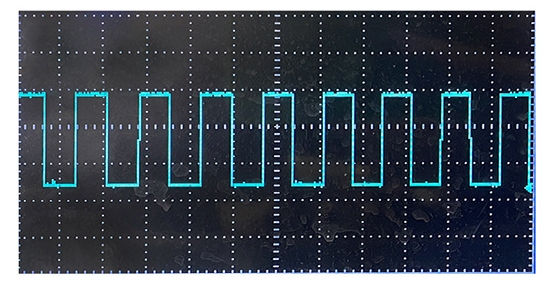

Output Waveform Diagram
