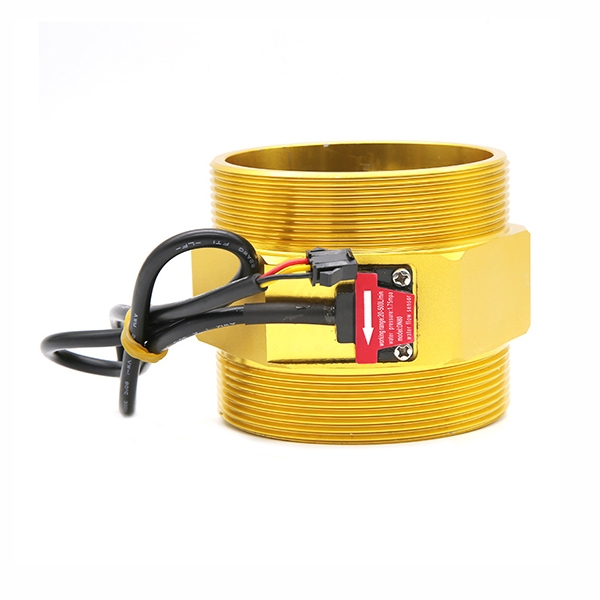

3 Inch Turbine Water Flow Sensor, 20~500 L/min

Affordable high-flow 3-inch turbine water flow sensor for sale, with a flow range covering 20–500 L/min. It reliably handles residential water supply, circulating water systems, and equipment integration applications. The turbine water flow sensor features a DN80 standard interface with a smooth internal flow path. As water flows, the turbine rotates and outputs pulse signals, enabling precise monitoring of instantaneous and cumulative flow rates.

Feature

• High-Flow Measurement Capability: Supports a wide flow range of 20–500 L/min, meeting demands for large-diameter water supply, circulating water, and industrial equipment applications with exceptional adaptability.
• DN80 Standard Interface: 3-inch port design features a large inner diameter and low flow resistance. Combined with horizontal installation, it ensures smooth turbine operation and enhanced measurement accuracy.
• Pulse Output Method: Pulse frequency is directly proportional to flow rate, with a 50% duty cycle output. This facilitates system counting and flow conversion, enabling simple and efficient data processing.
• Wide Voltage Supply: The SUCH turbine water flow sensor supports DC 3.5–24 V power supply, suitable for diverse power environments, reducing system design and maintenance costs.
• High Pressure Resistance: Withstands up to 1.75 MPa pressure. The entire unit undergoes high-pressure water sealing tests, ensuring no leakage during long-term operation for safety and reliability.
• Robust Valve Body Construction: Electroplated aluminum valve body combined with high insulation design offers exceptional durability, suitable for stable, long-term operation in clean water environments.

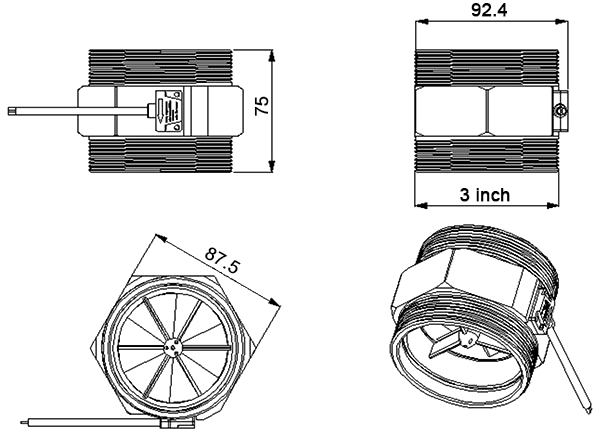

Dimension (unit: mm)

Wiring Diagram

Output Waveform Diagram
