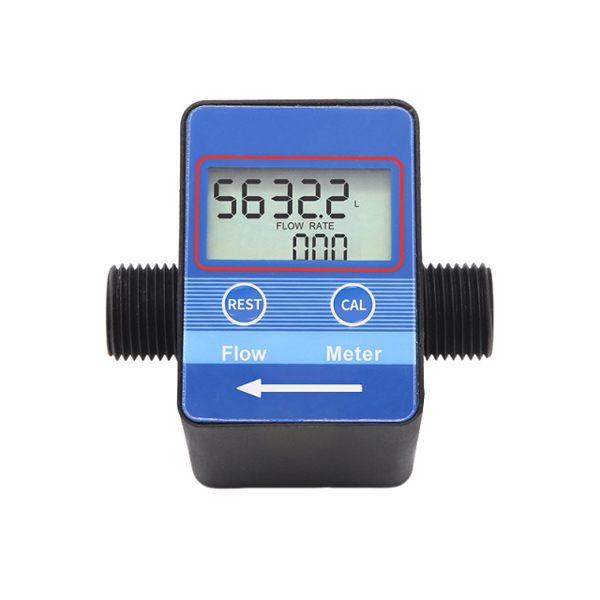

Smart Water Flow Sensor with Display, G1/2'', 5~600 L/H

The high-quality smart water flow sensor features a proven turbine measurement structure and digital panel display, providing real-time readings of both current and cumulative water usage for clear visibility of consumption data. The water flow sensor covers a flow range of 5~600 L/h and operates at a low voltage of DC 2.2–3.3 V, eliminating the need for complex external power supplies. The sensor outputs pulse signals for integration with controllers or smart modules. Its PPS material construction ensures pressure resistance and durability, enabling long-term stable operation across multiple scenarios.

Feature

• Integrated Display Design: The flow sensor incorporates a built-in digital display module, enabling direct reading of instantaneous flow rate and cumulative water consumption. This enhances the intuitiveness and convenience of household water management.
• Wide Flow Detection Range: The flow sensor covers 5–600 L/h, accommodating diverse household applications including daily water use, water purification systems, and water leakage detection.
• Precise Pulse Output: Emits standard pulse signals with frequency proportional to flow rate. Combined with ±5% measurement accuracy and ±0.5% repeatability, it ensures consistent data.
• Multi-Unit Display & Cumulative Functionality: The SUCH smart water flow sensor supports multiple measurement units, including L, GAL, PTS, and m³. It features both single-use and total cumulative counting, accommodating diverse usage habits and statistical requirements.

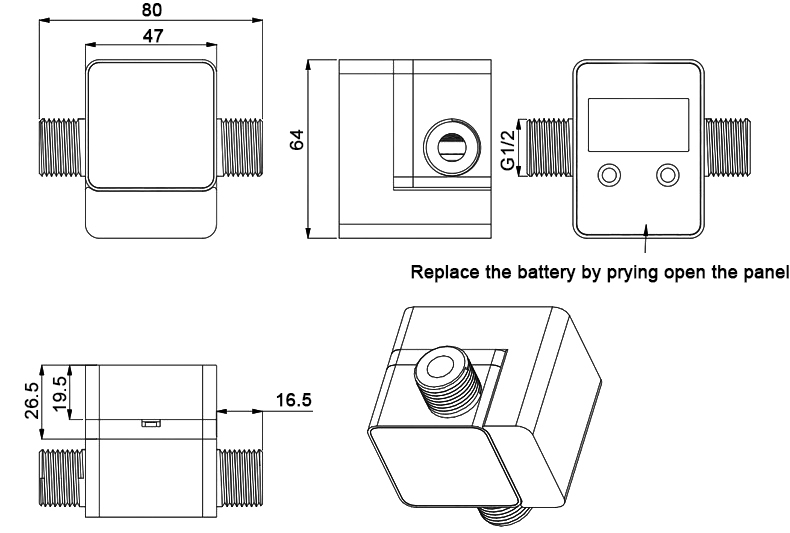

Dimension (unit: mm)

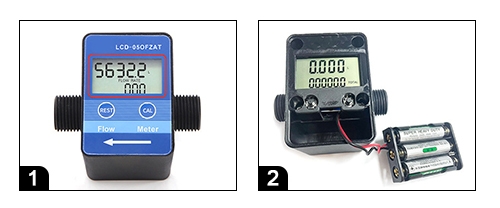

Detail

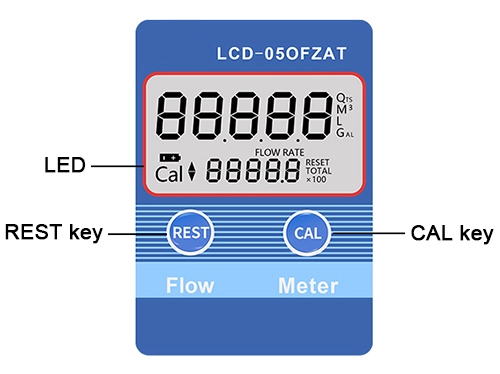

1. The display panel is clean and clear, intuitive and eye-catching, with simple operation and convenient control.
2. The internal movement allows for battery replacement by opening the panel. It uses standard #7 batteries.

Display
