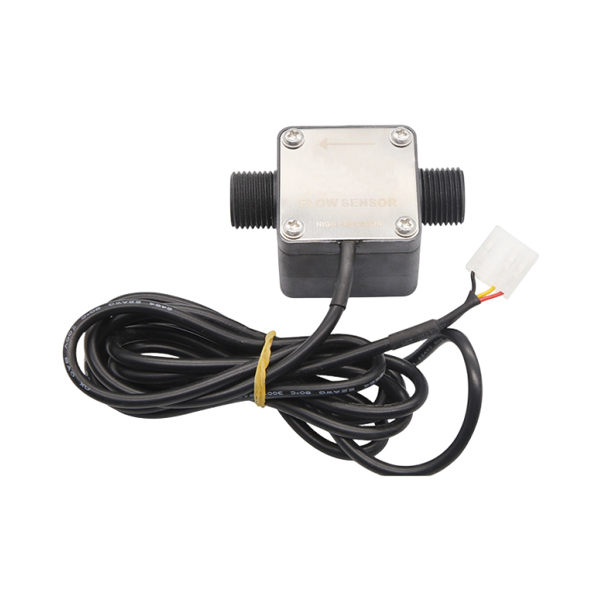

Liquid Flow Sensor, G1/2'', 30-1200 L/h

SUCH liquid flow sensors are designed for measuring medium to high-concentration liquids, with a flow range of 30–1200 L/h and stable performance in high-viscosity media such as oils, honey, and milk. Equipped with a standard G1/2-inch interface, they offer easy installation and strong compatibility with various piping systems. The flow sensor's optimized internal structure features a 10 mm inner diameter, ensuring smooth liquid passage, minimizing pressure loss, and maintaining reliable output during long-term operation.

Feature

• SUCH liquid flow sensors feature a wide measurement range, adapting to diverse flow rate scenarios. Whether for precise low-flow control or stable monitoring of medium-to-high flows, they deliver reliable output.
• Specifically engineered for measuring high-viscosity liquids like oils, honey, and milk, their internal channels ensure smooth flow and strong anti-adhesion properties.
• The liquid flow sensor employs a standard pulse output method: F = 2.5 × Q, 150 pulses/liter, enabling precise metering and automated control.
• The flow sensor valve body utilizes high-strength PPS material, withstanding pressures up to 1.0 MPa and operating temperatures from 0–80°C, while offering high insulation performance.

Dimension (unit: mm)

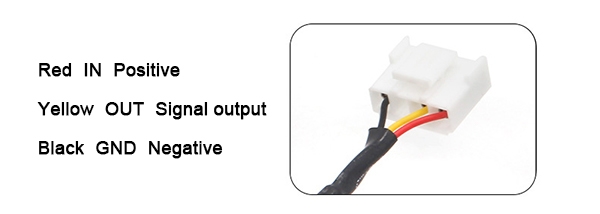

Wiring Diagram
