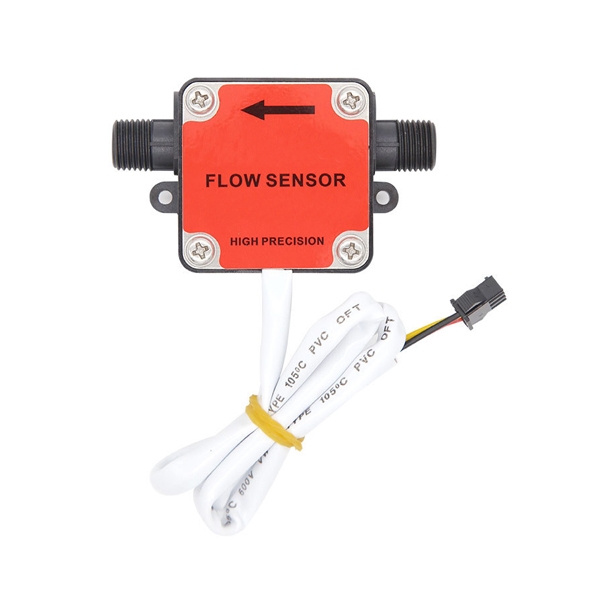

Gear Flow Sensor for Oil, 18-300 L/h, DN8/DN15/DN20

The SUCH-OF series gear flow sensors are suitable for oil applications, with a highly stable gear measurement structure. We offer multiple interface sizes including G1/4, G1/2, and G3/4, designed for DN8, DN15, and DN20 pipe diameters. Flow ranges cover 18–300 L/h, 30–1200 L/h, and 30–3000 L/h, enabling flexible adaptation to diverse flow-rate applications. The flow sensor's optimized inner/outer diameter and thread length design ensures secure installation and reliable sealing, minimizing system leakage risks.

Feature

• Available in DN8, DN15, and DN20 sizes, covering flow ranges from 18–3000 L/h. Supports G1/4, G1/2, and G3/4 threaded interfaces for seamless compatibility with diverse equipment and pipe diameters.
• Precision gear structure design ensures that the SUCH gear flow sensor's pulse output is proportional to flow rate, with a maximum error of ≤±3%. Clear high-level signals make it suitable for PLCs, controllers, and metering systems.
• The sensor valve body is made of high-strength PPS, enabling stable measurement of high-viscosity, high-concentration media such as oils, honey, and milk.
• Industrial-grade safety design: The flow sensor supports a wide 3.5–24 VDC input voltage range, featuring high insulation resistance and excellent anti-interference performance.

Dimension (unit: mm)

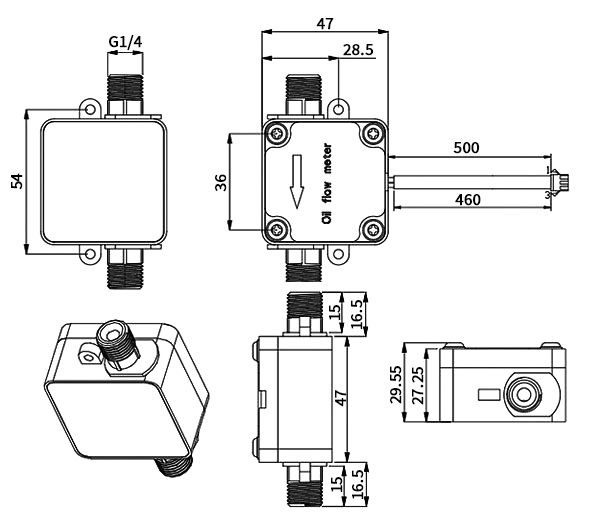

G1/4'' Dimension

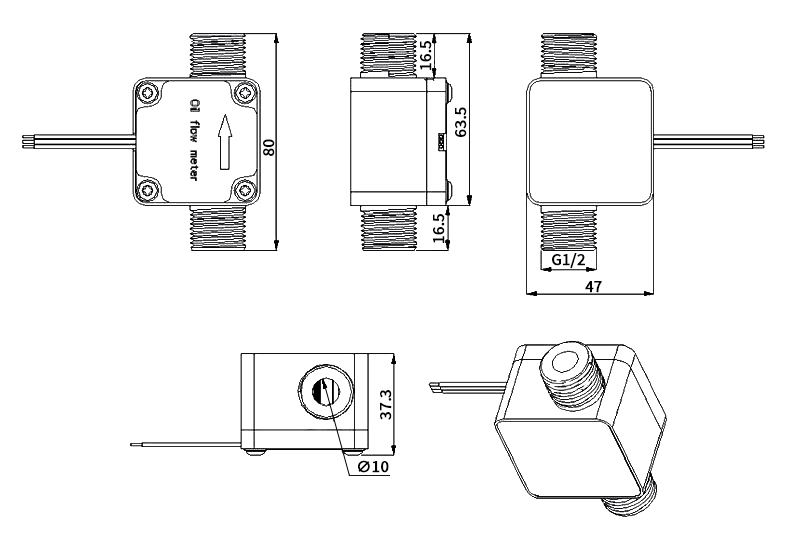

G1/2'' Dimension

G3/4'' Dimension

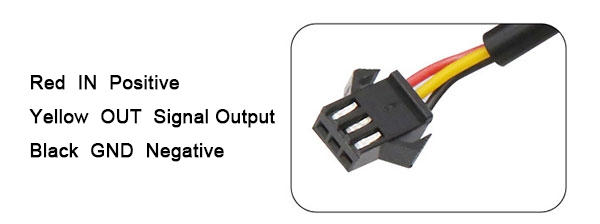

Wiring Diagram
