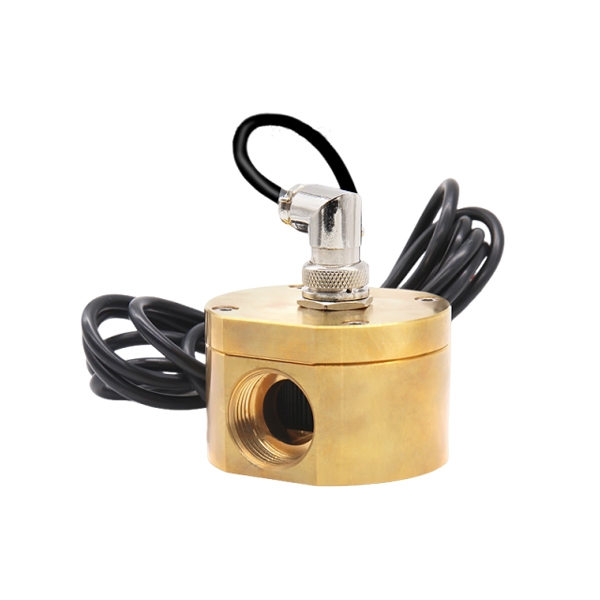

Oval Gear Flow Sensor for Oil, 30-3000 L/h

High-precision oval gear flow sensors for sale, designed with mature mechanical metering structures. The flow range spans 30–3000 L/h, achieving measurement accuracy up to ±2%. Features standard pulse output with clear high/low levels, where pulse signals are directly proportional to flow rate at 72 pulses per liter. The gear flow sensor incorporates a copper valve body structure with excellent pressure resistance, capable of withstanding up to 1.0 MPa. It adapts to diverse liquid transfer environments.

Feature

• The oval gear flow sensor offers a flow range of 30–3000 L/h, maintaining ±2% measurement accuracy across the entire range. It is suitable for continuous monitoring from low to medium-high flow rates.
• Featuring a standard pulse output of 72 pulses/liter, the frequency linearly corresponds to flow rate, enhancing system integration and control precision.
• The flow sensor supports a wide 5–24 VDC input voltage range, featuring low operating current and high load capacity. It ensures stable output while effectively reducing system energy consumption.
• The SUCH oval gear flow sensor employs a high-strength copper valve body structure, offering excellent pressure resistance, corrosion resistance, and wear resistance. It is suitable for long-term measurement of water and various liquid media.

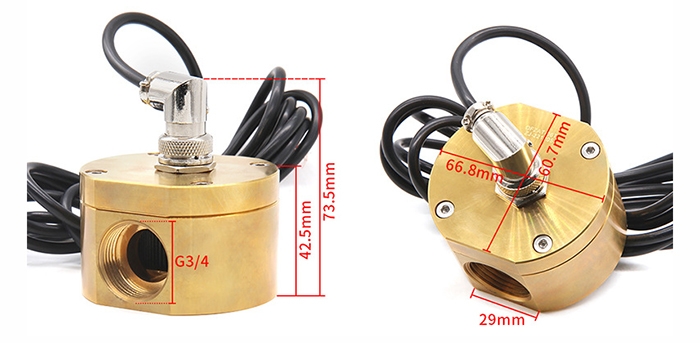

Dimension (unit: mm)

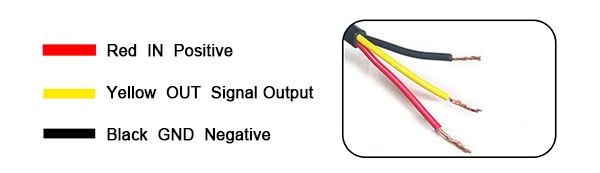

Wiring Diagram

Output Waveform Diagram
