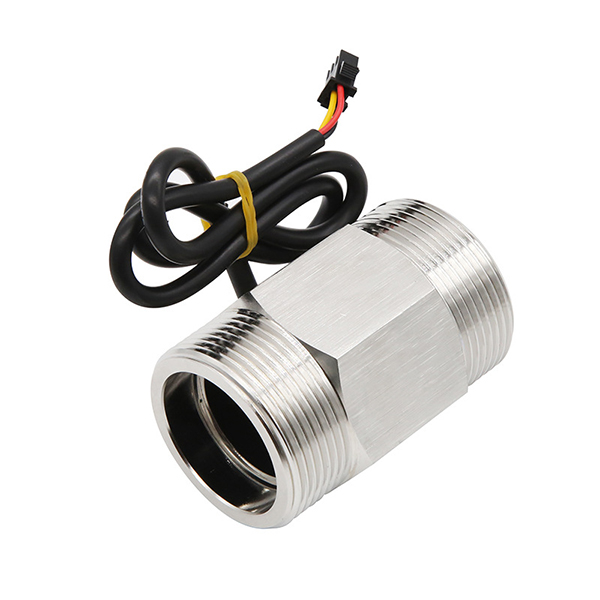

Stainless Steel Flow Sensor, 5-150 L/min, 10~200 L/min

The stainless steel flow sensor offers two flow range options: 5–150 L/min and 10–200 L/min. It supports DN40 and DN50 connection specifications, making it compatible with various piping systems. The flow sensor delivers highly stable pulse signals with a clear pulse coefficient, maintaining error control within ±5%. Constructed from high-quality stainless steel, the valve body offers excellent corrosion resistance and mechanical strength, ensuring long-term stable operation within a medium temperature range of −20 to 100°C. It is suitable for clean water applications.

Feature

• Wide flow coverage supports DN40 and DN50 interface specifications. The optimized inner diameter design effectively reduces flow resistance, meeting stable flow measurement requirements for industrial and equipment applications.
• The flow sensor delivers highly stable pulse signals with a clear pulse coefficient, maintaining error control within ±5%. This enables precise measurement at approximately 27 or 12 pulses per liter.
• Constructed from high-quality stainless steel, the SUCH flow sensor offers excellent corrosion resistance and mechanical strength, making it suitable for applications demanding high reliability.
• Supports a wide 3.5–24 VDC power supply range, with insulation resistance exceeding 100 MΩ. Clear pulse high/low levels and simple installation wiring enable rapid integration into various control systems.

Dimension (unit: mm)

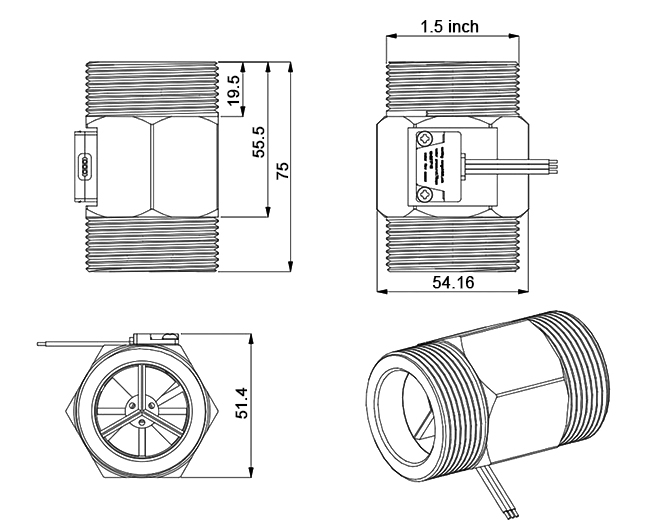

DN40 Dimension

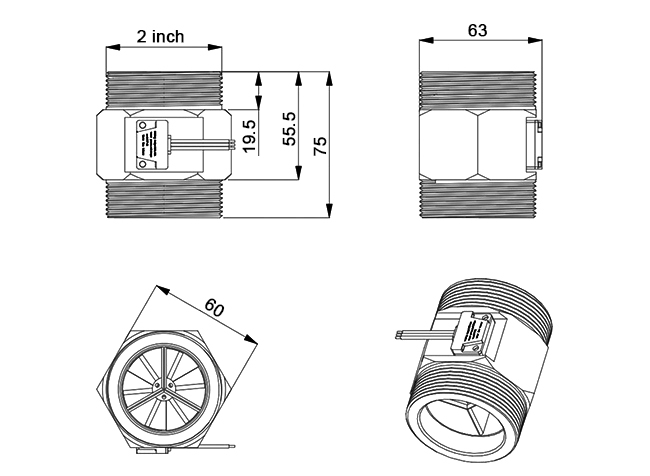

DN50 Dimension

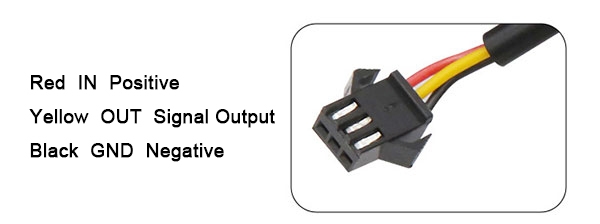

Wiring Diagram
