Potable Water Flow Sensor, 1-25 L/min

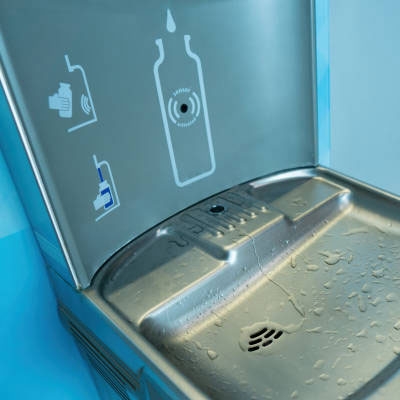

The high-quality potable water flow sensor is specifically designed for clean water media, with a measurement range of 1–25 L/min, enabling precise response to daily water flow variations. The water flow sensor features a G1/2'' standard connection with an inner diameter of 19.3 mm, effectively reducing flow resistance to ensure smooth water flow. The aluminum alloy valve body offers robust durability with a pressure rating up to 1.75 MPa, making it suitable for water purification systems, water dispensers, water heaters, and smart water control systems.

Feature

• The potable water flow sensor supports a wide flow range of 1–25 L/min, enabling stable measurement from low-flow drinking water to medium-flow water supply.
• High-precision pulse output with a pulse ratio of F = 11 × Q (660 pulses/liter), featuring a measurement error of ≤3%.
• Wide voltage supply design accommodates 3.5–24 VDC input, easily adapting to diverse power solutions and control systems. High pressure and temperature-resistant construction withstands water pressure up to 1.75 MPa and medium temperatures from −20 to 100 °C, ensuring stable operation even during frequent hot/cold water switching or high-pressure supply conditions.
• The SUCH potable water flow sensor features an aluminum alloy valve body with optimized inner and outer diameters for smooth flow channels, suitable for potable water media free of impurities.

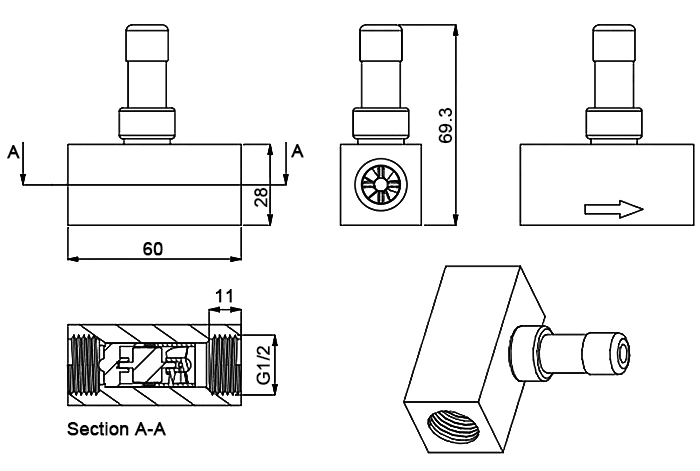

Dimension (unit: mm)
