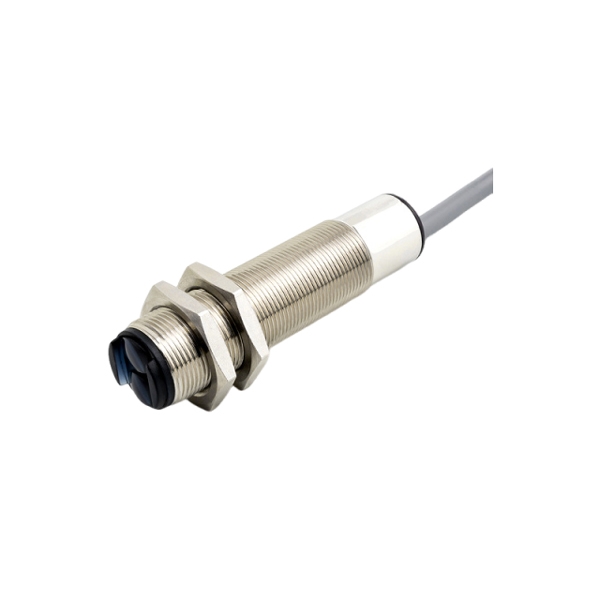

M18 Photoelectric Sensor, 50-300mm/80-500mm/200-1000mm

SUCH m18 photoelectric sensors feature 940nm/850nm infrared light sources with adjustable detection distances of 300mm/800mm/500mm/1000mm. The photo sensor utilizes a nickel-plated copper metal housing with an M12 four-pin industrial connector for easy installation, oil resistance, and shockproof performance. It supports selectable NPN/PNP output modes, ensuring stable detection on high-speed production lines.

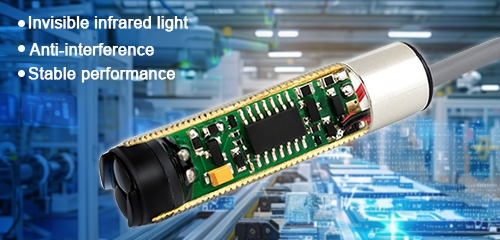

Feature

• The M18 photoelectric sensor features adjustable detection performance with multiple ranges to accommodate various detection distance requirements.
• The photo sensor's nickel-plated copper metal housing ensures robust construction with IP66 protection rating, while incorporating short-circuit and overload protection for long-term reliable operation.
• The M12 four-pin connector design enables easy installation. Combined with <5% repeatability accuracy and minimal temperature drift, it delivers stable detection in fast-paced industrial environments.

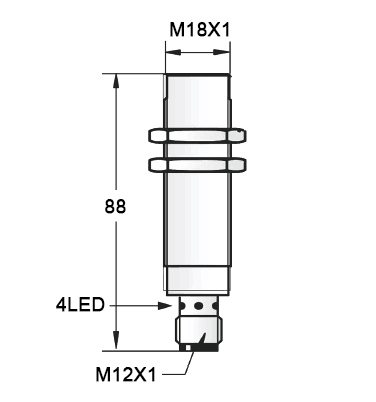

Dimension (unit: mm)

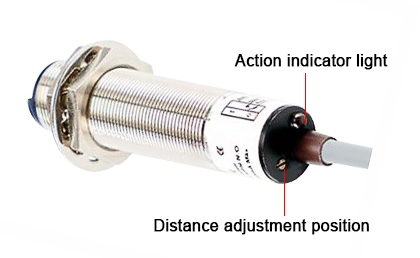

Detail

User Guide

1. NO represents normally open, NC represents normally closed.
2. NPN: Common positive voltage, outputting negative voltage. PNP represents common negative voltage, outputting positive voltage.
3. NPN NO: Normally open, when an object is detected, the black wire outputs a negative voltage signal.
4. NPN NC: A normally closed state where the black wire outputs a negative voltage signal. When an object is detected, the output signal is interrupted.
5. PNP NO: Represents a normally open state where the black wire outputs a positive voltage signal when an object is detected.
6. PNP NC: A normally closed state where the black wire outputs a positive voltage signal. When an object is detected, the output signal is interrupted.
