Photoelectric Light Curtain, 8/12/16/20/24 Beam

0 review(s) | Add your review

SKU: SUCH-SLC-AY50RC

$627.46

● 8/12/16/20/24 beam optional ● Beam spacing 20mm/40mm ● Detection accuracy 30mm/50mm ● Protection rating IP55

Distance of Optical Axis *
Number of Beams *
Number of Beams *
Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Affordable price light curtain with photoelectric protection for sale. SUCH safety light curtain sensor equipped with a photoelectric protector operates on AC 110-220V power, and has a maximum output current of 100mA. The optical axis spacing is 20mm/40mm, the detection accuracy is 30mm/50mm, and the protection rating is IP55. The safety light curtain can operate from -10℃~ 55℃, with a fast response time of <20ms and an operating current of <200mA. The photoelectric light curtain has strong resistance to electromagnetic and optical interference, is easy to install and operate, and can be used on large mechanical equipment such as punch presses, shearing machines, and bending machines.

Feature

Thickened Design: The aluminum alloy shell is waterproof and dustproof, sturdy and thick, shockproof and impact-resistant.
Sealed Design: The sealed cover features an encrypted design, and the shell is reinforced with adhesive for enhanced protection, ensuring safer use.
High-Performance Chip: The safety light curtain uses a high-performance chip, offering sensitive response, stable performance, and a long service life.

Dimension (Unit:mm)

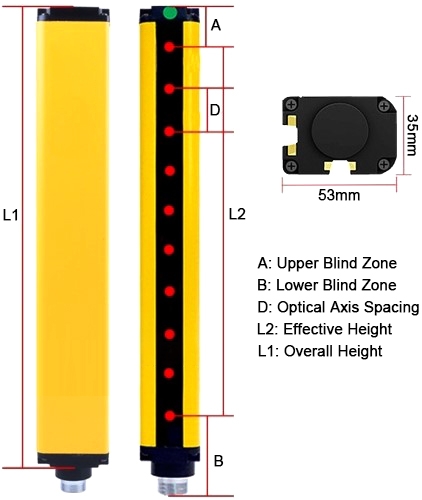

Size of photoelectric light curtain

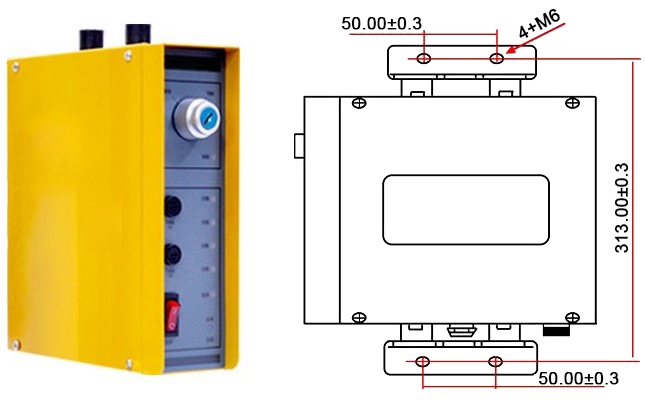

Photoelectric protector size of photoelectric light curtain

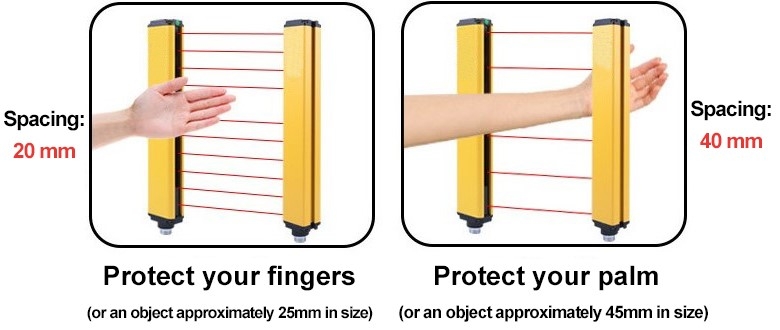

Difference between pitch 20mm and 40mm

Difference of photoelectric light curtain spacing distance

Wiring

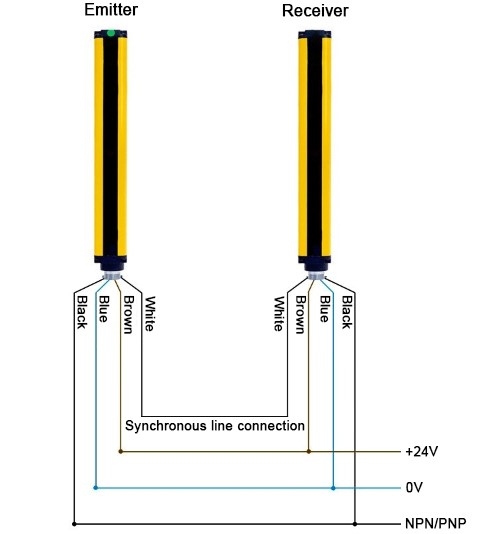

Wiring of photoelectric light curtain

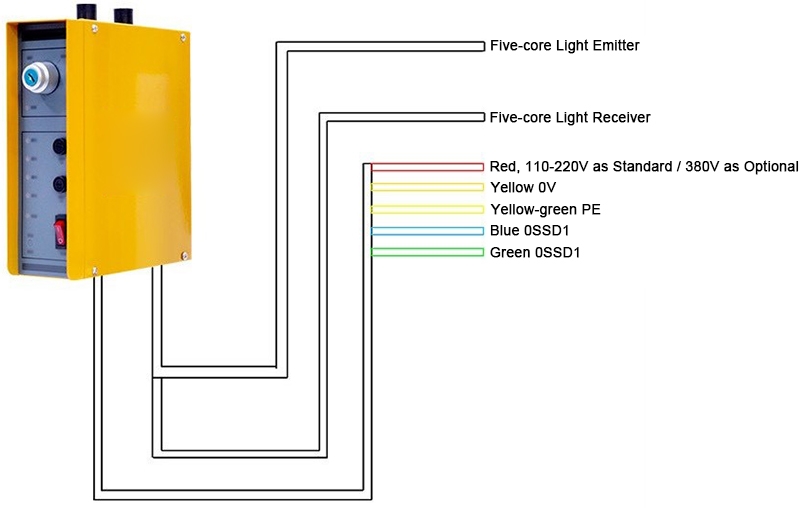

Photoelectric protector wiring of photoelectric light curtain

Specs

Optical Axis Distance	20mm, 40mm
Detect Precision	30mm, 50mm
Protection Length	0.2-6m
Protection Height	(Number of beams - 1) * optical axis spacing
Operating Voltage	AC 110-220V (controller)
Operating Current	<200mA
Loading Current	<200mA
Response Time	<20ms
Protection Level	IP55
Diagnostic Coverage/DC	>99%
Operating Temperature	-10°C~+55°C
Environment Humidity	20°C, RH<85% (no condensation)
Mean Time Between Dangerous Failures	120a
Anti-light Interference	10000Lux incident angle >5°
Anti-vibration	Frequency: 10~55Hz, Amplitude: 0.35mm
Impact Resistance	15g, 16ms, X, Y, Z axes, 1000 cycles per axis

Application

Product Testing

Hazard Protection

Human Protection

FAQ

Q1: Is a light curtain a machine guard? ❯

Yes. A light curtain sensor is a type of machine guard because it creates a non-physical barrier that stops the machine when the beams are broken.

Q2: How to maintain a light curtain? ❯

To maintain a safety light curtain, keep the sensor clean, check that the emitter and receiver stay properly aligned, inspect cables and mounting brackets for damage, and regularly test the stop response to make sure it activates correctly when a beam is blocked.

Q3: Why are safety light curtains needed in industrial production? ❯

Industrial production involves high-speed, powerful, and dangerous moving parts. Safety light curtain sensors can immediately stop the press when any beam is blocked, preventing hand injuries and providing necessary protection for operators.
