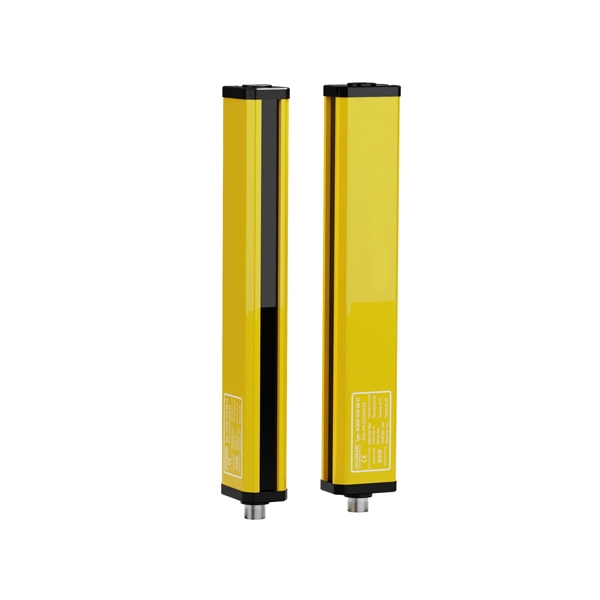

Machine Guarding Light Curtain, 4-52 Beam, NPN/PNP

0 review(s) | Add your review

SKU: SUCH-SLC-HLW50

$121.85

● Optical axis spacing 20/40mm ● Number of beams 4-52 ● Output mode NPN/PNP ● Detection distance 3/9/18 m

Distance of Optical Axis *
Number of Beams *
Number of Beams *
Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Cheap price machine guarding light curtains are available with optical axis distances of 20mm/40mm, a detection distance of 3m, a response time of ≤10ms, and 4-52 beams. SUCH through-beam safety light curtains feature a thickened aluminum shell design and nickel-plated copper pin aviation connectors, making them sturdy, durable, shock-resistant, drop-resistant, and highly resistant to interference.

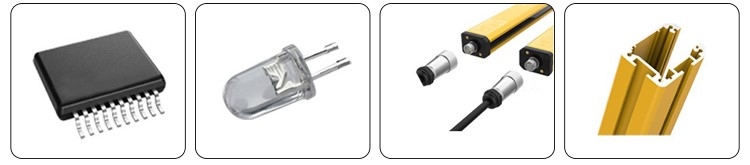

Feature

Industrial-grade chips ensure precise detection and millisecond-level response times.
Machine guarding safety light curtain features highly interference-resistant LEDs and exceptional durability.
Thickened aluminum shell provides robust durability, shock and drop resistance, and excellent protection.
Nickel-plated copper pins for aviation-grade connectors ensure secure insertion and removal, prevent loosening, and resist rust.

Machine guarding light curtain feature

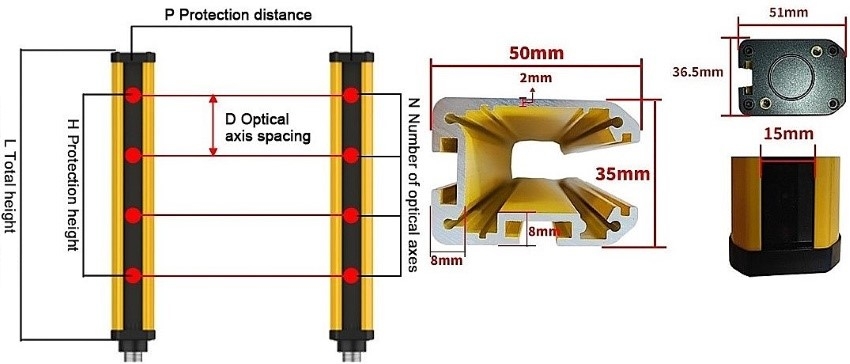

Dimension (Unit:mm)

Machine guarding light curtain size

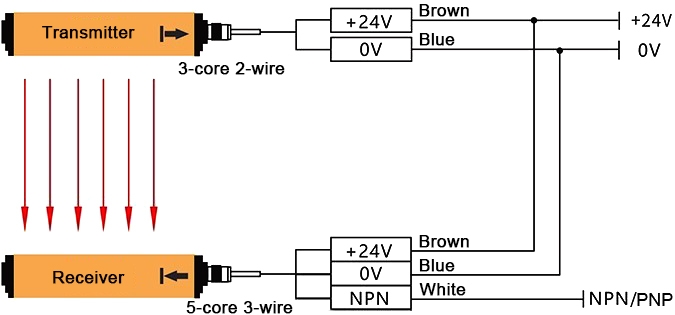

Wiring

Machine guarding light curtain wiring

Specs

Optical Axis Distance	20mm/40mm
Number of Beams	4~52 beam
Detection Height	100~1020mm
Detection Distance	Default 3m (If you require other detection distances, please contact us.)
Output Method	NPN/PNP Optional
Interference Resistance	10000Lux (incident angle ≤5°)
Connection Method	GX16, 3-pin, 5-pin
Dielectric Strength	AC1500V.60S
Protection Circuit	Reverse connection protection, output short circuit protection
Insulation Resistance	>100MΩ
Operating Voltage	DC12V or DC24V
Operating Temperature	-20℃~70℃
Storage Temperature	-20℃~80℃
Storage Humidity	RH≤95%
Response Time	≤10ms
Voltage Range	10V~30V
Power Consumption	≤5W
Electrical Life	≥120,000 hours
Cross-section Dimensions	35*50mm
Light Curtain Type	Through-beam type
Outer Material	Aluminum alloy

Application

Stamping Machine Protection

Assembly Line Protection

Die Casting Machine Protection

FAQ

Q1: Are light curtains considered machine guarding? ❯

Yes. Safety light curtains are classified as a type of machine guarding because they protect workers from hazardous machine motions by creating a non-contact protective field. When any object interrupts the infrared beams, the light curtain sends a stop signal to the machine, preventing injury.

Q2: Why is a machine guarding light curtain better than traditional mechanical guards? ❯

The machine guarding light curtain offers non-contact protection, higher speed, flexibility, and better operator convenience—making it a preferred solution in modern machine safety applications.

Q3: What is the typical response time of an industrial safety light curtain? ❯

Most machine guarding safety light curtains have a fast response time of 10–20 ms, helping ensure quick machine stopping distance.
