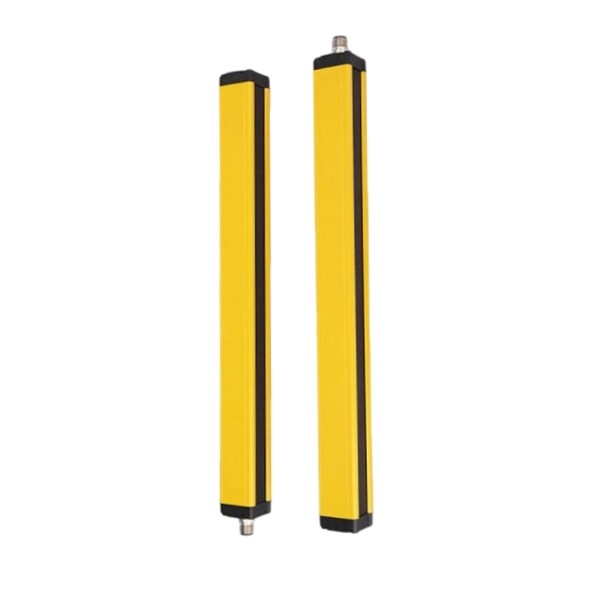

Through Beam Safety Light Curtain, 6-32 Beam, NPN/PNP

0 review(s) | Add your review

SKU: SUCH-SLC-QC

$319.23

● 6-32 beam optional ● Beam spacing 10-40mm ● NPN/PNP output optional ● Protection level IP65

Distance of Optical Axis *
Number of Beams *
Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

A high-quality safety light curtain consists of a transmitter and a receiver, capable of detecting opaque objects exceeding the detection precision entering the light curtain area. SUCH safety light curtain sensors offer selectable optical axis spacing of 10/14/20/25/30/40mm and a choice of 6-32 beams. The detection light source is an infrared LED, with a response time of less than 15ms. Safety light curtains feature short response time, strong anti-interference capabilities, excellent shock resistance, long protection length, high versatility, and convenient installation and debugging. Light curtains are suitable for potentially hazardous equipment and areas such as stamping, shearing, and injection molding processes.

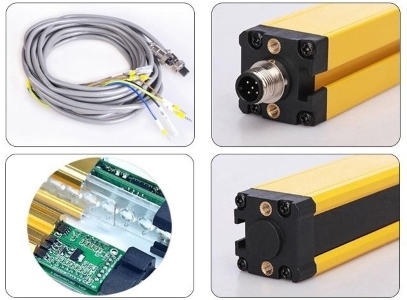

Feature

Aluminum Alloy Housing: The safety light curtain features a recessed back design, allowing for flexible installation depending on the environment. The aluminum alloy housing is robust and durable.
Anti-interference Chip: Utilizing carefully selected SMT chips, it offers high sensitivity, anti-interference capabilities, false alarm prevention, and stable operation.
Shielded Data Cable: The safety light curtain sensor's data cable is waterproof, oil-proof, and shielded, maintaining operational stability even in harsh environments.

Safety light curtain feature

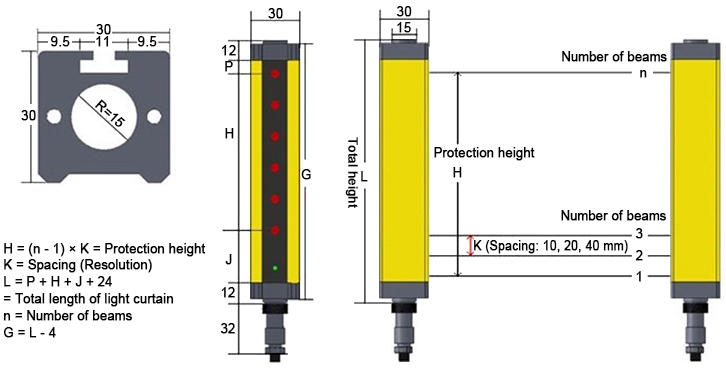

Dimension (Unit:mm)

Safety light curtain size

K (mm)	P (mm)	J (mm)
10	5	32
14	7	32
20	10	25
25	12.5	25
30	15	25
40	20	25

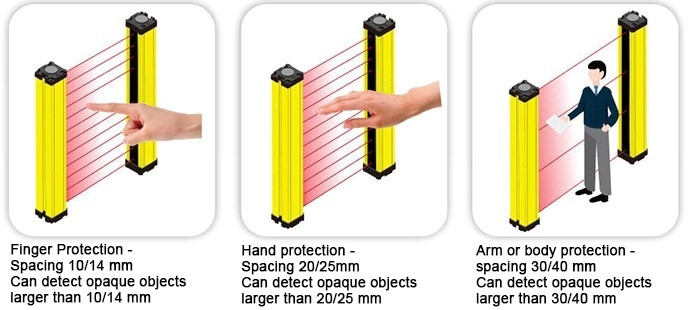

Different distances of the optical axis

Difference of safety light curtain spacing

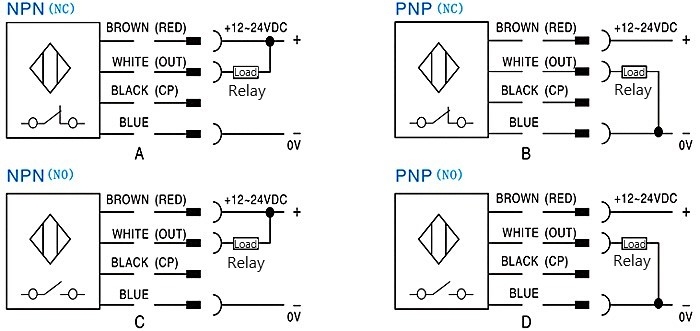

Output signal

Safety light curtain output signal

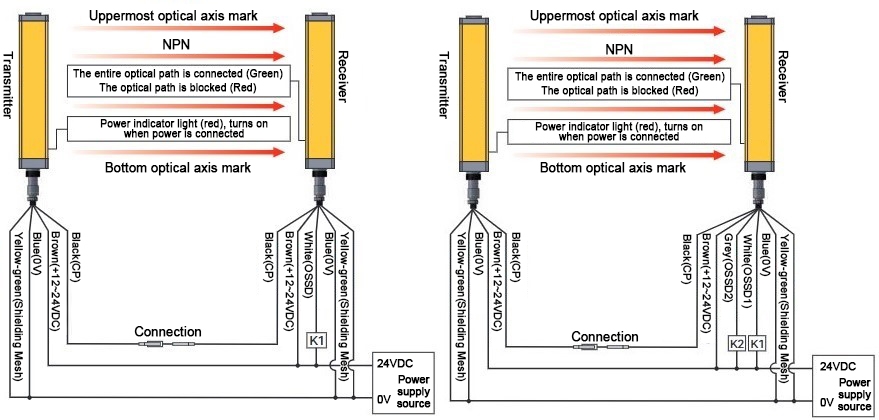

Wiring

Wiring of safety light curtain

Specs

Light Curtain Mode	Opposite
Protection Height (H)	K*(beam number-1)
Detection Length	30~3000mm or 30~6000mm
Size	3030J mm (J is the length of the optical transmitter/optical receiver)
Response Time	≤15ms
Anti-light Interference	10000Lux (angle of incidence≥5°)
Protection Class	IP65
Power Supply	DC 12/24V (default), AC 110-220V (please contact us)
Consumption Current	≤200mA
Output	NPN/PNP, input current 500mA, voltage drop≤1.5V, reverse polarity, short-circuit, overload protection.
Output Status	All the optical axis are receiving (show green)
Indicator Light	Light emitter: Power supply indicator is red. Light receiver: Output indicator is green (through), output indicator is red (block).
Light Source	Special infrared LED
Connection Mode	Circular air outlet with a special connection cable, 4-core wire for light emitter, 5-core wire for light receiver.
Housing Material	Shell: Aluminum alloy End cover: ABS
Resistant to Ambient Light	Natural light: Receiving surface 3000Lx Sunlight: Receiving surface 10000Lx
Ambient Temperature	Operating: -10℃~40℃ (do not freeze) Storage: -25℃~55℃
environment Humidity	Operating: 35-85%RH Storage: 35~95%RH
Certificate	TUV, CE, RoHs, ISO9001: 2015

Optical Axis Spacing	Detection Accuracy	Number of Beams
10mm	18mm	6, 8, 10~32
14mm	22mm	6, 8, 10~32
20mm	28mm	6, 8, 10~32
25mm	33mm	6, 8, 10~32
30mm	38mm	6, 8, 10~32
40mm	48mm	6, 8, 10~32

Application

Product Testing

Hazard Protection

Human Protection

FAQ

Q1: What are some common issues with safety light curtains? ❯

Common issues with safety light curtains include dirty or obstructed lenses, misaligned beams, damaged cables, electromagnetic interference, vibration-causing movement, and self-diagnostic failures.

Q2: How does a light curtain compare to other safety devices? ❯

Unlike physical protective shields (which can obstruct passage) or emergency stop buttons (which require manual operation), light curtains offer contactless protection, rapid response, and flexible coverage. They are more convenient, detect faults in real time, and do not restrict the workspace.

Q3: How to inspect a safety light curtain? ❯

Inspect and clean the lens, confirm transmitter and receiver alignment, check wiring and mounting brackets, and perform a functional test by interrupting the beam to confirm the machine stops correctly.
