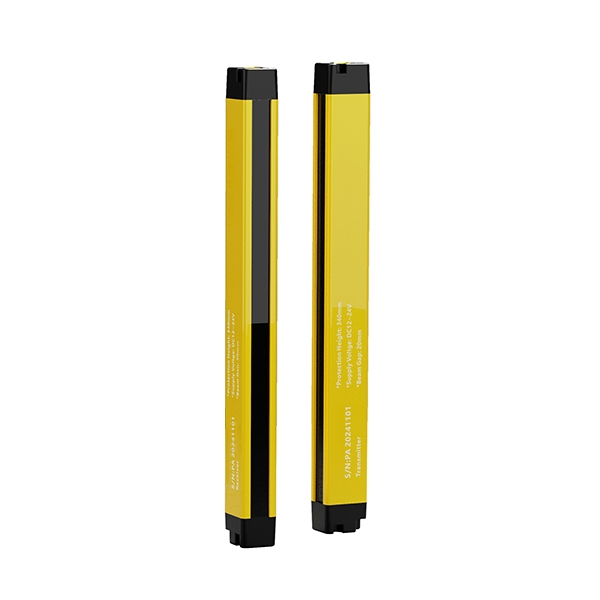

Mini Safety Light Curtain, 4/6/12/16/18 Beam

0 review(s) | Add your review

SKU: SUCH-SLC-HLW15

$112.09

● Optical axis spacing 20mm ● 4-18 beams optional ● 60-340mm detection height ● 0.1-2.5m detection distance

Number of Beams *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The high-performance mini safety light curtain detects objects passing through in real time with a response time of 10ms. The SUCH safety light curtain is small in size, has a long lifespan, a detection distance of 0.1~2.5 meters, and an optical axis spacing of 20mm. The mini safety light curtain sensor uses a DC 12/24V power supply, is made of aluminum alloy, and can operate within a temperature range of -20℃ to 70℃. It has strong anti-interference capabilities and is suitable for various complex working conditions.

Feature

Small Size: The aluminum alloy shell is robust and durable. The ultra-small cross-sectional area minimizes the working blind zone and facilitates installation.
Fast Response: The safety light curtain sensor uses industrial-grade chips with a response speed of ≤10ms, ensuring production safety at all times.
High Quality: High-quality LEDs ensure stable infrared transmission and reception, extending the lifespan of the mini safety light curtain.

Dimension (Unit:mm)

Mini light curtain dimension

Number of optical axes	H	D	P	L
4	60mm	20mm	2.5m	109mm
6	100mm	20mm	2.5m	149mm
8	140mm	20mm	2.5m	189mm
10	180mm	20mm	2.5m	229mm
12	220mm	20mm	2.5m	269mm
14	260mm	20mm	2.5m	309mm
16	300mm	20mm	2.5m	349mm
18	340mm	20mm	2.5m	389mm

Wiring

Mini light curtain wiring

Specs

Optical Axis Distance	20mm
Number of Beams	4~18 beams
Detection Height	60mm~340mm
Detection Distance	60mm~340mm
Output Method	Default NPN normally closed (please contact us if other output methods are required)
Interference Resistance	10000Lux (incident angle ≤5℃)
Operating Voltage	DC12V/DC24V
Operating Temperature	-20℃~70℃
Connection Method	M8, 2-pin, 3-pin
Dielectric Strength	AC1500V.60S
Insulation Resistance	>100MΩ
Storage Temperature	>100MΩ
Storage Humidity	RH≤95%
Response Time	≤10ms
Voltage Range	10V~30V
Power Consumption	≤5W
Electrical Life	≥120,000 hours
Cross-section Size	12*15mm
Light Curtain Type	Through-beam type
Outer Material	Aluminum alloy

Application

Stamping Machine Protection

Assembly Line Protection

Die Casting Machine Protection

FAQ

Q1: What is a mini safety light curtain? ❯

A mini safety light curtain is a compact safety device designed for small machines or tight installation spaces, providing finger or hand protection.

Q2: What is the advantage of a mini light curtain? ❯

The ultra-thin size of the mini safety light curtain sensor allows it to be installed in confined spaces while still providing fast and reliable safety protection.

Q3: Where are mini safety light curtains used? ❯

Mini safety light curtains are commonly used in small assembly machines, lab equipment, electronics manufacturing, pick-and-place systems, and compact automation stations.
