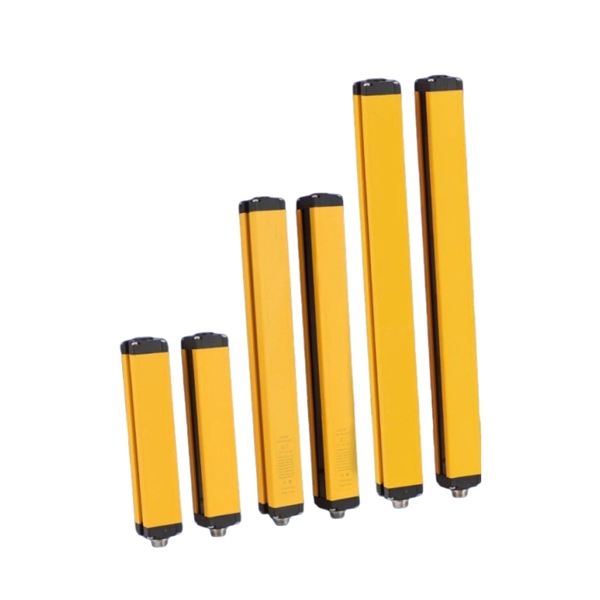

Light Curtain Sensor, 4/8/10/16/18/22 Beam

0 review(s) | Add your review

SKU: SUCH-SLC-SCT

$124.46

● Number of beams 4-22 ● Optical axis spacing 20/40mm ● Operating voltage DC24V±10% ● Response time ≤10 ms

Distance of Optical Axis *
Number of Beams *
Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Buy a light curtain sensor online. The SUCH light curtain sensor is a professional industrial protection device that uses infrared beams and features reverse connection protection/output short circuit protection, making it an ideal choice for industrial safety. The safety light curtain sensor offers optional optical axis spacing of 20mm/40mm, 4-22 beams, a response time ≤10 ms, and operates at DC 24V.

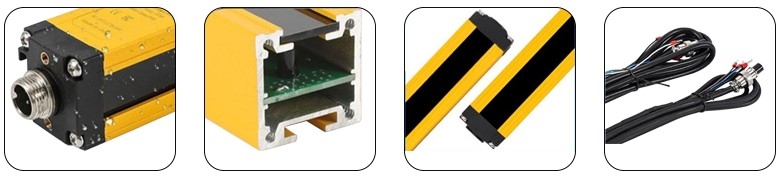

Feature

Thickened Housing: High-protection premium aluminum alloy housing with excellent sealing and thickened construction for shock and drop resistance.
Industrial-Grade Precision: The light curtain features a built-in anti-interference chip, ensuring ultra-high detection accuracy and reducing erroneous responses.
High-Transmittance Lens: The light curtain sensor is made of high-quality light-transmitting material, providing clear light transmission, stable device performance, and a long lifespan.

Light curtain sensor feature

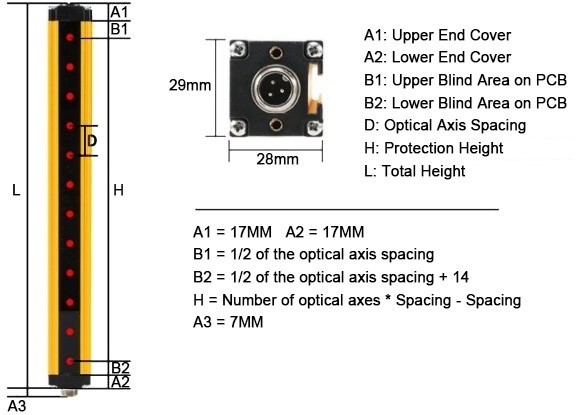

Dimension (Unit:mm)

Light curtain sensor size

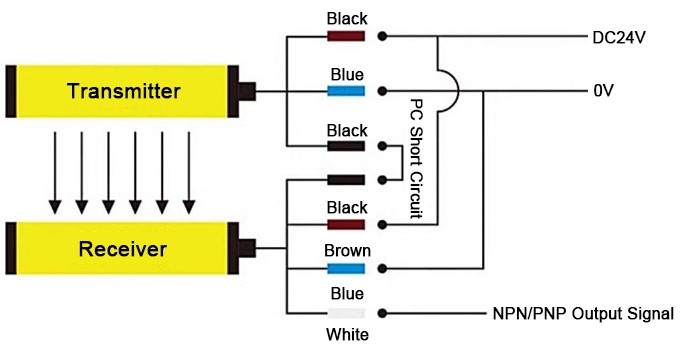

Wiring

Light curtain sensor wiring

Specs

Number of Beams	4-22
Optical Axis Spacing	20mm/40mm
Detection Height	60-840mm
Detection Distance	0-3m
Operating Voltage	DC24V±10%
Power Consumption	5W
Output Method	NPN/PNP
Response Time	≤10ms
Content	Aluminum alloy
Light Curtain Type	Through-beam type
Insulation Resistance	>100MΩ
Interference Immunity	10000Lux
Connection Method	M16, M12, 3-pin, 4-pin
Protection Circuit	Reverse connection protection/output short circuit protection
Dielectric Strength	AC1500B. 60S
Operating Temperature	-15℃~65℃
Storage Temperature	-25℃~75℃
Ambient Temperature	-10℃~55℃
Product Color	Yellow

Application

Stamping Machine Protection

Assembly Line Protection

Die Casting Machine Protection

FAQ

Q1: What are the uses of the light curtain? ❯

Light curtain sensors are used for machine safety and object detection. They protect operators from hazardous machinery and are also used for sizing, positioning, and presence detection in automated systems.

Q2: How does a light curtain sensor work? ❯

A safety light curtain sends multiple infrared beams from an emitter to a receiver. When any beam is blocked by a hand, object, or part, the system detects the interruption and sends a signal—either to stop a machine or to perform a detection task.

Q3: What is the detection capability of a light curtain sensor? ❯

Detection capability depends on the resolution. The light curtain can detect objects as small as a finger (high-resolution), a hand, or even a full body presence.
