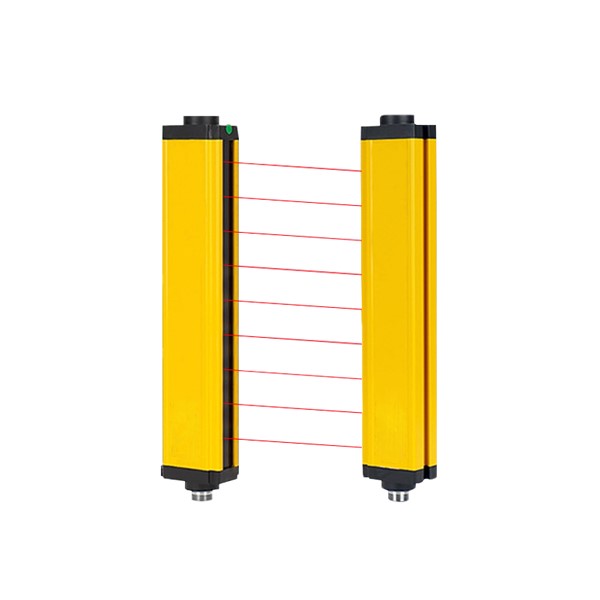

    Picture of Industrial Light Curtain, 8/12/16 to 24 Beam Picture of Industrial Light Curtain, 8/12/16 to 24 Beam

    Industrial Light Curtain, 8/12/16 to 24 Beam

    0 review(s) | Add your review
    SKU: SUCH-SLC-AY50NC
    $280.92
    ● Machine guarding safety light curtain ● Fast response operator protection ● Adjustable beam spacing and detection height ● NPN/PNP output for PLC integration
    *
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Industrial light curtain is a safety light curtain sensor for machine guarding and hazardous area protection. It offers 8/12/16/20/24 beams, 20mm or 40mm beam spacing, 30mm or 50mm detection accuracy, NPN/PNP output, <20ms response time, and IP55 protection. It is suitable for automation engineers, machine builders, and factory safety teams, and can be used on production equipment, packaging lines, stamping machines, and automated workstations.

    Feature

    • Rapid Detection Response: Utilizing industrial-grade chips, the detection accuracy is high, the response time is fast, and operational safety is ensured.
    • Strong Environmental Adaptability: The industrial light curtain sensor has an IP55 protection rating, resisting light interference, vibration, and impact, making it suitable for most environments.
    • High Safety and Reliability: The sealing cover features a secure design, making it shockproof, impact-resistant, durable, stable in performance, and long in service life.

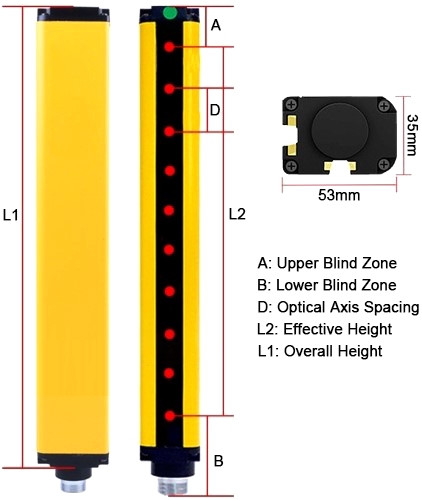

    Dimension (Unit:mm)

    Size of industrial light curtain

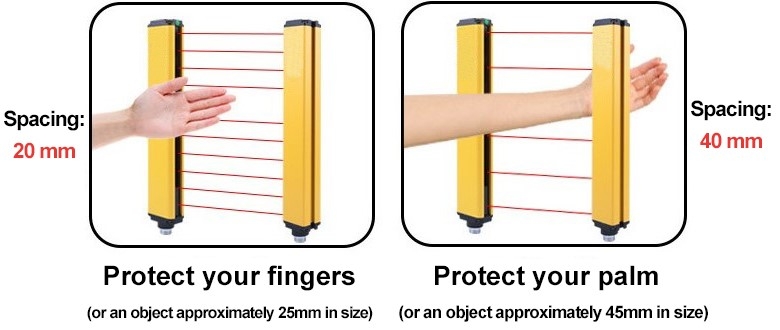

    Difference between pitch 20mm and 40mm

    Difference of industrial light curtain spacing distance

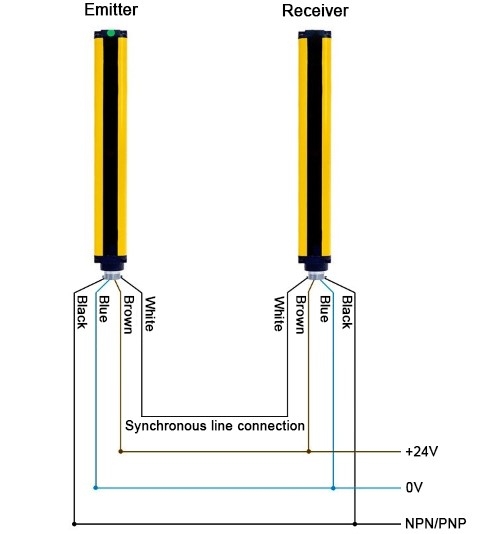

    Wiring

    Wiring of industrial light curtain

    Specs
    Optical Axis Distance 20mm, 40mm
    Detect Precision 30mm, 50mm
    Protection Length 0.2-6m
    Protection Height (Number of beams - 1) * optical axis spacing
    Operating Voltage DC 24V
    Operating Current <200mA
    Loading Current <200mA
    Response Time <20ms
    Protection Level IP55
    Diagnostic Coverage/DC >99%
    Operating Temperature -10°C~+55°C
    Environment Humidity 20°C, RH<85% (no condensation)
    Mean Time Between Dangerous Failures 120a
    Anti-light Interference 10000Lux incident angle >5°
    Anti-vibration Frequency: 10~55Hz, Amplitude: 0.35mm
    Impact Resistance 15g, 16ms, X, Y, Z axes, 1000 cycles per axis
    Application

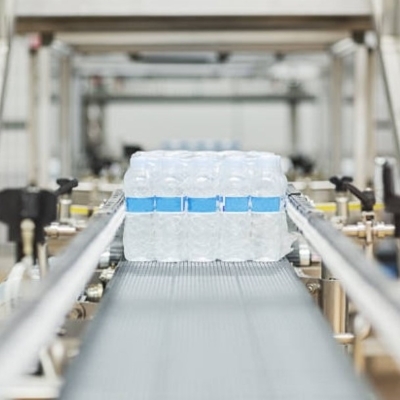

    Product Testing

    Product Testing

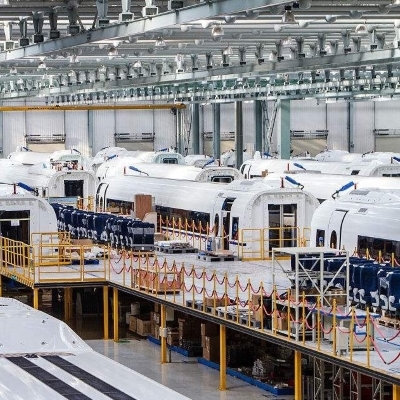

    Hazard Protection

    Hazard Protection

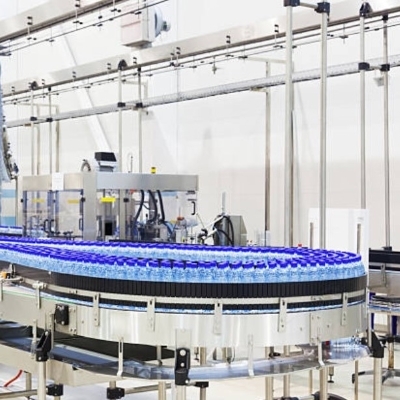

    Human Protection

    Human Protection

    FAQ
    ❯

    A light curtain consists of two parts: a transmitter and a receiver. The transmitter contains multiple LEDs that send infrared light pulses to the receiver.

    ❯

    Dust on lenses, misalignment, vibration, electrical noise, and damaged cables can reduce performance.

    ❯

    Safety industrial light curtains are widely used in manufacturing, packaging, stamping presses, robotics, material handling, and automated inspection systems.
