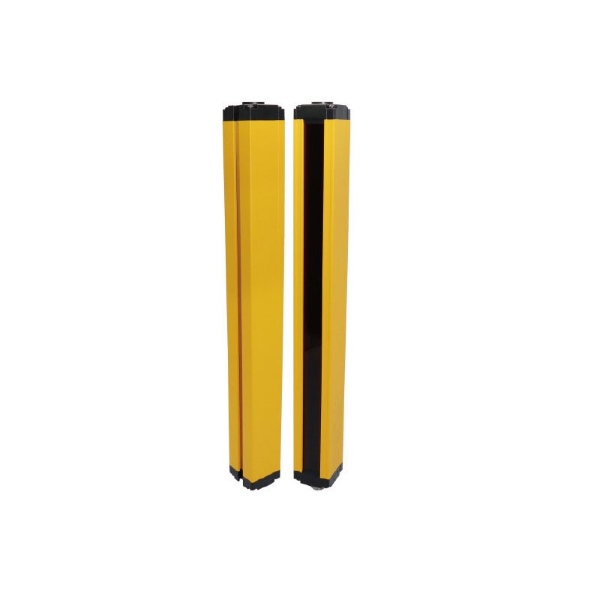

Enhanced Safety Light Curtain, 14/16/24/32/34 Beam

Enhanced safety light curtain is a non-contact machine safety sensor designed to help protect operators around hazardous equipment. It offers 4-34 beams, 10mm/20mm/40mm optical axis spacing, 1-3m protection width, ≤10ms response time, 24V DC power supply, NPN/PNP output, and IP65 protection. This safety light curtain is suitable for machine builders, automation engineers, factory maintenance teams, and safety system integrators. It is commonly used for machine guarding, assembly lines, automated equipment, and production line safety protection.

Feature

• CPU Self-Test: The light curtain utilizes CPU self-testing. When the light curtain itself malfunctions, it ensures that no erroneous signals are sent to the controlled equipment, guaranteeing the safety of the light curtain.
• Superior Anti-Interference Capability: Using infrared communication and a dedicated optical system, it has strong anti-interference capabilities, providing excellent resistance to electromagnetic signals, strobe lights, welding arcs, and ambient light sources.
• More Sensitive Response: The light curtain has a response time of less than 10ms and features overload and short-circuit protection.
• Self-Diagnosis: Within 2 seconds of power-on, the enhanced safety light curtain performs a self-diagnosis to ensure it is free from faults.
• Optical Synchronization Technology: Unique optical synchronization technology replaces traditional data cable synchronization, avoiding signal interference and eliminating the need for long data cable connections.

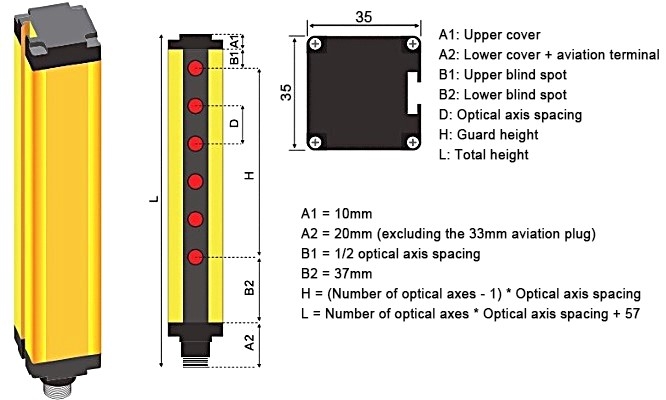

Dimension (Unit:mm)

Differences in the distance between beams

Wiring
