    Picture of Waterproof Safety Light Curtain, 4/8/10/12/20 Beam Picture of Waterproof Safety Light Curtain, 4/8/10/12/20 Beam Picture of Waterproof Safety Light Curtain, 4/8/10/12/20 Beam Picture of Waterproof Safety Light Curtain, 4/8/10/12/20 Beam

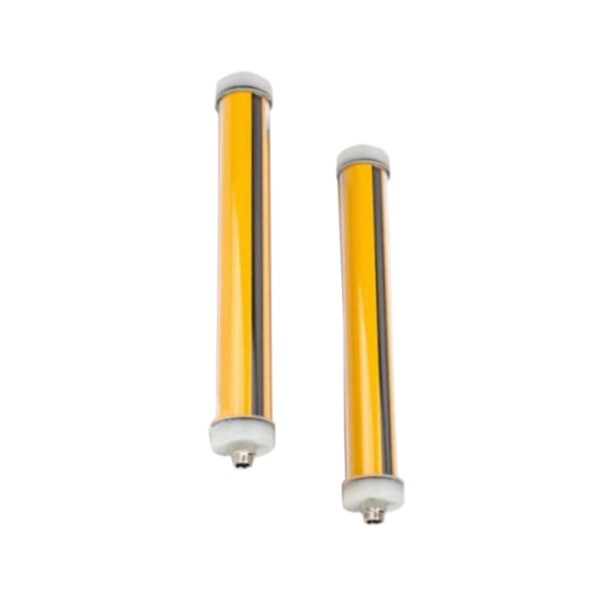

    Waterproof Safety Light Curtain, 4/8/10/12/20 Beam

    1 review(s) | Add your review
    SKU: SUCH-SLC-SCE
    $135.46
    ● IP68 waterproof safety light curtain for harsh areas ● 4-20 beam options with 20/40mm beam spacing ● NPN/PNP output for PLC, conveyor & machine guarding ● Fast response protection for stamping and assembly lines
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Waterproof safety light curtain is an IP68 through-beam safety sensor for machine guarding in wet, humid, or washdown environments. It supports 4–20 beams, 20mm/40mm optical axis spacing, 60–760mm detection height, 0–3m detection distance, DC24V power supply, NPN/PNP output, and ≤10ms response time. It is suitable for automation engineers and factory safety projects around stamping machines, assembly lines, and die casting equipment.

    Feature

    • Ultra-high Protection: IP68 protection rating, waterproof and dustproof. High-quality aviation connectors are durable, corrosion-resistant, and easy to plug and unplug.
    • Strong Anti-interference: The waterproof safety light curtain uses infrared technology, providing clear light transmission, easy light focusing, and strong anti-interference capabilities.
    • Self-test Function: When the light curtain itself malfunctions, it will not send erroneous signals to the controlled equipment, ensuring the safety of the light curtain.
    • Superior Quality: High-quality metal fittings are rust-resistant, securely installed, and durable. The transmission line is shielded to avoid surrounding electromagnetic interference.

    Dimension (Unit:mm)

    Waterproof light curtain size

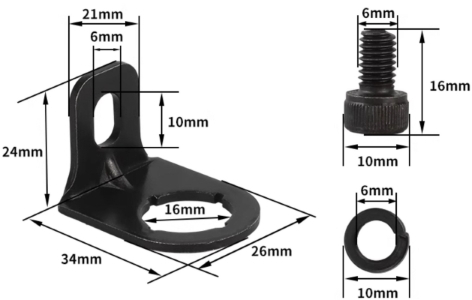

    Waterproof light curtain accessory dimension

    Wiring

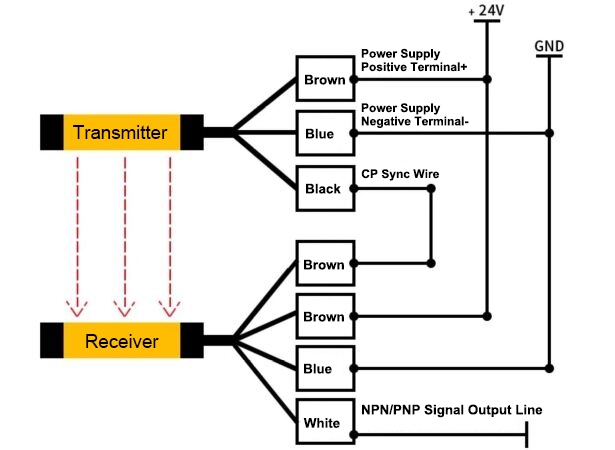

    Waterproof light curtain wiring

    Specs
    Number of Beams 4-20
    Optical Axis Spacing 20mm/40mm
    Detection Height 60-760mm
    Detection Distance 0-3m
    Operating Voltage DC24V±10%
    Power Consumption 5W
    Output Method NPN/PNP
    Response Time ≤10ms
    Content Aluminum alloy
    Light Curtain Type Through-beam type
    Insulation Resistance >100MΩ
    Interference Immunity 10000Lux
    Connection Method M16, M12, 3-pin, 4-pin
    Protection Circuit Reverse connection protection/output short circuit protection
    Dielectric Strength AC1500B. 60S
    Operating Temperature 15℃~65℃
    Storage Temperature -25℃~75℃
    Ambient Temperature 20℃, RH≤85%
    Product Color Yellow
    Application

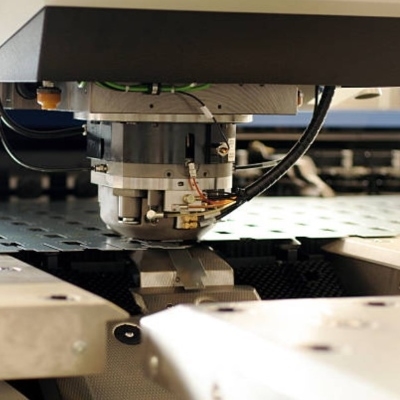

    Stamping Machine Protection


    Stamping Machine Protection

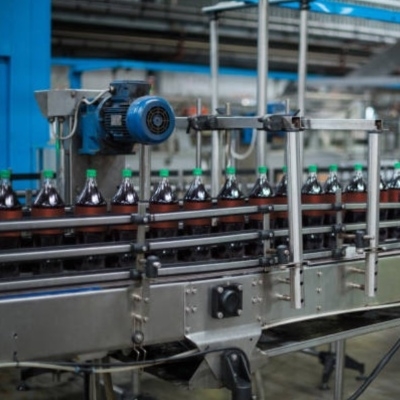

    Assembly Line Protection


    Assembly Line Protection

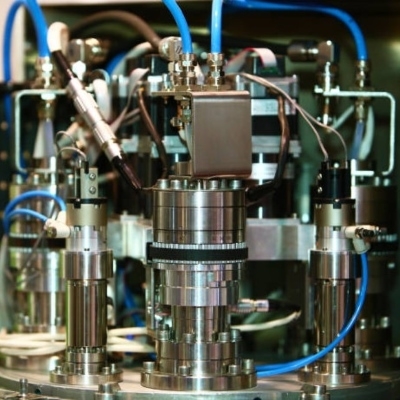

    Die Casting Machine Protection


    Die Casting Machine Protection

    FAQ
    ❯

    A waterproof safety light curtain is a safety device with a sealed, high-protection housing that allows it to operate reliably in wet, humid, or washdown environments.

    ❯

    The waterproof safety light curtain uses sealed housings, waterproof connectors, and protective lenses designed to block water ingress and resist corrosion.

    ❯

    Waterproof safety light curtain sensors can operate stably in harsh environments, reducing downtime caused by water ingress and supporting frequent rinsing and cleaning.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Adrian Hollowell | 10/14/2026 8:33 AM
    Can the waterproof light curtain work with my existing PLC?
    I need to add a safety light curtain to a machine in a washdown area. The control cabinet is already set up, so I’d like to keep the wiring changes to a minimum. Can I connect the waterproof light curtain to my existing PLC, or do I need to check anything first?
    SUCH responded to this review
    It depends on the PLC input type and the machine’s control setup. The light curtain is available with NPN or PNP output, so please send us your PLC model and wiring details. If you can also share the available mounting space, we can help check which configuration is suitable. For machine guarding, the overall safety setup should also be verified before use.
