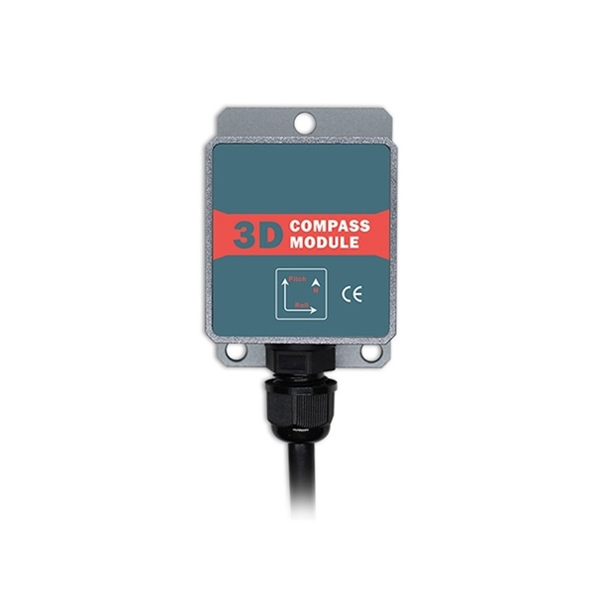

3D E Compass Sensor, RS485/RS232/TTL

The 3D E compass sensor has a wide 0-360° azimuth detection range with tilt compensation up to ±85°, ensuring accurate performance even under dynamic conditions. Equipped with advanced hard and soft magnet calibration algorithms, it effectively eliminates magnetic interference, while its built-in three-axis magnetic sensor and accelerometer provide real-time heading calculation. With flexible output options including RS485, RS232, and TTL, along with IP67 protection, wide voltage input (5V/9–36V), and an operating range from -40°C to +85°C, SUCH compass sensor is ideal for marine navigation, vehicle positioning, antenna stabilization, robotic systems, GPS integration, and other precision applications.

Feature

• Wide Measurement Range: Supports 0–360° full azimuth detection with high precision and stability.
• Advanced Calibration: Uses hard-iron and soft-iron correction algorithms, effectively eliminating magnetic field interference for reliable heading output.
• 3-Axis Sensor Integration: Built-in three-axis magnetic sensor and accelerometer with a central processor to perform real-time heading calculation and tilt compensation.
• Tilt Compensation: Provides accurate heading data even under tilt angles up to ±85°, ensuring dependable performance in dynamic environments.
• Multiple Output Interfaces: Compatible with RS485, RS232, and TTL communication, making integration with various control systems flexible and easy.
• High Protection Level: Designed with IP67 waterproof and dustproof rating, suitable for harsh industrial and outdoor environments.
• Wide Operating Range: Operates reliably in extreme temperatures from -40°C to +85°C and withstands strong vibration and shock.
• Versatile Applications: Ideal for marine navigation, vehicle positioning, antenna stabilization, robotic systems, GPS integration, and infrared imaging devices.

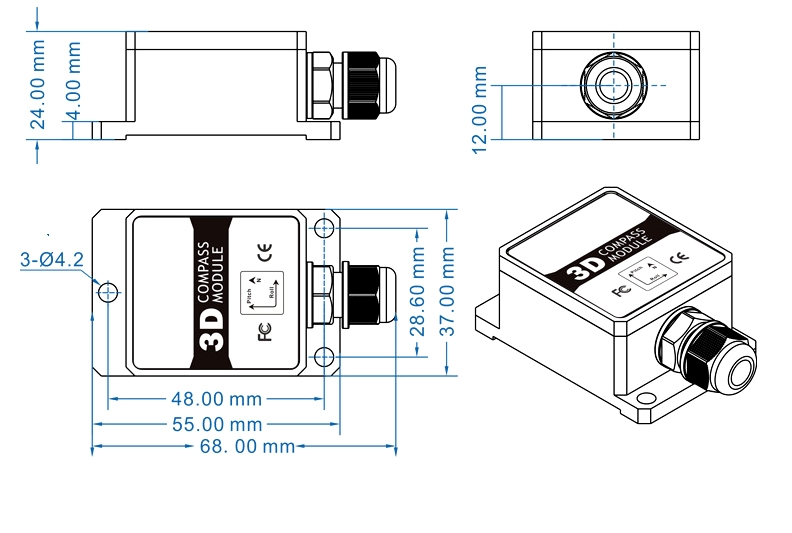

Dimension

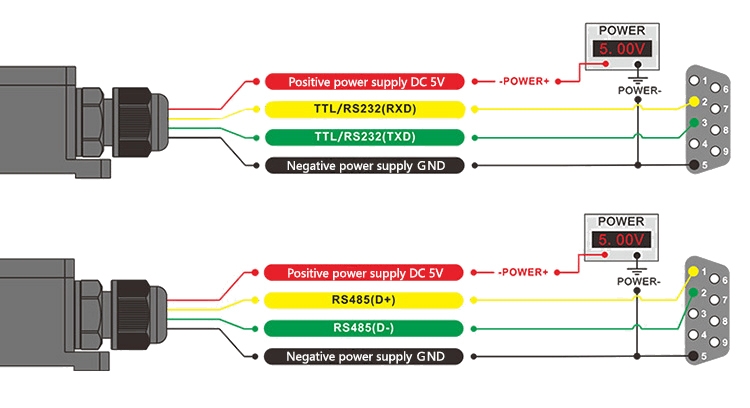

Wiring

Installation
