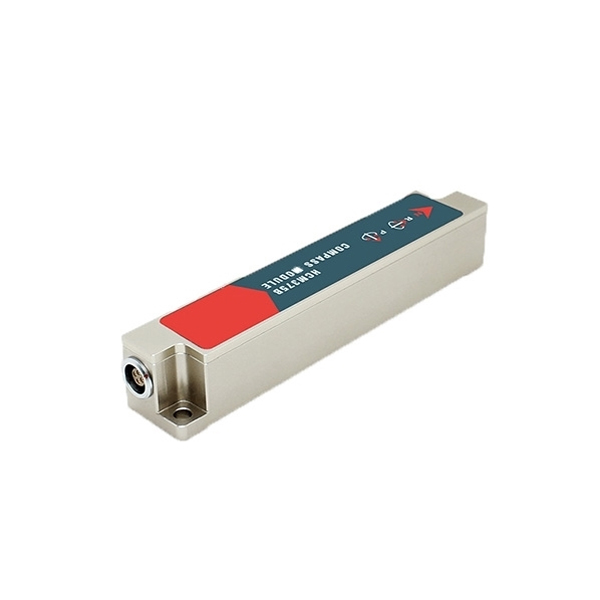

    Electronic Compass Sensor, 3D, RS485/RS232/TTL

    SKU: SUCH-COMPS-3D
    $909.96
    ● Gyroscope and compass fusion ● Output signal RS232/RS485/TTL/RS422 ● IP67 protection level ● 0.1° resolution
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    3D electronic compass sensor combines advanced three-axis magnetic sensing with gyroscope and compass fusion to deliver stable and reliable heading data. With built-in tilt compensation through a three-axis accelerometer, it ensures accurate orientation even under dynamic conditions. Featuring 0.1° resolution, IP67 protection, and strong anti-interference capability, this compact and lightweight sensor is ideal for embedded and mobile applications. Compass sensor supports multiple interface options including RS232, RS485, TTL, and RS422, making it easy to integrate into a wide range of systems such as antenna stabilization, vehicle navigation, and industrial system integration, while maintaining low power consumption and long-term durability.

    Feature

    • Three-Axis Magnetic Sensing: SUCH electronic compass sensor utilizes advanced three-axis magnetic field detection technology with real-time data processing for precise heading calculation.
    • Tilt Compensation: Built-in three-axis accelerometer provides wide-range tilt angle compensation, ensuring reliable orientation even in dynamic conditions.
    • High Accuracy & Stability: Delivers dynamic high-precision heading measurement with excellent consistency and long-term stability.
    • Compact & Lightweight: Small size and lightweight design make it ideal for embedded and mobile applications.
    • Low Power Consumption: Designed for energy efficiency while maintaining high performance, suitable for continuous operation.
    • Multiple Interface Options: Supports RS485, RS232, and TTL outputs for easy integration into different systems.
    • Wide Application Range: Electronic compass sensor suitable for antenna stabilization, vehicle navigation, system integration, and other fields requiring accurate 3D orientation.
    • Durable & Reliable: Built with robust structure, strong anti-interference capability, and wide operating temperature adaptability for industrial environments.

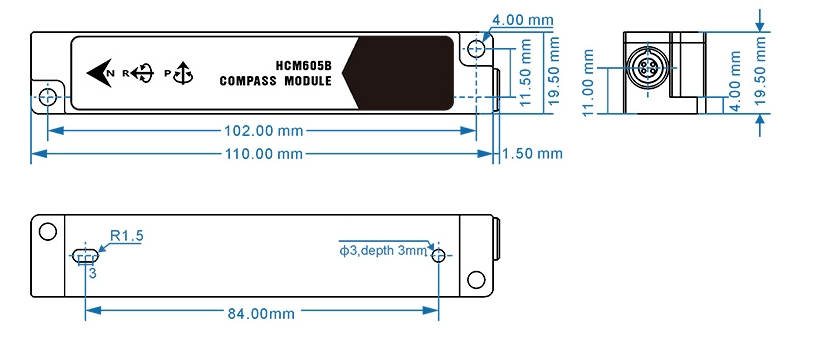

    Dimension (mm)

    Electronic compass sensor 3d size

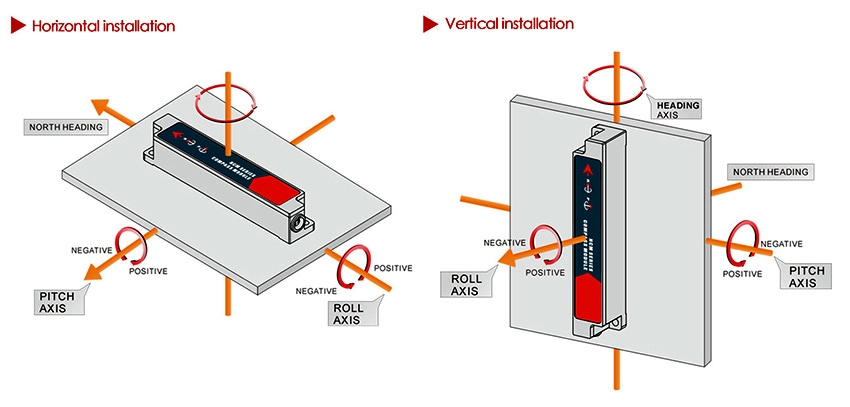

    Installation Direction Diagram

    Electronic compass sensor 3d installation

    Installation Precautions:

    Since the azimuth angle of a 3D electronic compass is based on the geomagnetic principle, it is important to select an installation location with minimal magnetic interference. Keep the device as far as possible from iron objects, magnets, engines, or other magnetic materials. Even if such magnetic sources are present nearby, ensure a minimum clearance of at least 30 cm (the required distance may vary depending on the strength of the magnetic field). To achieve the best measurement performance, it is recommended to use M3 anti-interference screws during installation.

    Signal Definition

    Black Red Yellow Green
    GND (Power Negative) DC 5V (Power Positive) TTL/RS232 (RXD) or RS485 (D-) TTL/RS232 (TXD) or RS485 (D+)
    Specs
    Compass Heading Parameters
    Heading accuracy (RMS) 0.5° tilt <10°
    2.0° tilt <60°
    3.0° tilt <80°
    Resolution 0.1°
    Compass Inclination Parameters
    Pitch accuracy (RMS) 0.1° <15° (measuring range)
    0.1° <30° (measuring range)
    0.1° <60° (measuring range)
    0.2° <85° (measuring range)
    Pitch tilt range ±85°
    Roll accuracy 0.1° <15° (measuring range)
    0.1° <30° (measuring range)
    0.1° <60° (measuring range)
    0.3° <180° (measuring range)
    ±180°
    Resolution 0.1°
    Calibration
    Hard iron calibration
    Soft iron calibration
    Magnetic field interference calibration Plane rotates one circle (2D calibration)
    Physical Properties
    Size L111.5 × W19.5 × H19.5 mm
    Connectors 5 PIN aviation socket
    Interface Characteristics
    Startup delay <50ms
    Output signal RS232 / RS485 / TTL (optional)
    Output rate 20Hz/s
    Power Supply
    Supply voltage DC +5V (default)
    Current (MAX) 30mA
    Idle mode 26mA
    Sleep mode TBD
    Environment
    Operating temperature -40℃ ~ +85℃
    Storage temperature -40℃ ~ +85℃
    Vibration resistance 100g
    Protection level IP67
    Electromagnetic compatibility EN61000 and GBT17626
    MTBF ≥40000 hours
    Insulation resistance ≥100 MΩ
    Vibration resistance 10grms, 10~1000Hz
    Weight ≤85g
    Application
    Maritime navigation surveying

    Maritime Navigation

    GPS navigation system

    GPS Navigation System

    Infrared camera

    Infrared Camera

    FAQ

    Yes. It is commonly integrated with GPS receivers, inertial measurement units (IMUs), and autopilot systems to enhance navigation accuracy, especially in applications where GPS signals are weak or unavailable.

    Yes. It integrates a 3-axis accelerometer and a 3-axis magnetometer, allowing real-time compensation for heading errors when the device is tilted or in motion.

    The sensor uses soft and hard iron calibration algorithms to minimize the impact of surrounding magnetic disturbances. However, in environments with strong electromagnetic fields, it is recommended to avoid interference sources or apply additional filtering and calibration.
