Compass Sensor, Pitch ±90°, Roll 360°

Name: Compass Sensor, Pitch ±90°, Roll 360°
Brand: Such.com
SKU: SUCH-COMPS-P90
Price: 1123.89 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-COMPS-P90

$1,123.89

● Heading 0-360° range ● Heading 0.3-0.5°, tilt 0.1° accuracy ● DC +5V working voltage ● Output signal RS232/RS485/TTL/RS422

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH compass sensor has heading accuracy of 0.3°-0.5° and tilt accuracy of ±0.1°, it integrates tilt compensation, a three-axis magnetic sensor, and advanced soft-iron and hard-iron correction algorithms to ensure reliable performance. With support for 12-point automatic calibration, E compass sensor offers stable measurements across a wide range of applications, from petroleum well logging and underwater navigation to marine surveys and ship attitude monitoring. Its rugged design includes IP67 protection (IP68 optional), anti-interference capability, and dependable operation in extreme temperatures from -40°C to +85°C. Compact and low-power, it provides flexible interface options such as RS232, RS485, TTL, RS422, and CAN bus, making it adaptable to diverse system requirements while supporting customization for specific industrial and marine uses.

Feature

Tilt Compensation: Built-in algorithm for tilt correction, ensuring stable performance in dynamic conditions.
Automatic Calibration: Supports 12-point automatic calibration for improved accuracy.
Three-Axis Magnetic Sensor: Provides full 3D magnetic field detection for reliable orientation.
Magnetic Compensation: Integrated soft-iron and hard-iron correction to minimize magnetic interference.
High Precision: Heading accuracy 0.3°–0.5°, tilt accuracy ±0.1°.
Full Attitude Measurement: Pitch ±90°, roll ±180°, yaw 360°, delivering complete orientation data.
Multiple Interfaces: Output options include RS232, RS485, TTL, RS422, and CAN bus.
Industrial-Grade Design: Compact size, low power consumption, and rugged construction for industrial use.
Protection Rating: IP67 waterproof and dustproof (IP68 optional for enhanced protection).
Wide Operating Temperature: Reliable performance in harsh environments from -40°C to +85°C.
Anti-Interference: Strong resistance to electromagnetic and environmental disturbances.
Customizable Options: Supports labeling, marking, and customized designs upon request.

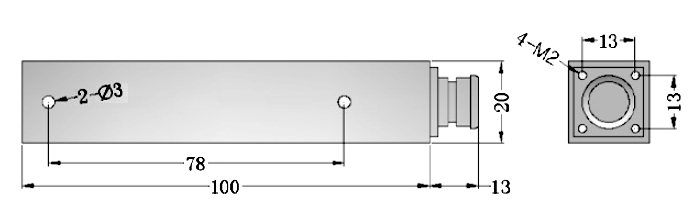

Dimension (mm)

electronic compass sensor dimension

Electrical Connection

RS232 Wiring Definition

RED	WHITE	BLACK	GREEN	YELLOW
1	2	3	4	5
VCC	NC	GND	RXD	TXD

2d electronic compass sensor rs232-wiring

RS485 and Modbus Wiring Definition

RED	WHITE	BLACK	GREEN	YELLOW
1	2	3	4	5
VCC	NC	GND	(B, D+)	(A, D+)

TTL Wiring Definition

RED	WHITE	BLACK	GREEN	YELLOW
1	2	3	4	5
VCC	NC	GND	RXD	TXD

2d electronic compass sensor ttl wiring

RS422 Wiring Definition

RED	BLACK	GREEN	YELLOW	WHITE	BROWN
1	2	3	4	5	6
VCC	GND	RXD- (B-)	RXD+ (A+)	TXD+ (A+)	TXD- (B-)

Specs

Range	Heading 0-360°, full attitude
Accuracy	Heading 0.3-0.5°, Tilt 0.1°
Working Voltage	DC +5V
Working Temperature	-40~+85℃
Protection Level	IP67 (customizable IP68)
Size	1132020mm
Output	RS232/RS485/TTL/RS422 (optional)
Heading Accuracy	0.3~0.5° (RMS, pitch<85°)
Heading Resolution	0.1°
Heading Repeatability	0.05°
Pitch Accuracy	0.1°
Roll Accuracy	0.1° (pitch<65°)
Roll Accuracy	0.2° (pitch<80°)
Roll Accuracy	0.5° (pitch<86°)
Tilt Resolution	0.01°
Tilt Range	Pitch ±90°, Roll 360°
Hard Iron Calibration	✔
Soft Iron Calibration	✔
Tilt Calibration	✔
Dimensions	L113 x W20 x H20 mm
Weight	110g
Connector	5-pin aviation plug (RS232/RS485)
Startup Delay	<50ms
Max Sampling Rate	50 times/second
RS-232 Baud Rate	2400~19200
RS-485 Communication	Optional
TTL Communication	Optional
Output Format	Hexadecimal
Supported Voltage	DC +5V (customizable 9~36V)
Current (Maximum)	40mA
Operating Mode	30mA
Storage Range	-40℃~+125℃
Operating Temperature	-40℃~+85℃
Vibration Resistance	3000g

Application

Maritime Navigation

GPS Navigation System

Infrared Camera

FAQ

Q1: Is the compass sensor resistant to vibration and shocks? ❯

Yes, the industrial-grade housing and anti-interference design provide resistance to vibrations and mechanical shocks, ensuring stable performance in rugged environments.

Q2: Can multiple sensors be used together in one system? ❯

Yes, multiple units can be deployed simultaneously and connected through RS485 or CAN bus, allowing distributed navigation or monitoring systems to function effectively.

Q3: What industries benefit most from this compass sensor? ❯

It is widely applied in petroleum well logging, underwater navigation, marine surveys, ship attitude monitoring, robotics, and geological exploration.
