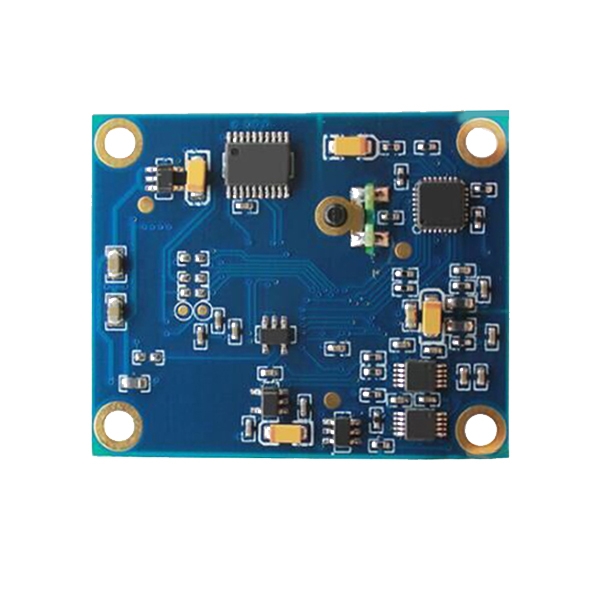

3D Electronic Compass Module with Magnetic, RS232

The 3D electronic compass module provides 0.5° heading accuracy with pitch tilt range of ±85° and roll tilt range of ±180°. It offers ±0.2° tilt accuracy with 3-axis accelerometer compensation and supports hard-iron, soft-iron, and tilt calibration. SUCH compass module operates at DC +5V, 18mA, and has RS232 output for easy integration in vehicle navigation, antenna stabilization, robotics, and other directional applications.

Feature

• High Accuracy Heading: Provides 0.5° heading accuracy for precise orientation in navigation and positioning systems.
• Wide Tilt Measurement Range: Supports tilt angle detection up to ±85°, ensuring reliable performance in complex dynamic environments.
• Tilt Accuracy: Offers ±0.2° tilt accuracy with integrated 3-axis accelerometer compensation for stable angle measurement.
• Magnetic and Tilt Compensation: Equipped with hard-iron, soft-iron, and tilt calibration functions to minimize magnetic interference and maintain accuracy.
• Compact and Reliable Design: Small size, low power consumption, high vibration resistance, and long-term operational stability.
• Standard Interface: RS232 output ensures compatibility with various control systems and easy integration into industrial and vehicle platforms.
• Application Versatility: Widely used in antenna stabilization, vehicle navigation, robotics, and other fields requiring stable heading reference.

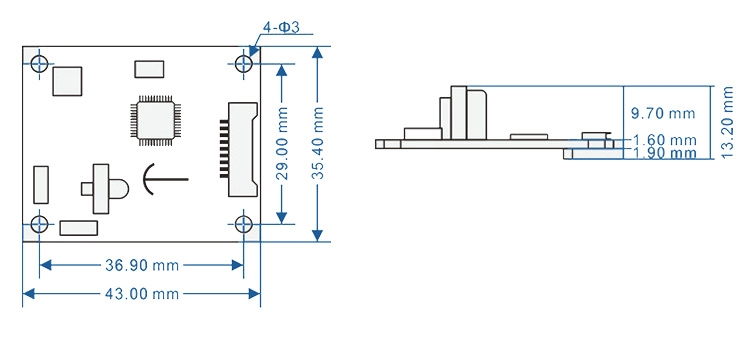

Dimension (mm)

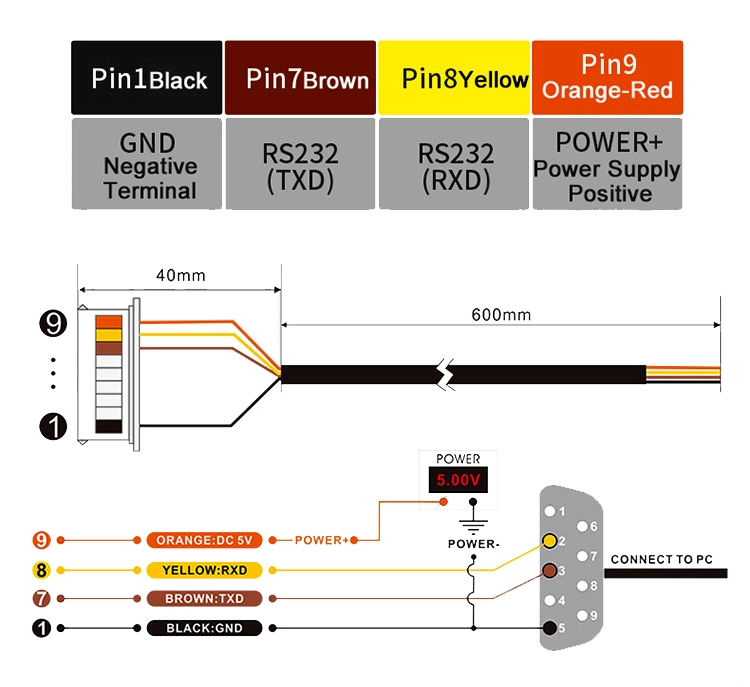

Electrical Connection

Installation Direction Diagram
