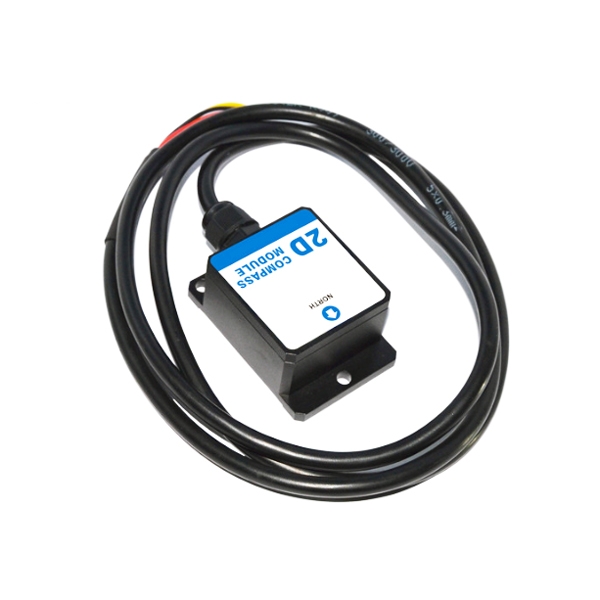

High Precision Compass Sensor, 2D, 0-360°

Name: High Precision Compass Sensor, 2D, 0-360°
Brand: Such.com
SKU: SUCH-COMPS-HP2D
Price: 195.96 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-COMPS-HP2D

$195.96

● Detection range 0-360° ● Output signal RS232/RS485/TTL/RS422 ● Power supply voltage 12V ● Accuracy 1°, resolution 0.1°

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High precision compass sensor is an industrial-grade horizontal azimuth module delivering 1° heading accuracy with 0.1° resolution across the full range. It has magnetic compensation with soft/hard-iron calibration and an anti-interference design to maintain stable heading even with ±5° tilt. Running on 12 V, SUCH compass sensor offers RS232, RS485, TTL, and RS422 outputs for easy integration. Rugged IP67 (IP68 optional), compact, and low-power, it suits harsh −40 to +85 °C environments. Typical applications include solar tracker orientation, AGV carts and medical devices, railway/locomotive monitoring, construction machinery angle control, building tilt/structural health monitoring, and ship navigation attitude measurement.

Feature

Measurement Range & Type: 2D horizontal heading, 0–360° continuous coverage.
Accuracy & Resolution: 1° heading accuracy with 0.1° resolution for precise azimuth output.
Tilt Tolerance: Stable heading with ±5° inclination, ideal for slightly rolling platforms.
Magnetic Compensation: Built-in soft/hard-iron calibration and anti-interference design for reliable performance near ferromagnetic objects.
Interfaces: Multiple outputs—RS232, RS485, TTL, RS422—for flexible system integration.
Power Supply: 12 V input with low power consumption and compact form factor.
Environmental Rating: IP67 protection (IP68 optional) for dustproof and waterproof operation.
Operating Temperature: Wide −40 to +85 °C range for harsh environments.
Industrial Design: Rugged construction for long-term stability and field deployment.
Easy Integration: Multi-port design simplifies wiring and embedded installation.
Core Functions: Precise heading data and full-range 360° azimuth measurement—an electronic compass sensor optimized for navigation and guidance.
Typical Applications: Solar tracker orientation, AGV carts and medical devices, railway monitoring, construction machinery angle control, building tilt/structural health monitoring, and ship navigation attitude measurement.

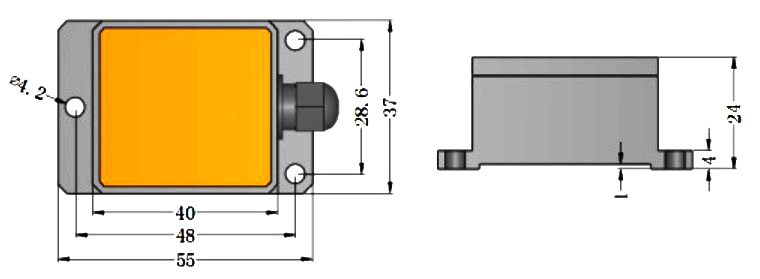

Dimension (mm)

2D electronic compass sensor dimension

Electrical Connection

RS232 Wiring Definition

RED	WHITE	BLACK	GREEN	YELLOW
1	2	3	4	5
VCC	NC	GND	RXD	TXD

2d electronic compass sensor rs232-wiring

RS485 and Modbus Wiring Definition

RED	WHITE	BLACK	GREEN	YELLOW
1	2	3	4	5
VCC	NC	GND	(B, D+)	(A, D+)

TTL Wiring Definition

RED	WHITE	BLACK	GREEN	YELLOW
1	2	3	4	5
VCC	NC	GND	RXD	TXD

2d electronic compass sensor ttl wiring

RS422 Wiring Definition

RED	BLACK	GREEN	YELLOW	WHITE	BROWN
1	2	3	4	5	6
VCC	GND	RXD- (B-)	RXD+ (A+)	TXD+ (A+)	TXD- (B-)

Specs

Range	0-360°
Accuracy	1°
Working voltage	DC +5V (DC +9~36V can be customized)
Working temperature	-40~+70℃
Working current	40mA
Volume	553724mm (customizable)
Output	RS232/RS485/TTL/RS422/Modbus (optional)
Performance Indicators
Compass heading parameters	Heading accuracy	1°
	Resolution	0.1°
	Repeatability	0.3°
Heading angle	Navigation tilt angle range	+/-5°
Heading angle	Heading angle measurement range	0~360°
Calibration	Hard iron calibration	✔
	Soft iron calibration	✔
	Magnetic field interference calibration	one rotation of the plane (two-dimensional calibration)
Physical characteristics	Weight	75g
Physical characteristics	RS-232/RS485 interface connector	5-pin
Interface characteristics	Startup delay	<50ms
	Maximum sampling rate	50 times/second
	RS-232 communication rate	2400~19200 baud rate
	RS-485 communication	Optional
	TTL communication	Optional
	Output format	Hexadecimal
Power supply	Supported voltage	DC+5V (9~36V can be customized)
	Current (maximum)	40mA
	Operating mode	30mA
Environment	Storage range	-40℃~+125℃
	Operating temperature	-40℃~+70℃
	Vibration resistance	2500g

PDF computing High Precision Compass Sensor User Manual

Application

Ship Attitude Measurement

Mechanical Angle Control

Solar Tracking

FAQ

Q1: What’s the difference between accuracy and resolution? ❯

Resolution (e.g., 0.1°) is the smallest step the output can change by. Accuracy (e.g., ±1°) is how close the reported heading is to the true heading after proper calibration and installation.

Q2: 2D vs 3D compass—what’s the difference? ❯

A 2D compass assumes the sensor is level; tilting causes errors. A 3D (tilt-compensated) compass uses accelerometers (and sometimes gyros) with magnetometers to maintain accurate heading while pitching/rolling.

Q3: Do I need to set magnetic declination? ❯

If you need true north, yes—apply local declination to convert magnetic heading to true heading. If magnetic north is acceptable (many robotics/AGV cases), you can leave declination at 0.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Thomas Bradley | Date: 6/10/2026 9:57 AM

Reliable high precision compass sensor for buoy tracking

Ordered a few units of this high precision compass sensor for a marine telemetry buoy array project last month. Runs fine off our standard 12V regulator system. The plastic enclosure feels durable enough and the heavy cable gland keeps the sea spray out. Had to recalibrate once near iron frames but accuracy is spot on now.
