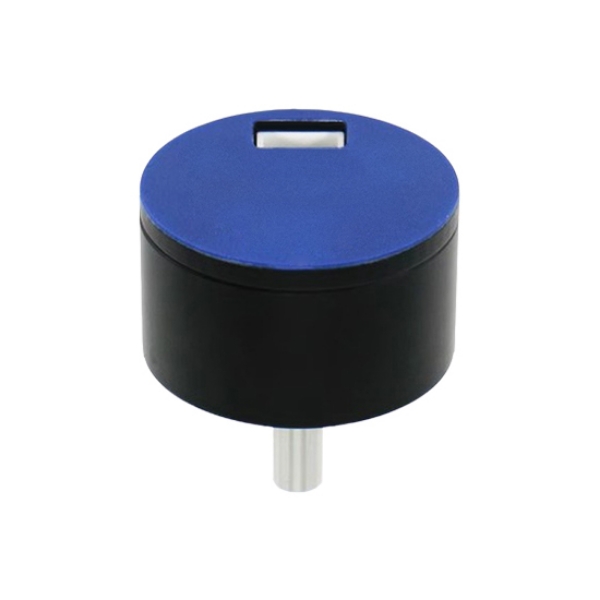

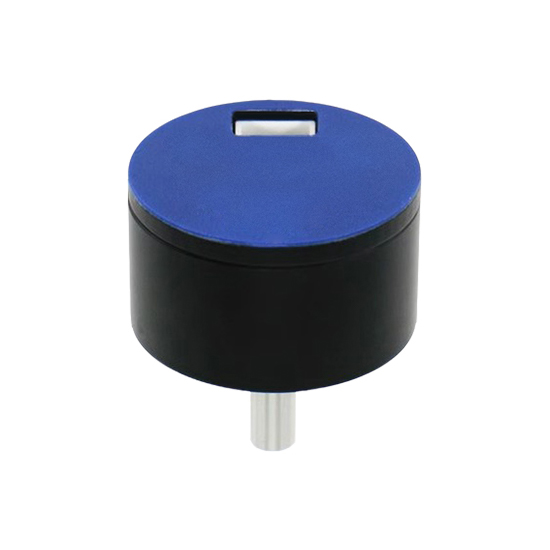

Magnetic Angle Sensor, PWM Output, 0°~360°

Magnetic angle sensor provides absolute angle measurement from 0° to 360°, with a resolution of up to 0.09° and a linear error of no more than ±0.35°, ensuring precise angle detection. The angle sensor supports PWM signal output and can achieve a maximum rotation speed of 20,000 rpm. The power supply voltage is 3–5.5 V, with an interface specification of XH2.54 3P. It is compact in size and consumes only 30 mW of power, making it highly suitable for embedded applications.

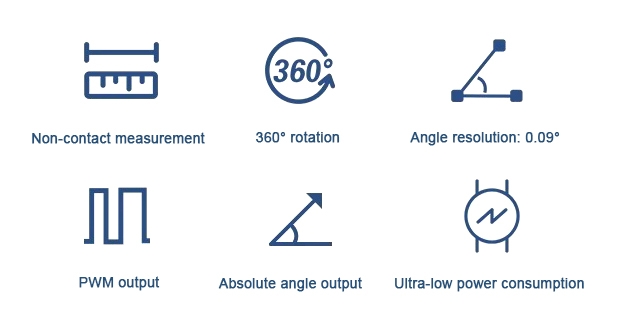

Feature

Traditional Hall-effect encoders offer high precision, but Hall elements are significantly affected by temperature and environmental magnetic fields, resulting in lower actual measurement accuracy and usability compared to magnetoresistive angle sensors. The SUCH angle sensor, based on magnetoresistive technology, is more suitable for industrial applications involving high speeds and impact vibrations than Hall-effect angle sensors. Its digital PWM output provides measurement accuracy equivalent to acquisition accuracy, effectively avoiding the issues of long analog signal acquisition times and low acquisition precision.

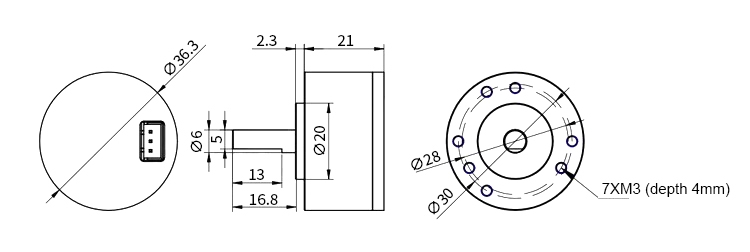

Dimension (unit: mm)

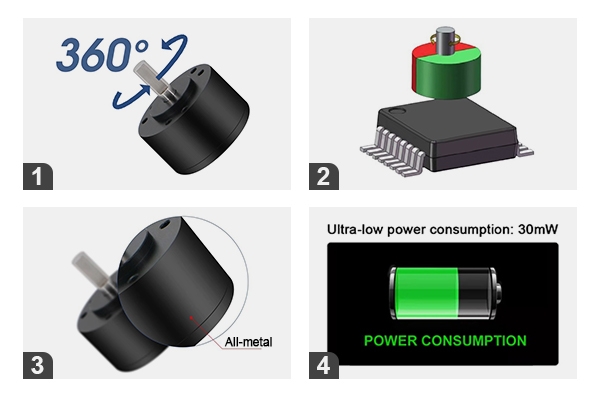

Detail

1. Absolute 360° full-angle measurement, fixed position output of fixed signals, angle resolution of 0.09°.
2. Non-contact magnetic induction measurement for smooth rotation, ultra-low noise, and support for high-speed rotation up to 20kRpm.
3. High-precision CNC metal processing ensures installation accuracy and an attractive, high-quality appearance.
4. Magnetic angle sensors feature ultra-low power consumption of 30mW for user peace of mind.

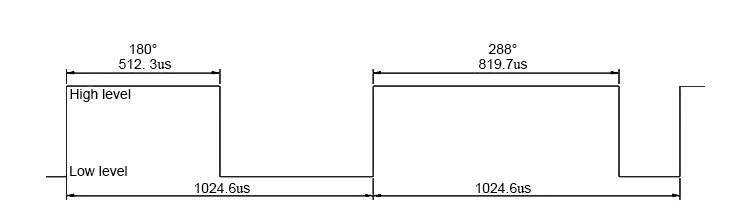

PWM Output

PWM duty cycle digital output, PWM cycle 1024us, digital output is more reliable.

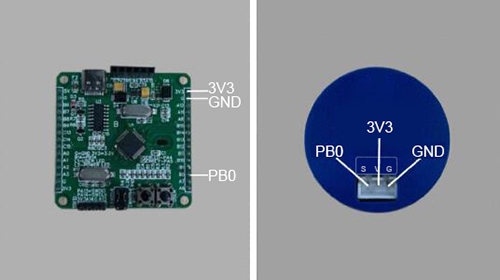

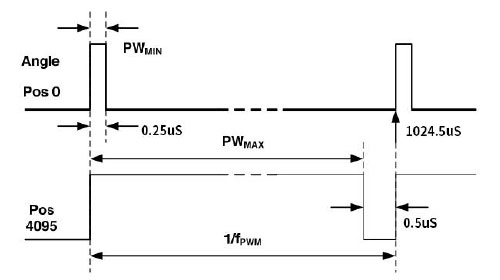

Wiring Instruction/Cycle and Angle Relationship
