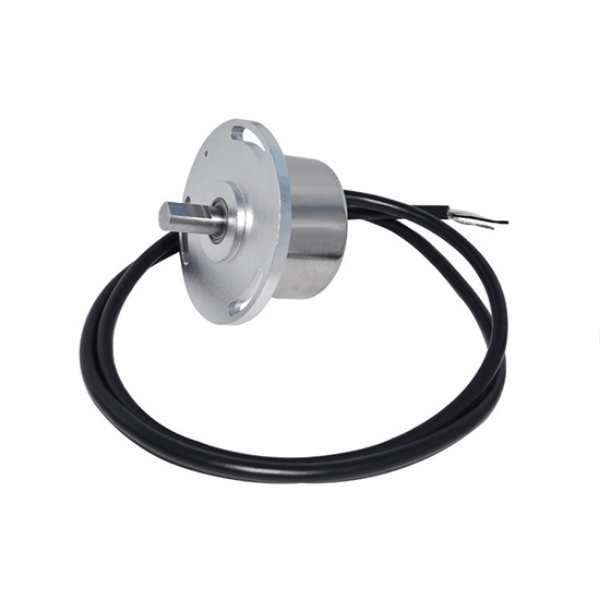

Magnetic Angle Sensor, 0°~360°, 4-20mA/RS485/0~5V

The magnetic angle sensor provides full-range measurement from 0~30°, 0~60°, 0~90°~0~360°, with an accuracy of ±0.3°/±0.1°, and supports multiple output signals such as 4-20mA, 0-5V, and RS485. The angle sensor features a 100Hz frequency response and 0.022° angle resolution, with an aluminum alloy anodized housing and stainless steel shaft. It has an IP66 protection rating and can operate stably within the temperature range of -40°C to 85°C, making it suitable for precise angle detection in outdoor industrial environments.

Feature

• The magnetic angle sensor has a wide power supply range of 9V to 36V, with reverse and anti-pulse spike voltage protection functions. It has a measurement error of ±0.3°, a reset repeatability of 0.001mV, and an absolute temperature drift of ±20 to 50μA.
• The magnetic angle sensor features contactless operation, long lifespan, high resolution, low temperature drift, excellent linearity, and precise reset. It is suitable for various harsh industrial environments such as water, oil, gas, vibration, and impact, making it an angle sensor with the best cost-performance ratio.

Dimension (unit: mm)

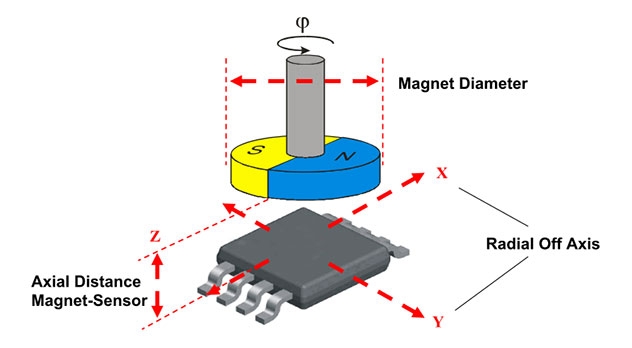

Working Principle

The angle sensor utilizes the Hall effect principle and employs a core control unit. It primarily detects angle changes by installing a grating on the axis and cutting the magnetic field through the rotation of the axis. The core design utilizes an independent sensor chip based on TriagisTm (three-axis Hall) technology, which is programmable. The angle is calculated by amplifying and filtering the capacitance measurement.

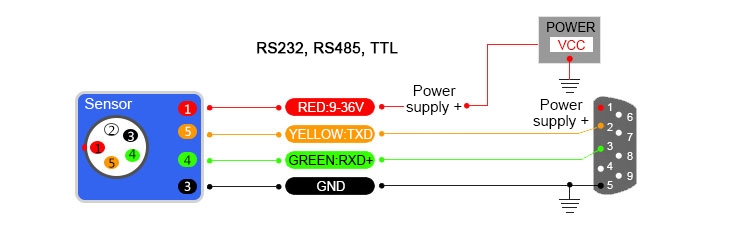

Wiring Diagram

Corresponding Angle Measurement

Current Output

Voltage Output
