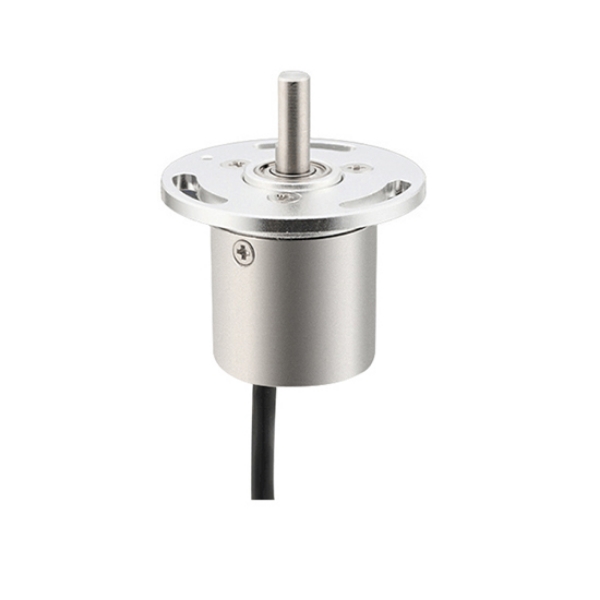

Mirco Contactless Angle Sensor, 4-20mA/0~5V

SKU: SUCH-ANS-210A

$186.47

● Measurement range: 0°~30°/0°~180°/0°~360° ● Accuracy: 0.3° ● Output signal: Digital/voltage/current output ● Resolution: 0.05°

Measuring Range *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

To ensure long-term reliability, mirco contactless angle sensors offer multiple measurement ranges from 0° to 360°, with short-distance measurement accuracy up to 0.3° and full rotation measurement accuracy of 1°. With a response time of 600μS/200μS, it supports various signal outputs such as 4-20mA, 0~5V, RS485, and CAN, ensuring compatibility with various control systems. With a resolution of 0.05°, linearity of 0.15%FS, and an IP66 protection rating, the non-contact angle sensor is suitable for industrial environments requiring precise, stable, and durable angle detection.

Feature

Contactless angle sensor feature

The angle sensor supports 0-360° range measurement and is suitable for omnidirectional angle detection.
Wide voltage input range of DC9-36V, compatible with a variety of power supply environments.
Multiple output interfaces are available, including RS232, RS485, CAN, and analog output.
High vibration resistance >20000g, non-contact, IP66 protection rating, suitable for use in harsh environments.

Dimension (unit: mm)

Contactless angle sensor dimension

Wiring Diagram

Angle sensor 4-20ma 0-20ma wiring

Red	Black	Green
1	2	3
VCC (Power Positive)	GND (Power Negative)	Signal Cable

Angle sensor 0-5V 0-10V TTL wiring

Red	Black	Yellow
1	2	3
VCC (Power Positive)	GND (Power Negative)	Signal Cable

Corresponding Angle Measurement

Current Output

Voltage Output

Specs

Model Selection

Model	SUCH-MK210A-30	SUCH-MK210A-60	SUCH-MK210A-90
Measurement Range	0~30°	0~60°	0~90°
Accuracy	0.3°	0.3°	0.3°
Long-term Stability	0.32°	0.32°	0.32°

Model	SUCH-MK210A-180	SUCH-MK210A-270	SUCH-MK210A-360
Measurement Range	0~180°	0~270°	0~360°
Accuracy	0.5°	0.6°	1°
Long-term Stability	0.53°	0.65°	1.1°

Universal Specs

Temperature Drift	0.002°/°C
Resolution	0.05°
Linearity	0.15%FS
Response Time	600μS/200μS (slow/fast)
Power-on Start-up Time	0.2s
Output Signal	Digital: TTL, RS232, RS485, RS422, CAN (optional)
	Voltage: 0–5 V, 0.5–4.5 V, 0–10 V (optional)
	Current: 0-20mA, 4-20mA (optional)
Noise	Current output: 3mV
Noise	Voltage/CAN/Digital output: 5mV
Center Point Offset	4-20mA output: 12mA / 0-20mA Output: 10mA
	0-10V output: 5V
	0.5-4.5V output: 2.5V
	0-5V output: 2.5V
CAN Baud Rate	100 Mbps to 1 Mbps, adjustable
Average Operating Time	≥55,000 hours/cycle
Shock Resistance	20,000g, 0.5 ms, 3 times per axis
Vibration Resistance	10 grms, 2–2,000 Hz
Supply Voltage	Standard: 9–36 V
Supply Voltage	0–10 V output: 15–36 V
Operating Current	Current output: 15–35 mA
Operating Current	Voltage output: 20 mA
Power Reverse Protection	40V
Signal Reverse Protection	40V
Output Load	Current output: 0-1 kΩ
Output Load	Voltage output: 2 kΩ
Operating Temperature	-40°C~85°C
Storage Temperature	-55°C~100°C
Waterproof Rating	IP66
Rotational Torque	<10 mN·m
Mechanical Angle	0~360° infinite rotation, forward/reverse rotation without stop position
Material	Housing: Aluminum alloy oxide
	Rear cover: Stainless steel
	Shaft: Stainless steel
Mechanical Life	>12,000,000 revolutions
Installation	Secured with three screws, connected to the customer's rotor via a flexible coupling shaft
Connector	Lead wire (1.5m)
Cable	Standard 1.5m, wear-resistant, oil-resistant, temperature-resistant, shielded cable 3×0.3mm²
Net Weight	80g

Application

Steering Wheel

Coal Washing Machine

Robot Arm Rotation

FAQ

Q1: How does a micro contactless angle sensor work? ❯

The mirco contactless angle sensor uses magnetic encoding or Hall effect technology to accurately measure angles by detecting changes in the magnetic field of a rotating shaft or target object, without the need for mechanical contact to output angle signals. Due to the absence of physical friction, the sensor has a longer service life and higher stability, making it particularly suitable for high-frequency or long-term continuous operation applications.

Q2: What environments are mirco contactless angle sensors suitable for? ❯

These non-contact angle sensors can operate stably in harsh industrial environments with dust, oil, and high humidity because their non-contact structure avoids the impact of wear and contamination on measurement accuracy. They are commonly used in automotive steering systems, industrial automation robotic arms, medical equipment, and robot joint angle monitoring.

Q3: What types of micro contactless angle sensors are available? ❯

The non-contact angle sensor supports multiple output options, including analog voltage output (e.g., 0-5V, 0-10V), current output (4-20mA, 0-20mA), and digital signal output (RS232, RS422, RS485, TTL), or CAN. Users can select the appropriate interface based on their control system requirements to achieve rapid integration and debugging.
