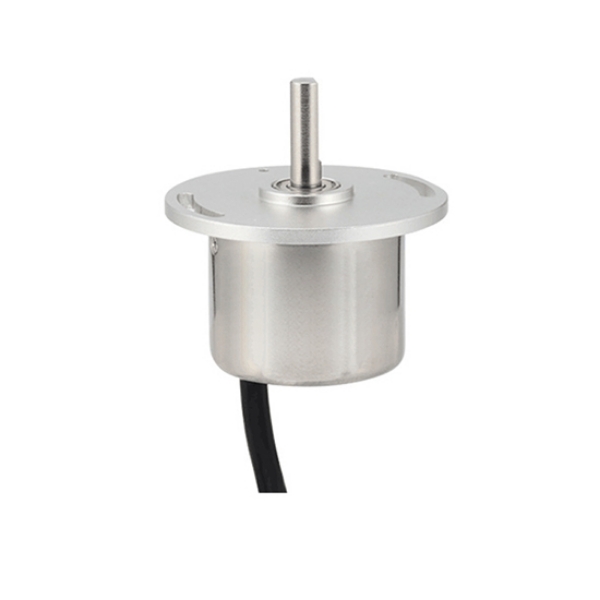

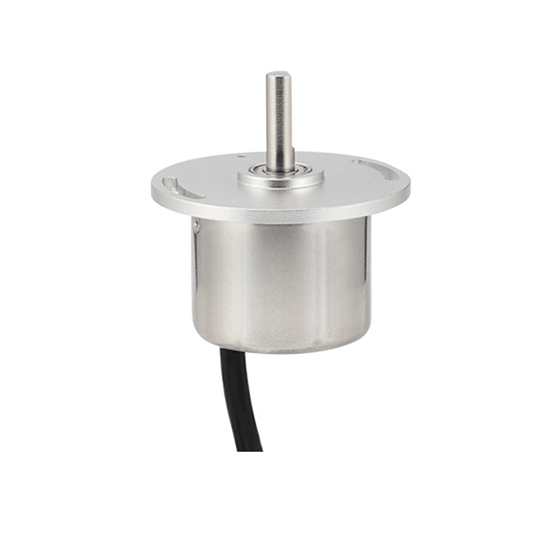

Rotation Angle Sensor, 0~5V/0~10V, 0~60°/0~180°

0 review(s) | Add your review

SKU: SUCH-ANS-380A

$215.86

● Measurement range: 0°~90°/0°~270°/0°~360° ● Accuracy: 0.2° ● Output signal: 0~5V/0~10V/0.5-4.5V ● Resolution: 0.02°

Measuring Range *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-precision rotary angle sensors support a variety of measurement ranges from 0° to 360°, with a resolution as high as 0.02° and accuracy up to ±0.2°. The angle sensors provide voltage outputs of 0–5 V and 0–10 V, as well as multiple interfaces such as RS232, RS485, and CAN. With a response time as fast as 200 μs, they ensure real-time signal transmission.

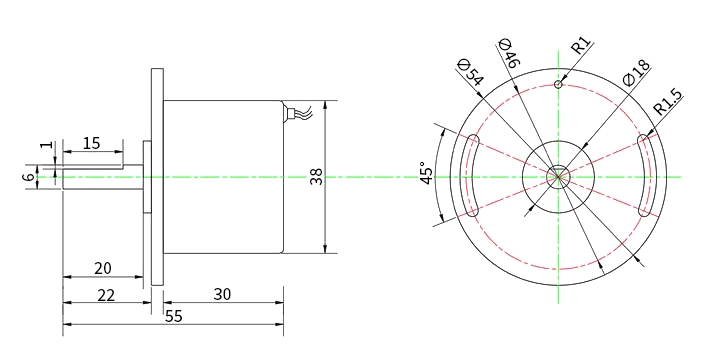

Dimension (unit: mm)

Rotation angle sensor dimension

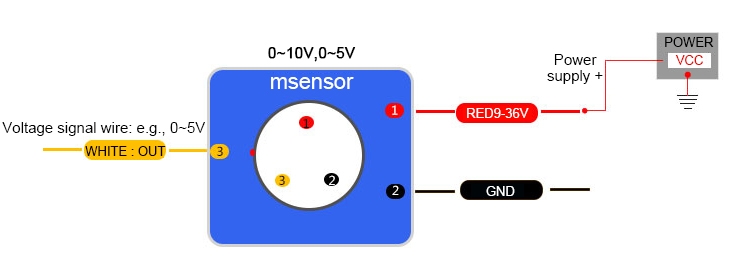

Wiring Diagram

Angle sensor 0-5V 0-10V TTL wiring

Red	Black	Yellow
1	2	3
VCC (Power Positive)	GND (Power Negative)	Signal Cable

Angle sensor CAN wiring

1	2	3	4	5
Red	White	Black	Green	Yellow
VCC	NC	GND	CANL	CANH

Note: Do not connect the power supply to the signal output lines (green and yellow wires), as this will damage the angle sensor.

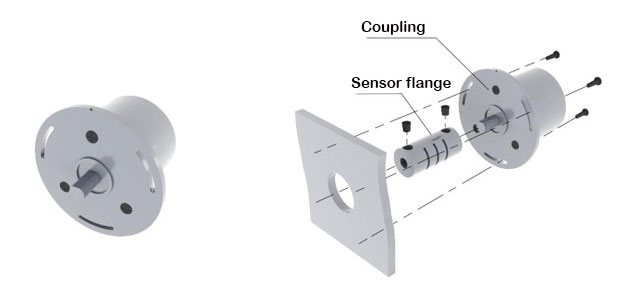

Coupling Installation

Angle sensor coupling installation method

Corresponding Angle Measurement

Current Output

Voltage Output

Specs

Model Selection

Model	SUCH-MK380A-30	SUCH-MK380A-60	SUCH-MK380A-90
Measurement Range	0~30°	0~60°	0~90°
Accuracy	0.2°	0.2°	0.2°

Model	SUCH-MK380A-180	SUCH-MK380A-270	SUCH-MK380A-360
Measurement Range	0~180°	0~270°	0~360°
Accuracy	0.3°	0.4°	0.6°

Universal Specs

Temperature Drift	0.003°/°C
Resolution	0.02°
Linearity	0.15%FS
Response Time	500μS/200μS (slow/fast)
Power-on Start-up Time	0.2s
Output Signal	Digital: TTL, RS232, RS485, RS422, CAN (optional)
	Voltage: 0–5 V, 0.5–4.5 V, 0–10 V (optional)
	Current: 0-20mA, 4-20mA (optional)
Noise	Current output: 3mV
Noise	Voltage/CAN/Digital output: 5mV
Center Point Offset	4-20mA output: 12mA / 0-20mA Output: 10mA
	0-10V output: 5V
	0.5-4.5V output: 2.5V
	0-5V output: 2.5V
CAN Baud Rate	100 Mbps to 1 Mbps, adjustable
Average Operating Time	≥55,000 hours/cycle
Shock Resistance	20,000g, 0.5 ms, 3 times per axis
Vibration Resistance	10 grms, 2–2,000 Hz
Supply Voltage	Standard: 9–36 V
Supply Voltage	0–10 V output: 15–36 V
Operating Current	Current output: 15–35 mA
Operating Current	Voltage output: 20 mA
Power Reverse Protection	40V
Signal Reverse Protection	40V
Output Load	Current output: 0-1 kΩ
Output Load	Voltage output: 2 kΩ
Operating Temperature	-40°C~85°C
Storage Temperature	-55°C~100°C
Waterproof Rating	IP66
Rotational Torque	<10 mN·m
Mechanical Angle	0~360° infinite rotation, forward/reverse rotation without stop position
Material	Housing: Aluminum alloy oxide
	Rear cover: Stainless steel
	Shaft: Stainless steel
Mechanical Life	>12,000,000 revolutions
Installation	Secured with 2 screws, connected to the customer's rotor via a flexible coupling shaft
Connector	Lead wire (1.5m)
Cable	Standard 1.5m, wear-resistant, oil-resistant, temperature-resistant, shielded cable 3×0.3mm²
Net Weight	120g

Application

Corner Actuator

Motor Rotation

Satellite Antenna Plane

FAQ

Q1: What are rotation angle sensors used for? ❯

Rotation angle sensors are used to measure the angular position of rotating objects (such as shafts, motors, or steering systems). They convert mechanical rotation into electrical signals, enabling precise monitoring and control in automotive, robotics, and industrial automation applications.

Q2: How accurate are rotation angle sensors? ❯

Most rotation angle sensors offer high accuracy, typically within ±0.5% of full scale. Advanced models offer higher resolution, ensuring stable operation in applications requiring precise angle control, such as CNC machines or medical devices.

Q3: Can rotary angle sensors be used in harsh environments? ❯

Yes. Many rotary angle sensors feature rugged housing designs capable of withstanding dust, vibration, and temperature fluctuations. This makes them suitable for outdoor machinery, automotive steering systems, and industrial equipment where durability and long-term reliability are critical.
