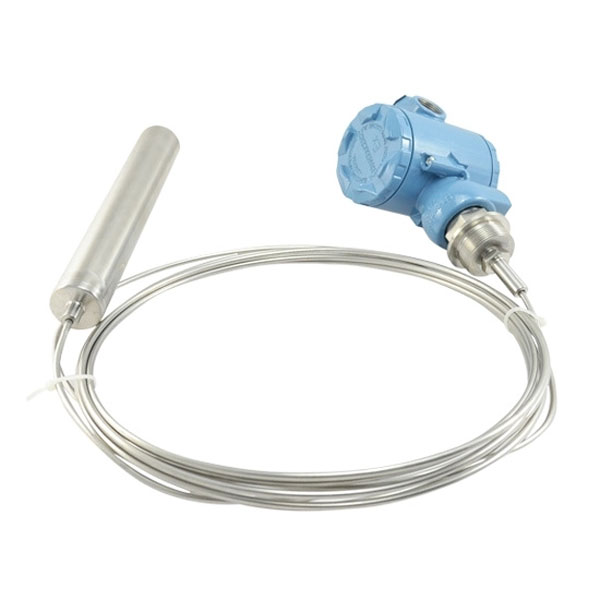

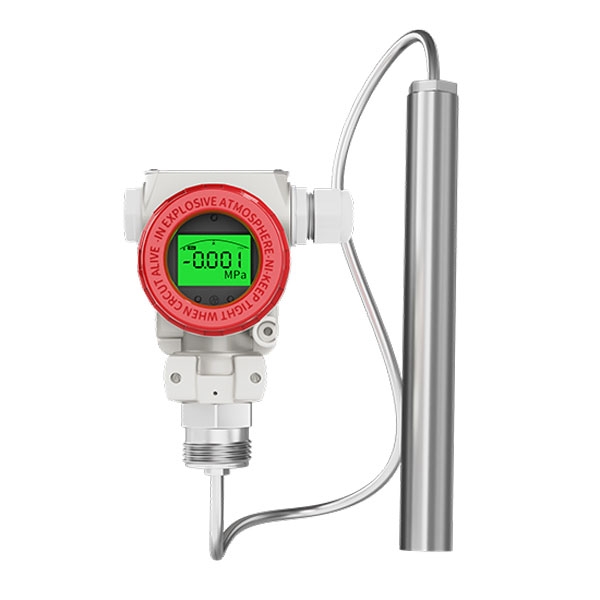

    High Temperature Submersible Liquid Level Sensor, 4-20mA/0-5V/0-10V

    SKU: SUCH-LS-P260G
    $306.89
    ● Operating temperature range -20~+85℃ (-4~+185℉) ● Measuring range 0-1m to 0-20m, power supply DC 24V or 12V ● Output signal 0-20mA, 4-20mA, 0-5V, 1-5V and 0-10V ● Applicable media of water, oil, fuel, and corrosive liquids ● Suitable for high temperature liquid level measurement environments
    *
    *
    *
    *
    🚚 Free shipping
    šŸ•’ Delivery date: 6-12 days
    šŸ” 30-day Returns
    Overview

    The high temperature liquid level sensor uses a separate 316L stainless steel structure to withstand harsh and corrosive liquids at -20~+85ā„ƒ (-4~+185℉). It offers measuring ranges up to 20m with multiple analog output options and accuracy of 0.5%FS or 0.3%FS. With a DC 12V/24V power supply and IP65 protection, this submersible level transmitter is ideal for water, oil, and fuel tank monitoring in high temperature conditions.

    Detail

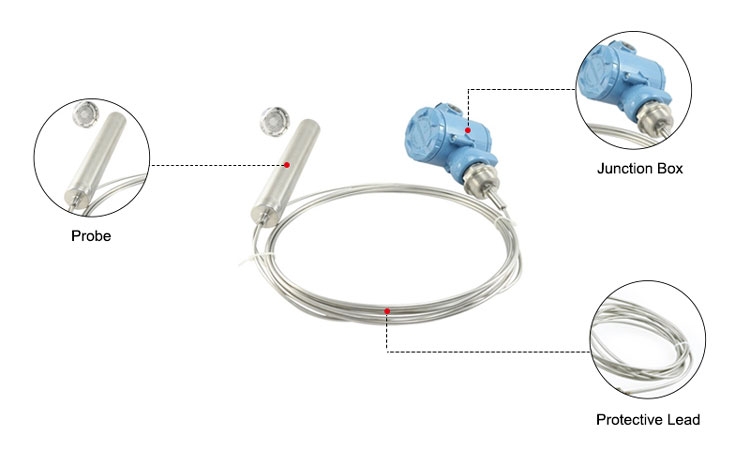

    High temperature submersible level sensor detail

    Dimension (Unit: mm)

    Note: The Capillary tube is as long as the measuring range. For example, if you choose 0-1m measuring, the length of the capillary tube is 1m.

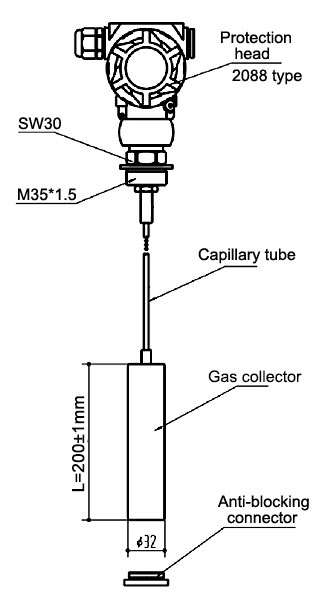

    High temperature submersible level sensor dimension

    Wiring Diagram

    High temperature submersible hydrostatic level sensor wiring diagram

    Specs
    Measuring range * 0-20m (0-1m, 0-3m, 0-5m, 0-7m, 0-10m, 0-12m, customizable range)
    Pressure type Gauge pressure, absolute pressure
    Accuracy * 0.5%FS
    Output signal * 2 wire: 4-20mA, 0-20mA
    3 wire: 0-5V, 1-5V, 0-10V
    Power supply * DC 24V, DC 12V
    Compensation temperature 0~+60ā„ƒ (32~140℉)
    Working temperature -20~+85ā„ƒ (-4~+185℉)
    Medium temperature -40~+100ā„ƒ (-40~+212℉)
    Storage temperature -40~+125ā„ƒ (-40~+257℉)
    Temperature effect on zero ±2%FS
    Temperature effect on sensitivity ±2%FS
    Overload pressure 150%FS
    Mechanical vibration 20g (20-5000Hz)
    Impact 100g (11ms)
    Long-term stability ±0.2%FS/year
    Response time ≤1ms (up to 90%FS)
    Insulation 100MĪ©/250VDC
    Medium Water, oil, fuel, or other liquid compatible with 316L stainless steel
    Material Gas collector/capillary tube: 316L stainless steel
    Protection head: Aluminium-bronze
    Inflator diameter Φ32mm
    Accessory * 316L stainless steel anti-blocking connector
    Protection class IP65
    Warranty 12 months
    Shipping weight 3.5kg

    Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

    PDF computingHigh Temperature Level Sensor User Manual

    Application
    High temperature submersible level sensor for chemical production

    Chemical Production

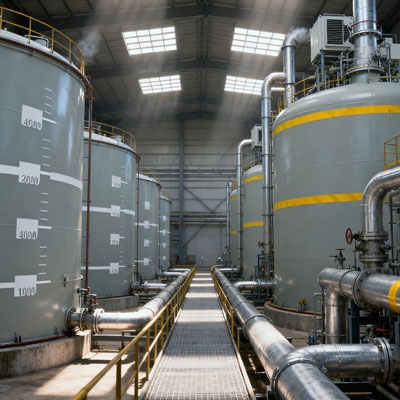

    High temperature submersible level sensor for petrochemical

    Petrochemical

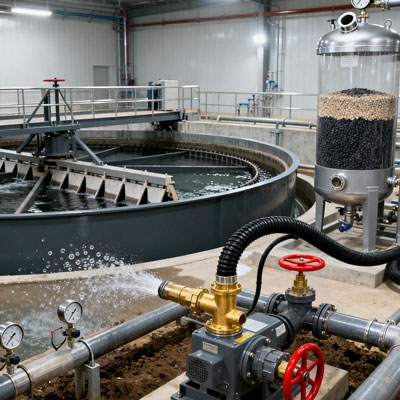

    High temperature submersible level sensor for wastewater treatment

    Wastewater Treatment

    FAQ
    āÆ

    Yes, they will, because hydrostatic pressure is directly related to the density of the medium. When the density changes significantly (e.g., in sewage, brine, or chemical liquids), a fixed density parameter should be set in the sensor selection, or an intelligent level sensor with adjustable density compensation should be used.

    āÆ

    Yes, but the maintenance is very minor. Main maintenance includes cleaning any deposits on the probe surface, checking for cable wear, and ensuring the vent pipe is not blocked. Typically, an inspection every 3-6 months is sufficient; the interval can be shortened for complex operating conditions.

    āÆ

    Yes, but suitable materials must be selected, such as 316L stainless steel, titanium alloy, or a corrosion-resistant PTFE structure. Standard models may fail due to corrosion in highly corrosive media. For seawater environments, it is recommended to add waterproof connectors and lightning protection.
