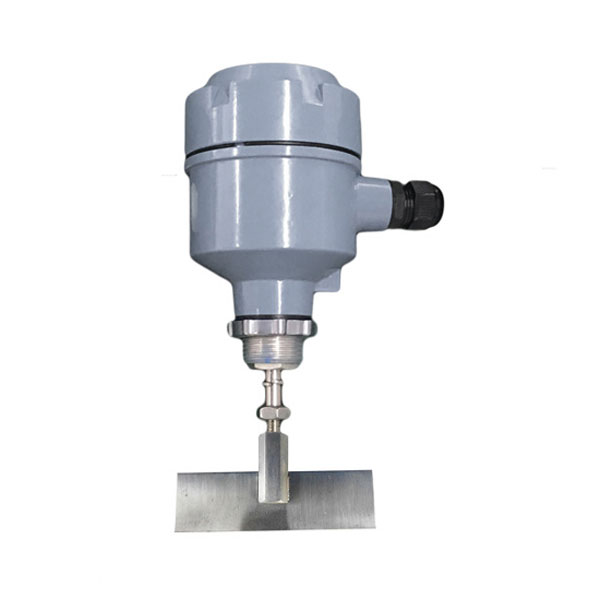

Paddle Level Switch for Silo/Tank, SPDT Contact

This paddle level switch uses a stainless steel blade rotating at 1 rpm with low 4W power consumption. This level sensor supports SPDT contact output and offers multiple power supply options, including 220V AC, 110V AC, and 24V DC. It reliably measures material levels in tanks, bins, hoppers, and silos for solids.

Feature

• The rotary paddle level switch is supported by three bearings, ensuring smooth and dependable operation.
• Its sealing structure effectively blocks dust from entering through the shaft.
• The paddle level sensor provides consistent torque with adjustable force, and when the blades experience overload, the clutch disengages automatically to safeguard the motor.
• Internal parts can be checked and serviced easily without removing the entire tank assembly.
• The IP65-rated junction box provides robust weather resistance, making it well-suited for outdoor environments.
• The switch features a compact design, making installation simple and convenient.
• It can be applied across various fields, including steel, cement, power, feed production, chemical plastics, and fertilizer industries.

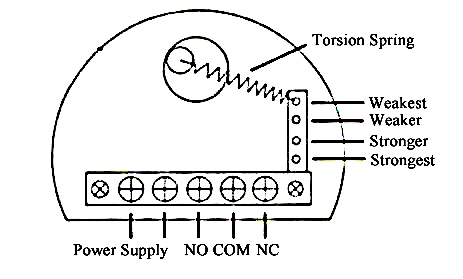

Torque Adjustment
