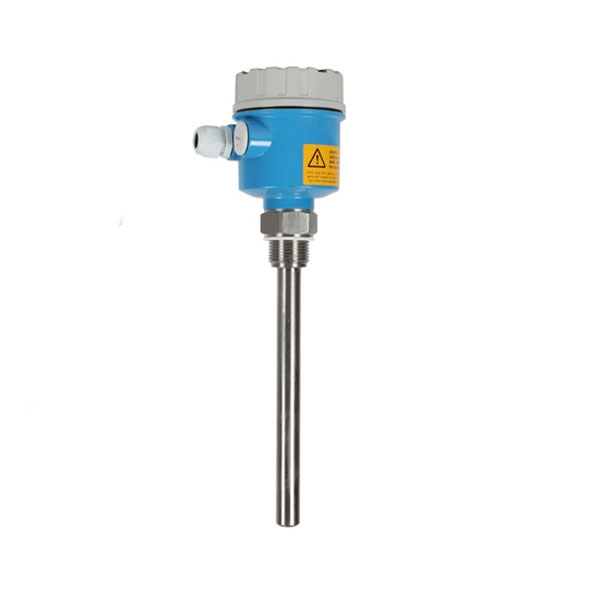

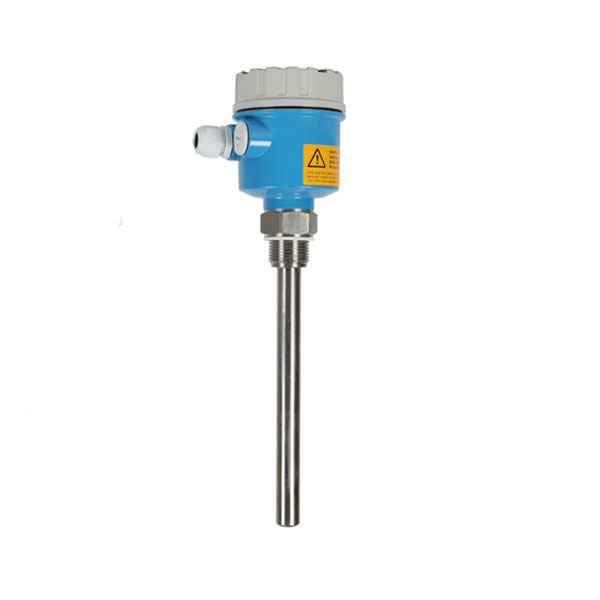

Vibrating Rod Level Switch for Powder/Tanks/Solids, SPDT Contact

This vibrating rod level switch provides reliable point-level detection for powders, granules, bulk solids, and liquids. It operates with optional 220V AC or 24V DC power, features a 250V AC/30V DC 5A SPDT contact capacity, and consumes only 2.5W. The level sensor is widely used in tanks, silos, and containers for level measurement.

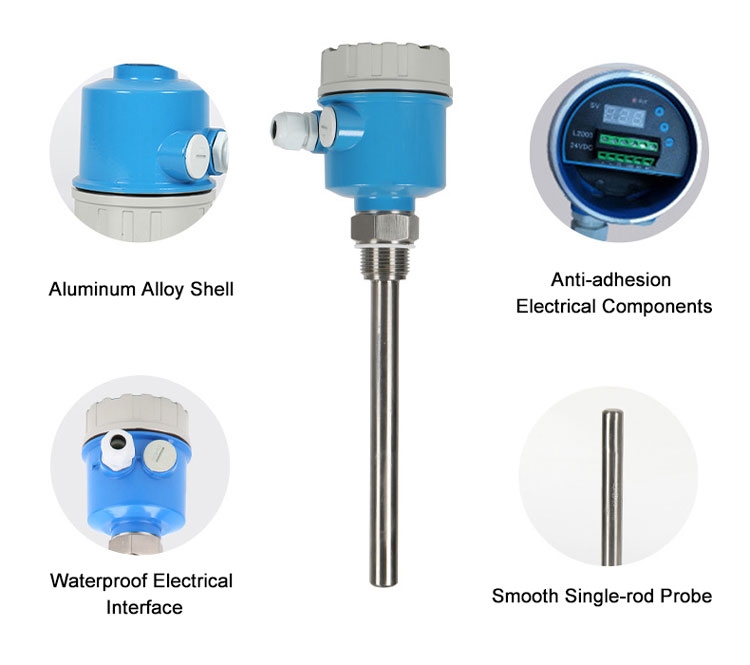

Detail

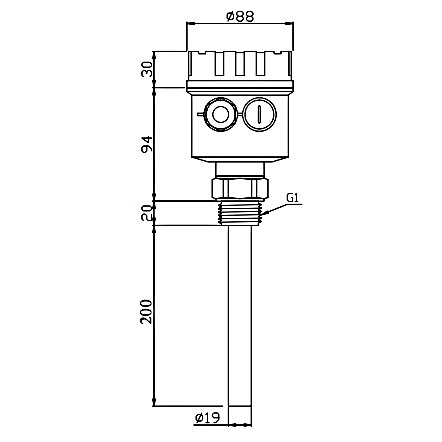

Dimension (Unit: mm)

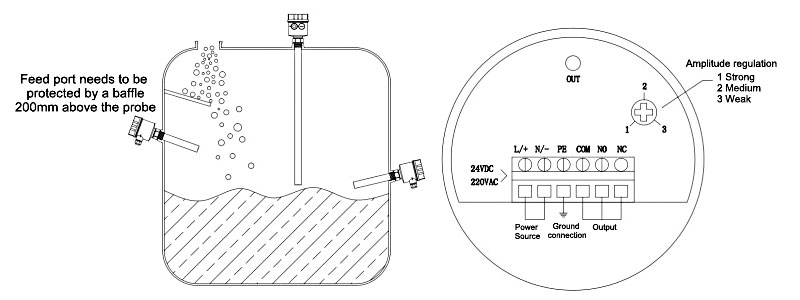

Installation & Wiring

Note*:

• Ensure the junction box outlet faces downward during installation, and firmly secure the cable gland to prevent rainwater from entering and damaging internal components.
• When installing multiple sensing rods, keep a minimum spacing of 300 mm between each switch to avoid interference.
• Do not position the vibrating rod level switch near the feed inlet to minimize impact forces. If it must be placed close to the inlet, mount a protective plate about 200 mm above the sensor.
• An angled mounting method is recommended. Tilting the sensing rod downward at roughly 20 degrees from horizontal enhances sensitivity and reduces damage from falling materials.
• The probe inside the silo must not be used as a step or bent in any way.
• For cleaning, wash with water and use a soft brush. Avoid striking or hitting the device.
• For high-viscosity materials, install the switch vertically from the top or position it at a 20-degree angle from the container wall.
