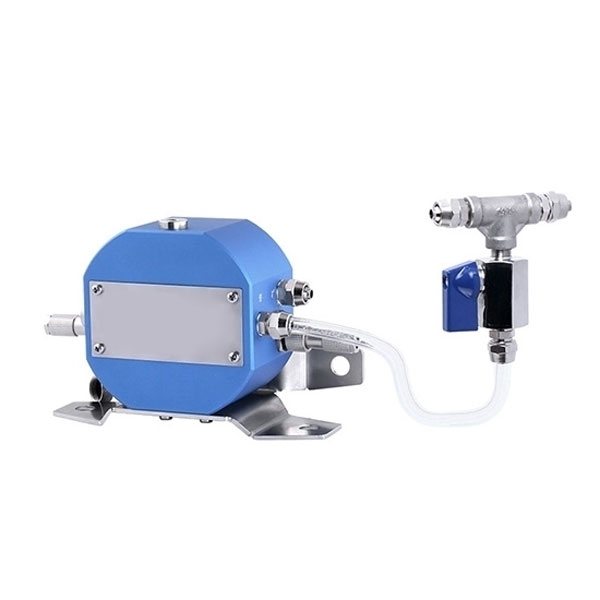

Hydrostatic Liquid Level Sensor for Water/Antifreeze/Silicone Oil

SKU: SUCH-LS-CYW303

$332.62

● Hydrostatic pressure measurement principle for settlement monitoring ● Suitable for measuring water, antifreeze, and silicone oil ● Accuracy up to 0.05% FS, output signal RS485 ● Power supply 5-28 VDC, medium temperature range -40 °C to 60 °C

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

This hydrostatic pressure liquid level sensor is designed for settlement monitoring using a diffused silicon core, delivering accuracy up to 0.05% FS with excellent stability and low temperature drift. It supports RS485 output, operates on a 5-28 VDC power supply, and works reliably with water, antifreeze, and silicone oil across a temperature range of -40 °C to 60 °C. With an IP66 protection rating and a user-friendly hose lead-out design, it is suitable for harsh environments such as dams, bridges, mines, and wind power plants.

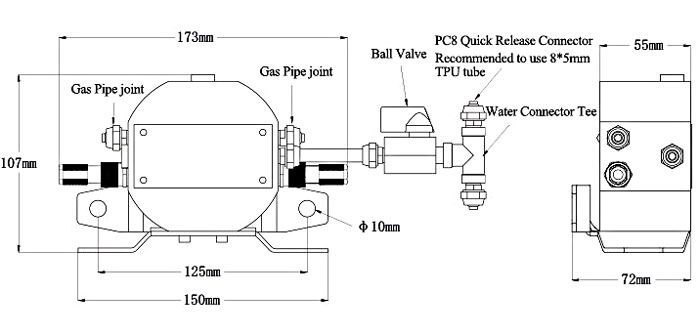

Dimension (Unit: mm)

Hydrostatic liquid level sensor dimension

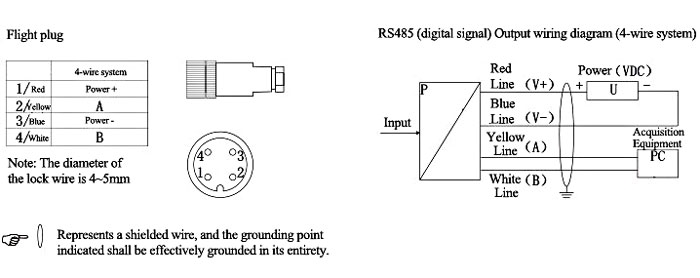

Wiring

Hydrostatic water level sensor wiring diagram

Specs

Measuring medium	Water, antifreeze, silicone oil
Measuring range	0~2500mm H₂O
Medium temperature	-40~60℃
Response frequency	≤5Hz
Output signal	RS485
Power supply voltage	5~28VDC
Accuracy level	0.05%FS (Reference conditions: Temperature 15~25℃, atmospheric pressure 86~106kPa, humidity 45~75%RH)
Repeatability	≤0.01%FS
Hysteresis	≤0.01%FS
Stability performance	±0.05% FS/year
Level overload	200% full scale
Temperature compensation	-10~60℃
Temperature drift	±0.005%FS/℃ (within temperature compensation range), ±0.03%FS/℃ (outside temperature compensation range)
Protection level	IP66 (after electrical connection is complete)
Overall weight	About 1380g (including bracket)
Connection time	20ms
Resolution	0.1mm
Maximum power	≤0.015Us (W)
Insulation resistance	≥100MΩ, 500VDC
Insulation strength	500VAC
Environmental temperature	-40~85℃
Environmental humidity	0%~95%RH (No condensation and no condensation)
Certification	CE, ISO 9001, SGS, SIL

Application

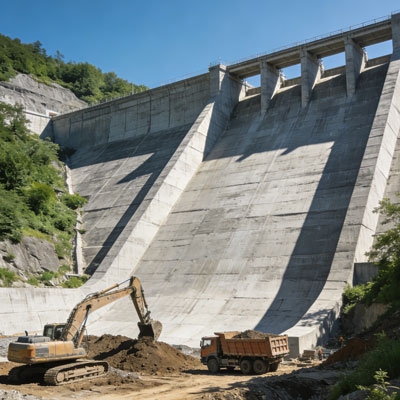

Dam Roadbed

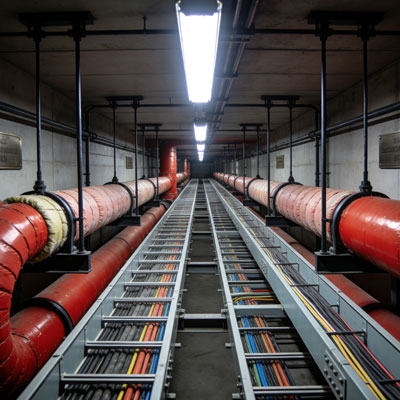

Integrated Utility Tunnel

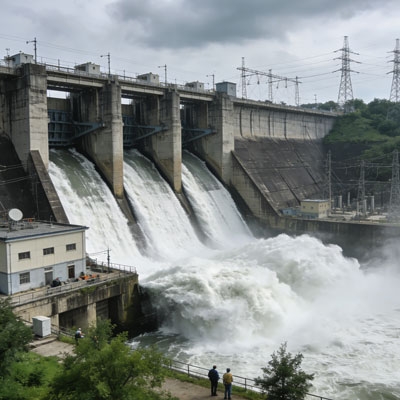

Water Conservancy Project

FAQ

Q1: What is a hydrostatic level sensor? ❯

A hydrostatic level transmitter calculates the liquid level by measuring the static pressure exerted by the liquid on the bottom of the sensor. Its principle is simple and reliable, suitable for various media such as water, oil, and chemical liquids, and can be used in both closed and open containers.

Q2: What factors affect the measurement accuracy of a hydrostatic level sensor? ❯

Measurement accuracy is mainly affected by changes in liquid density, temperature, installation height, and the sensor's own accuracy. When the density is unstable, temperature compensation or a sensor with intelligent calibration can be considered.

Q3: How to determine if a hydrostatic level sensor is damaged? ❯

Common signs of damage include severe zero drift, unstable output signal, and readings that remain unchanged for extended periods or fluctuate wildly. This can be determined by comparing the calibration value with the actual liquid level.
