RF Admittance Type Level Switch for Solids, SPDT Contact

SUCH RF admittance type level switch with SPDT output, contact capacity 250V AC 5A, optional supply voltage 220V AC or 24V DC. This level sensor features low power use and flexible voltage options, making it easy to integrate into different systems. It is widely used in various types of silos, containers, and pipelines for empty and full material measurement.

Feature

• The RF admittance type level switch features a completely enclosed, integrated construction with built-in digital electronics and no moving components. Once installed, the zero point can be set a single time without repeated adjustments.
• Its digital circuitry minimizes the effects of temperature and humidity changes, eliminating the need for seasonal zero-point recalibration. The optimized design helps avoid false triggers from material buildup on the probe and maintains stability under varying process conditions.
• This type of level sensor performs reliably in harsh environments such as extreme heat, high pressure, heavy dust, and sticky media, providing precise level detection for both solids and liquids.
• With a straightforward digital zero-setting process, users can complete initial calibration quickly, reducing setup complexity and boosting operational efficiency.

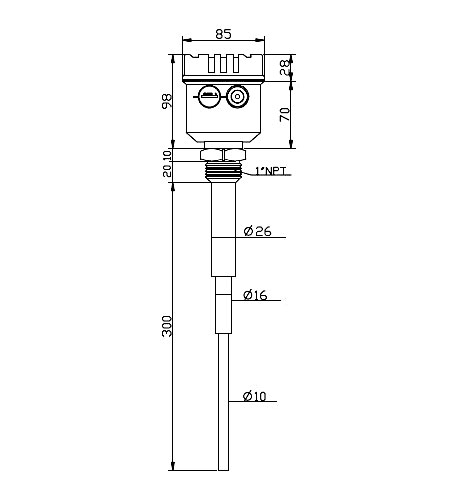

Dimension (Unit: mm)

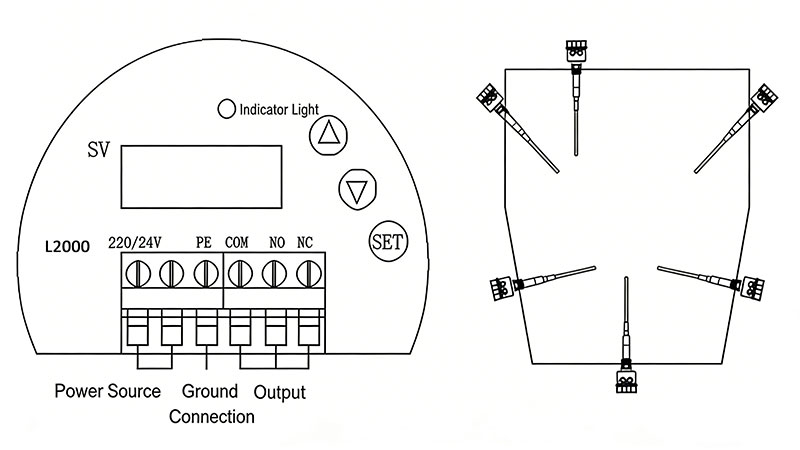

Installation & Wiring
