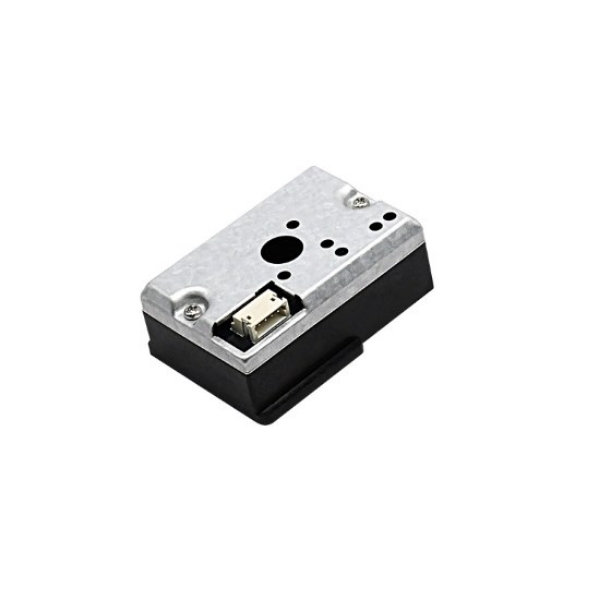

Infrared Particulate Matter Sensor, PM2.5

SKU: SUCH-DS-IPM
$48.66
● PM2.5 detection accuracy ±15μg/m³ ● Particle size range 1~10μm , concentration range 0~1000μg/m³ ● Response time 8 seconds, data refresh frequency 1 second ● Small size, working temperature -20 ~ 75 ℃
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

High-quality infrared particle matter sensors can be used to detect the concentration of PM2.5 in the air. SUCH infrared PM sensor uses the principle of light scattering to detect the concentration of particles in the air (particle size between 1~10μm). The particle concentration range is 0~1000μg/m³, with a long life and fast response speed. It is suitable for household air purifiers, car air purifiers, residential and commercial air conditioners, HVAC systems, various indoor air quality monitors and other equipment.

Feature

  • Strong anti-interference ability, low power consumption.
  • The infrared PM sensor has a fast response time of only 8 seconds.
  • Wide measurement range, 0~1000μg/m³ range.
  • Integrated MCU, can output the concentration value.

Dimension (Unit:mm)

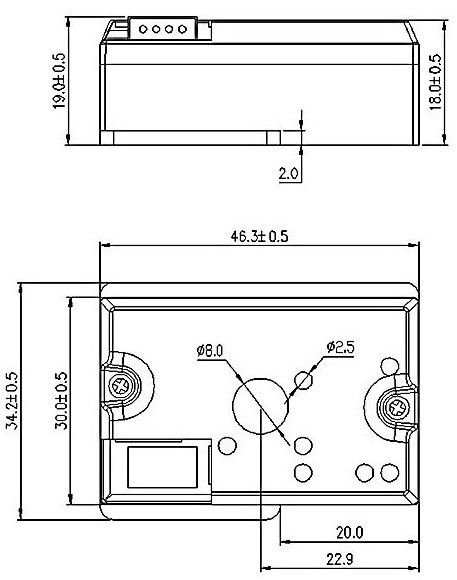

Infrared particulate matter sensor size

Wiring

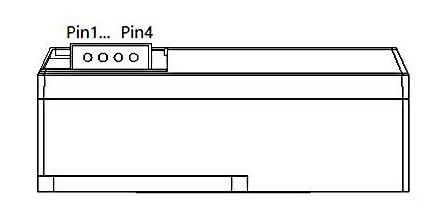

Infrared particulate matter sensor wiring

Pin Function
Pin1-GND Ground
Pin2-VCC Power
Pin3-RXD UART receives communication data
Pin4-TXD/PWM UART sends communication clock/PWM output



Working Principle

Infrared PM sensors are designed based on the principle of light scattering. When infrared light strikes particulate matter, light scattering occurs. The sensor detects the signal change of the scattered light and calculates the concentration of the particulate matter based on the intensity of the electrical signal. The electrical signal is proportional to the intensity of the detected light. The electrical signal is amplified by an amplifier, and then a series of calculations and calibrations are completed by a microcontroller, which finally outputs the value of the particulate matter concentration.

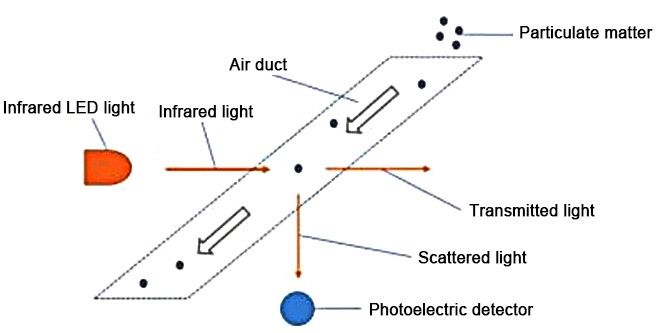

Infrared particulate matter sensor working principle

Specs
Supply Voltage 4.8~5.2 VDC
Working Current 10mA (typical value)
Standby Current 2mA (typical value)
Measurement of Particle Size 1~10μm
Particle Concentration Range 0~1000μg/m³
PM2.5 Concentration Measurement Accuracy ±15μg/m³ (0~100μg/m³)
±15% reading (100~1000μg/m³)
Data Refresh Frequency 1s
Power-on Stabilization Time 60s
Response Time 8s
Lifespan >5 years
Dimensions 46.3*34.2*19mm
Working Temperature -20~75℃
Storage Temperature -40~85℃
Application
Smart home

Smart Home

Smart car

Smart Car

Smart agriculture

Smart Agriculture

FAQ


An infrared dust particle matter sensor is a sensor that uses an infrared light source and a photodetector to measure the concentration of suspended particles in the air.



The infrared dust particle matter sensor has a simple structure, small size, low cost, and low power consumption, and is suitable for embedded use in home appliances, air purifiers, and portable devices. It has a fast response and can meet general air quality detection needs.



Infrared PM sensors are cheaper and have lower power consumption, suitable for scenarios that are sensitive to cost and energy consumption. Laser PM sensors are more expensive but suitable for precision monitoring and high-demand environments.
