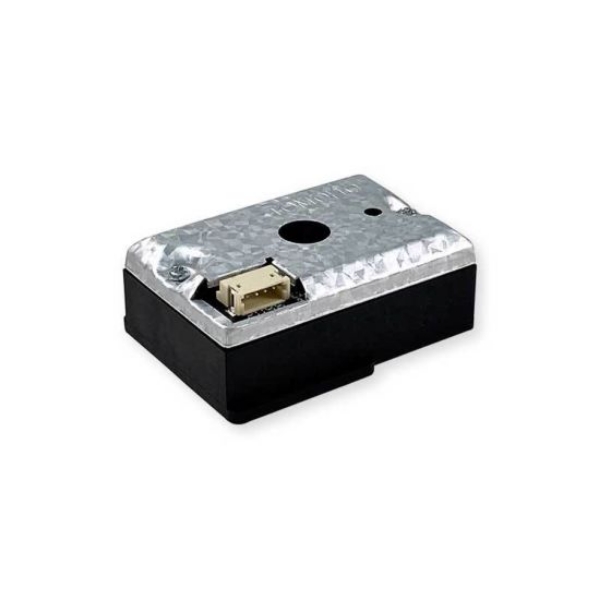

Dust Detection Sensor, PM0.3-PM10

SKU: SUCH-DS-DScD
$72.76
● Measurement of dust particle range PM0.3~PM10 ● Output concentration 3~800μg/m3, output mode PWM ● Operating voltage 5V±0.2V, output accuracy less than 15μg/m3 ● Operating temperature -20℃~+75℃, operating humidity 0-95%RH
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The good price dust detection sensor can detect air quality in the range of PM0.3~PM10, with an operating temperature of -20℃~+75℃ and a PWM output mode. SUCH dust detection air quality sensors can be widely used in HVAC and refrigeration fresh air control, indoor air quality monitoring, agricultural and animal husbandry production process monitoring, and can also be used for air quality monitoring in other small spaces.

Feature

  • Good quality, cigarette smoke and dust in the house can be detected.
  • The dust air quality sensor has a filter to prevent dust and has strong anti-interference ability.
  • Dust detection sensor has a wide range of applications, and is more convenient and practical to use.

Detail

  1. Pre-installed with a large particle dust primary filter to guarantee the proper functioning of the sensor.
  2. Sensitive reaction, cigarette smoke and house dust can be detected.
  3. Simple to operate, easy and convenient to use, with a wide range of applications.
  4. The dust detection sensor is reasonably constructed with compact dimensions.

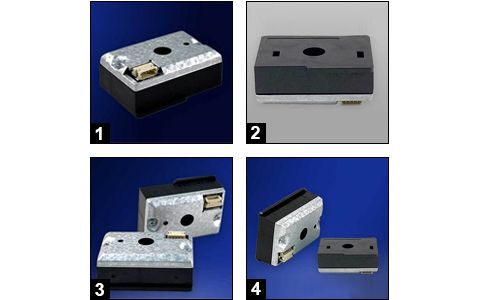

Dust Detection Sensor Details

Specs
Working Voltage 5V±0.2V
Working Temperature -20℃~+75℃
Working Humidity 0-95%RH
Measuring Range PM0.3~PM10
Output Concentration 3~800μg/m3 (PWM output 0.4:1 coefficient)
Output Accuracy 0~75μg/m3: ≤15μg/m3
>75μg/m3: ≤15%
Output Mode PWM
Application
Air conditioning

Fresh Air System

Air Conditioning

Air Conditioning

Air Purifier

Air Purifier

FAQ


A dust detection sensor is a device that detects suspended particles in the air (such as PM2.5, PM10) and is used to assess air quality.

Dust sensors usually work by infrared or laser scattering. When particles pass through the sensor detection area, they scatter light, which is then received by the photodetector and converted into an electrical signal to measure the particle concentration.

Keep the air inlet unobstructed to avoid clogging by dust or water vapor. Clean the air inlet regularly with dry gas or soft tools. Avoid high humidity or oil-smoke environments, and install dust filters if necessary.
