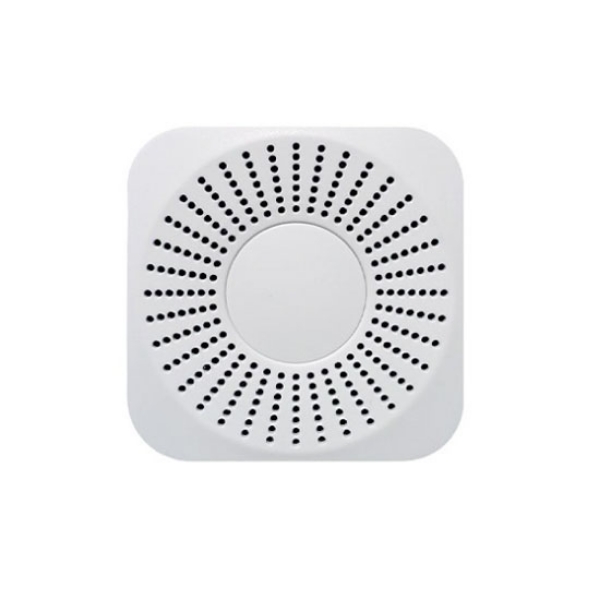

Indoor Air Quality Sensor, Temp & Hum/O2/TVOC/CO2/CH2O

This is a multi-parameter air quality sensor that supports real-time detection and output. It has compact circuit design and high sensor integration, ensuring stable signal transmission and 24-hour continuous monitoring. SUCH indoor air quality sensor utilizes independent sensor probes for each gas and supports measurements of temperature, humidity, O2, TVOC, CO2, and formaldehyde (CH2O). It operates on DC 10V~30V with a current below 200mA, provides a 4-20mA output, and comes in a flame-retardant ABS housing. Suitable for smart agriculture, industrial production, IoT air quality monitoring, public venues, and smart homes.

Feature

• Counterflow Vent Design: The air sensor has a counterflow vent structure for improved measurement accuracy; the ABS housing is flame-retardant and heat-resistant.
• Multi-Gas Integration: Independent probes for each gas, compact layout with high integration and space efficiency.
• 24/7 Real-Time Monitoring: Stable signal output supports continuous 24-hour online monitoring and real-time upload.
• Independent Sensor Probes: Each gas is detected using its own sensor probe, ensuring the air pollution sensor delivers accurate and reliable results.

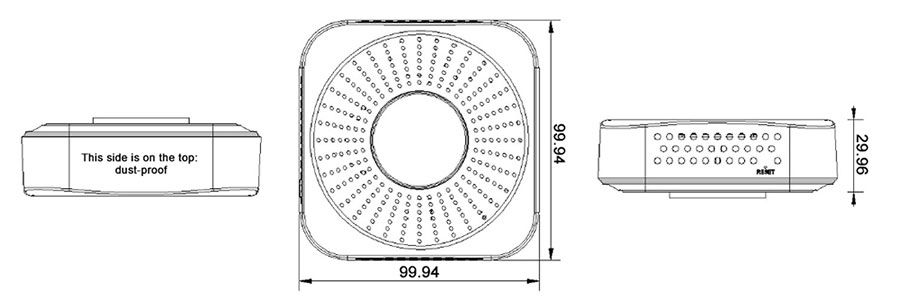

Dimension (Unit:mm)

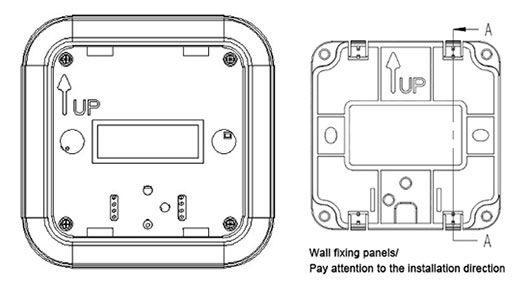

Installed Method

Wiring Instruction

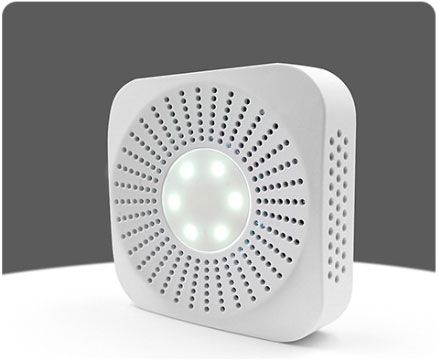

Convection Hole

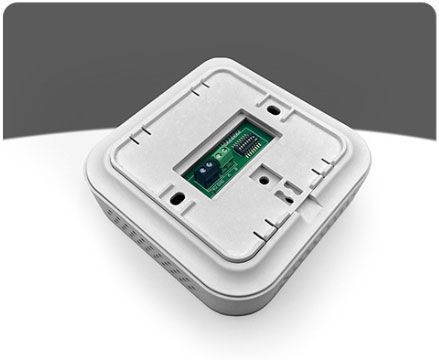

RS485 Output
