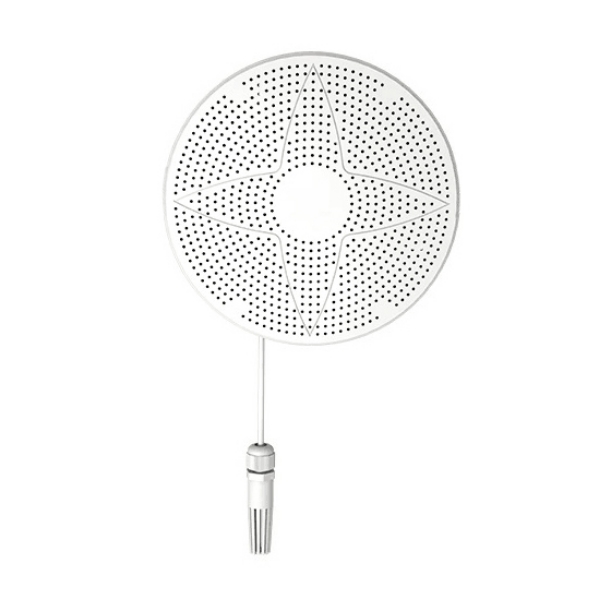

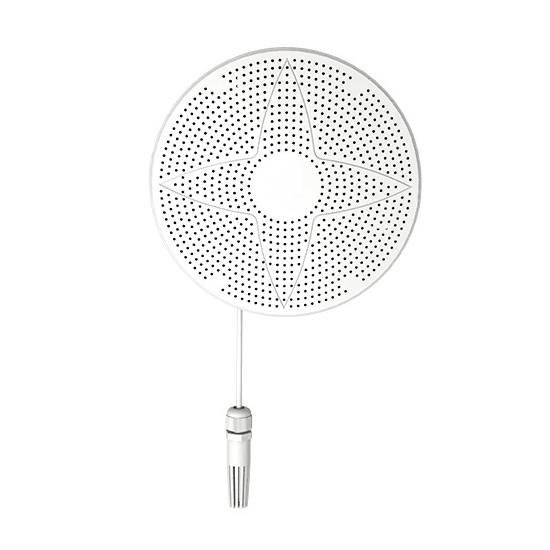

PM2.5/PM10 Air Particle Sensor, RS485/WiFi Output

SKU: SUCH-AQS-PM2510

$96.87

● Test PM2.5/PM10/CO2/O3, range 0~1000ug/m3, resolution 1ug/m3 ● RS485/WiFi output signal selectable ● Supply voltage 10-30V DC ● Dense openings, ABS flame retardant material

Output Signal *
Other Function *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH PM2.5/PM10 pollution detection sensor has a wide measurement range of 0-1000 μg/m³ with a resolution of 1 μg/m³, offering RS485 or WiFi output and supporting a 10-30V DC power supply. CO2/O3 measurement function can be added optionally. Made of ABS flame-retardant material with dense openings, it supports wall or ceiling installation. Designed with USB driver-free multi-factor integration and dual-frequency acquisition technology, PM sensor ensures intelligent control, fast response, and high accuracy even in complex environments. SUCH air quality sensor includes automatic calibration with up to 10% consistency, and its probe structure offers strong anti-interference capability. Ideal for HVAC systems in buildings, airports, and energy-efficient construction projects.

Feature

USB driver-free, multi-factor combination, industrial-grade design, multi-signal transmission.
Intelligent control, overrun linkage, unique dual-spell acquisition technology.
Precision measurement and control for rapid response to complex environments.
Dual-frequency acquisition and auto-calibration technology with up to 10% consistency.
Probe epitaxial design Highly resistant to interference Accurate data.
Wide range of air pressure from 0-120kPa.

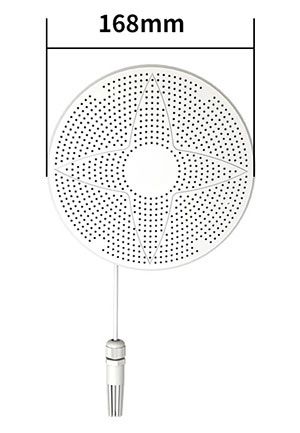

Dimension (Unit:mm)

PM2.5/PM10 air particle sensor size

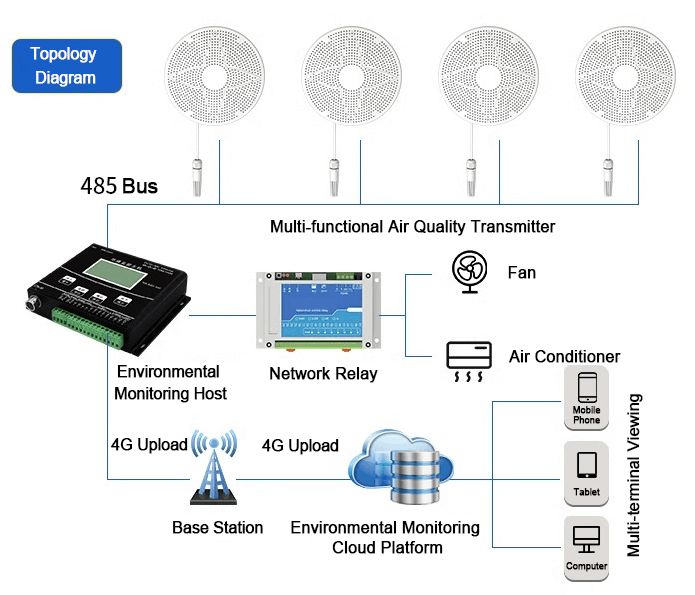

Intelligent Control

pm2.5 pm10 air particle sensor intelligent control

Dual-frequency Acquisition / Auto-Calibration Technology

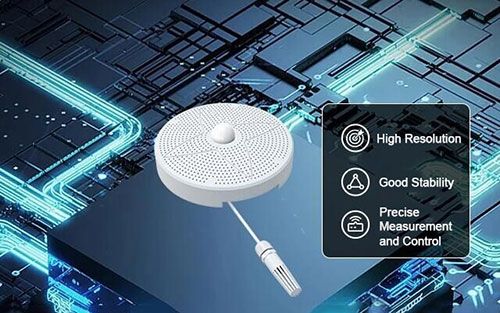

pm2-5 air particle sensor dual frequency acquisition

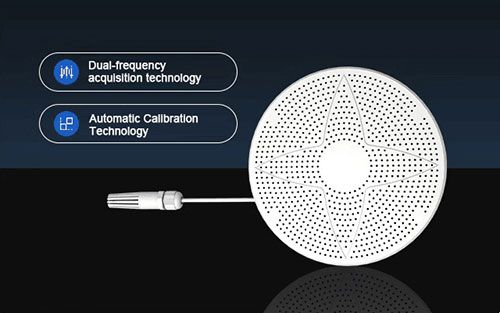

pm2-5 air particle sensor auto calibration technology

Specs

Power Supply	DC 10-30V
Max Power	0.5W (24V DC)
Detection Parameters	PM2.5, PM10
Range	0~1000ug/m3
Resolution	1ug/m3
Working Environment	Temperature: -10°C to 55°C, Humidity: 0% to 95% RH (No Condensation)
Signal Output	RS485, 4G, Wi-Fi
Material	ABS
Installation	Wall-mounted, Ceiling-mounted

Temperature/HumidityCO2/O3 Detection Parameters

Temperature
Range	-40°C to +120°C (default -40°C to +80°C)
Resolution	0.1°C
Precision	0.5°C(25°C)
Humidity
Range	0%RH-100%RH
Resolution	0.1%RH
Precision	3%RH (60%RH,25°C)
CO2
Range	0~5000ppm
Resolution	lppm
Precision	+(50ppm+5%FS)
O3
Range	0~10ppm
Resolution	0.01ppm
Precision	±6%FS(@5ppm, 25°c, 50%RH)

Application

PM2.5/PM10 Sensor for School

PM2.5/PM10 Sensor for Terminal

Indoor PM2.5/PM10 Sensor

FAQ

Q1: Can I use multiple sensors in a single monitoring system? ❯

Yes, with RS485 bus topology, multiple sensors can be connected in series, each with a unique Modbus address.

Q2: What should I do if the air quality sensor stops transmitting data? ❯

Check power supply, communication wiring (RS485), or WiFi signal status. If needed, reconfigure network settings or check protocol compatibility.

Q3: How often does the PM sensor require maintenance? ❯

In normal indoor use, monthly cleaning of the air inlet is recommended. In dusty environments, check more frequently to maintain accuracy.
