    Picture of Outdoor Air Quality Sensor, Analog/WiFi Output Picture of Outdoor Air Quality Sensor, Analog/WiFi Output Picture of Outdoor Air Quality Sensor, Analog/WiFi Output

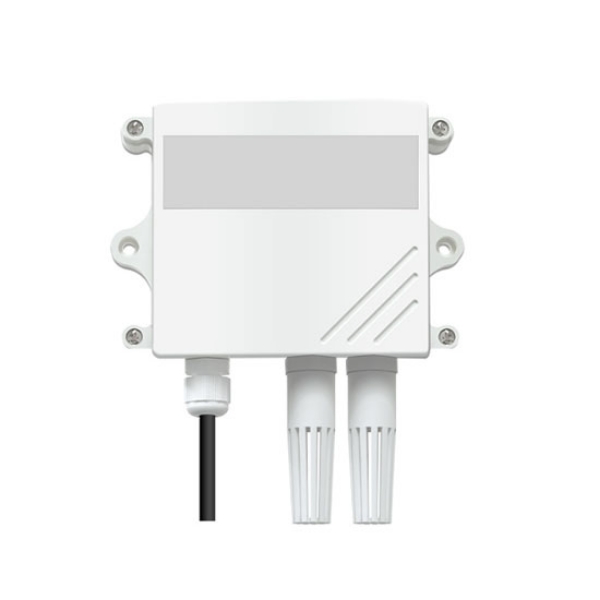

    Outdoor Air Quality Sensor, Analog/WiFi Output

    1 review(s) | Add your review
    SKU: SUCH-AQS-OUTD
    $99.87
    ● Outdoor PM1, PM2.5 & PM10 particle monitoring ● Multiple outputs: RS485, 4-20mA, WiFi & 4G ● Weather-resistant wall-mounted design ● Suitable for construction sites, warehouses & weather stations
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Outdoor air quality sensor is a wall-mounted sensor for outdoor dust and air pollution monitoring. It measures PM1, PM2.5, and PM10 to help users monitor airborne particles, construction dust, road pollution, and ambient air quality. With RS485, 4-20mA, analog, WiFi output options, it is suitable for weather stations, smart city projects, industrial sites, warehouses, construction sites, and outdoor environmental monitoring systems.

    Feature

    • Data Automatic Calibration: Uses dual-frequency data collection and automatic calibration for precise measurement with minimal error.
    • Core Features: High sensitivity, automatic calibration, standard protocol, dual-frequency collection, anti-interference, and secondary development capabilities.
    • Stable Data with No Drift: Advanced laser attenuation prevention ensures long-term data stability.
    • High-Density Material Enclosure: ABS material, wall-mount design, no screw holes, and easy installation for space-saving.
    • Multiple Signal Outputs: Supports RS485/4-20mA/0-5V/0-10V/WIFI/4G, suitable for various environmental needs.

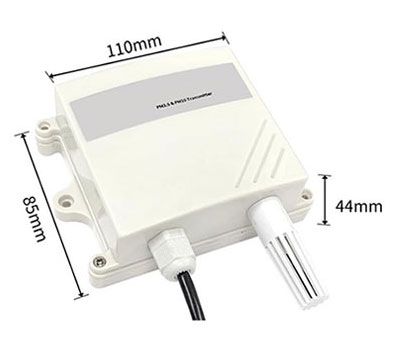

    Dimension (Unit:mm)

    Outdoor air quality sensor dimension

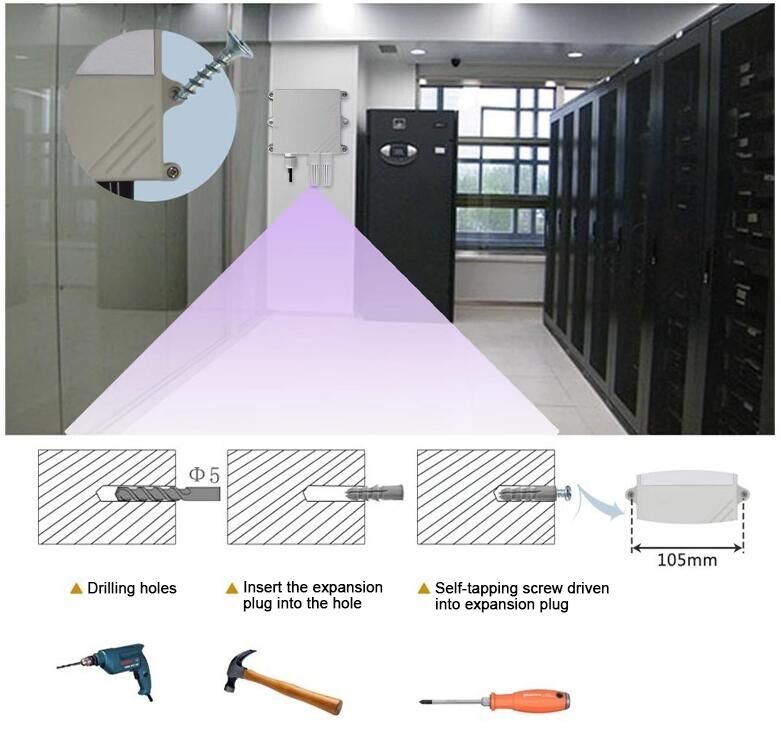

    Installation Instruction

    Outdoor air quality sensor installation

    Wiring Instruction

    Outdoor air quality sensor RS485

    RS485

    Outdoor air quality sensor analog

    Analog

    Specs

    RS485, Analog Type

    DC Power Supply (default) 10~30V DC
    Power Consumption 0.5W
    Working Temperature and Humidity -20°C~+60°C°C, 0%RH~95%RH Non-condensing
    Communication Interface 485 communication (ModBus-RTU protocol) Baud rate: 2400, 4800 (default), 9600 Data bit length: 8 bits Parity: no Stop bit length: 1 bit Default ModBus communication address: 1
    Parameter Setting Configuration through the 485 interface with the provided configuration software
    Resolution
    PM2.5/PM10/PM1.0 1ug/m³
    Temperature 0.1°C
    Humidity 0.1%RH
    Accurate
    Particle Counting Efficiency 50%@0.3um, 98%@>=0.5um
    PM2.5 Accuracy ±3%FS (@ 0~100μg/m3, 25°C, 50%RH)
    Humidity ±3%RH (60%RH, 25°C)
    Temperature ±0.5°C(25°C)
    Measurement Range
    PM2.5 0~1000ug/m3
    PM10 0~1000ug/m3
    PM1.0 0~1000ug/m3
    Temperature -40~+80°C
    Humidity 0%RH-100%RH
    Response Speed <90s
    Warm-up Time <2min
    Installation Wall-mounted


    WiFi Type

    Power Consumption 0.3W(24VDC)
    Power Supply 10~30VDC(Average current<85mA)
    Measurement Range 0-20000ug/m3
    Accuracy 20% or 30ug/m³ whichever is greater(@1000ug/m;, 25°C,50%RH)
    System Warm-up Time 2min(usable), 10min(maximum accuracy)
    Response Time <6s
    Resolution lug/m³ Item
    Working Environment -20°C~+60°C, 0%RH~95%RH Non-condensing
    Data Upload Time Default 10s/time, 1s~65535s programmable
    Data Acquisition Time 2s/time
    WIFI Communication Parameters 802.11b/g/n
    Security Security Type WEP/WPA-PSK/WPA2-PSK, Encryption type WEP/TKIP/AES
    Application
    Dust environment

    Dust Environment

    Outdoor meteorology

    Outdoor Meteorology

    Incineration pollution

    Incineration Pollution

    FAQ
    ❯
    • Flexible deployment: compact size, supports solar power supply, easy to install
    • Real-time networking: WiFi output for centralized data management and early warning
    • Controllable cost: more cost-effective compared to larger site monitoring systems

    These advantages make it very suitable for grid monitoring layout or building urban air quality heat map system.

    ❯
    • Analog output provides a continuous voltage or current signal (e.g., 0–5V, 4–20mA), ideal for integration with PLCs, industrial controllers, or data loggers.
    • WiFi output enables wireless data transmission to cloud platforms, mobile apps, or web dashboards, making it suitable for smart city projects or remote environmental monitoring.
    ❯

    This depends on the type of output and cable specification:

    • Voltage signals (e.g. 0-5V) Short transmission distance, usually less than 20 meters
    • Current signals (e.g. 4-20mA) are highly resistant to interference, up to 100 meters or more.
    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Timothy | 5/7/2026 3:08 AM
    Perfect for Industrial Use
    I installed this sensor at a construction site to track dust and pollution levels. It provides reliable readings and integrates easily with our monitoring system via 4-20mA and 0-10V outputs. Very durable and built to withstand tough outdoor conditions.
