    Picture of Air Quality Sensor Module, TVOC/CO2/CH2O/AQI Picture of Air Quality Sensor Module, TVOC/CO2/CH2O/AQI Picture of Air Quality Sensor Module, TVOC/CO2/CH2O/AQI

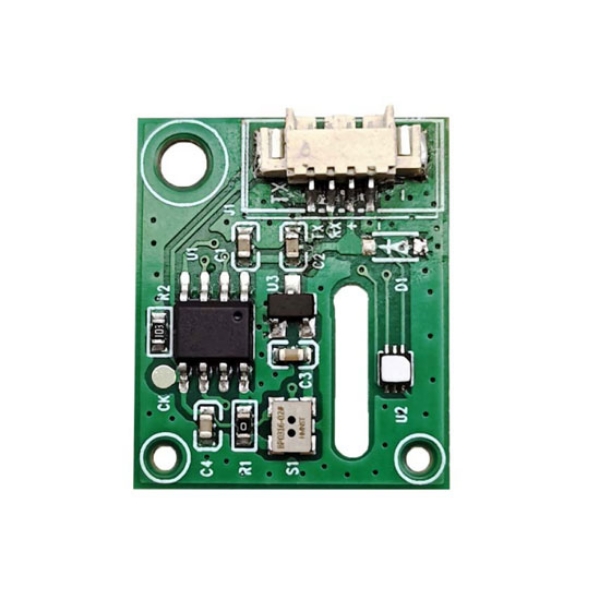

    Air Quality Sensor Module, TVOC/CO2/CH2O/AQI

    1 review(s) | Add your review
    SKU: SUCH-AQS-MOD
    $9.99
    ● Multi-gas air quality module: TVOC, CO₂, HCHO & AQI ● UART output for embedded air monitoring systems ● Fast response sensor module with low power use ● Compact design for smart home, greenhouse & IoT devices
    This product has a minimum quantity of 10
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    SUCH air quality sensor module is a compact air sensing module for embedded air quality monitoring and device integration. It detects TVOC, CO₂, CH₂O, and AQI, with UART output and 3.3V/5V logic level for microcontrollers and monitoring equipment. It is suitable for developers, smart home device makers, industrial equipment builders, and environmental monitoring projects in air quality stations, greenhouses, ventilation devices, and custom IAQ systems.

    Feature

    • High-Precision Chip: Offers high performance, good functionality, and low power consumption for the air quality sensor module.
    • Fixed Mounting Hole: Convenient installation without the need for drilling, strong environmental adaptability, and easy to install with a stable and secure mount.
    • Quality Sensor: Provides fast response and stable signal output for accurate measurements in air sensor applications.
    • Premium Materials: Made from high-quality materials to ensure durability and longevity.
    • Long Service Life: Designed for extended use, reducing the need for frequent replacements.
    • Stable Performance: Consistent and reliable performance, ensuring long-term functionality without degradation.
    • Durability: Built to last, ideal for various environments in air quality sensor applications.
    • Compliance with Standards: Adheres to industry regulations for quality and safety.

    Detail

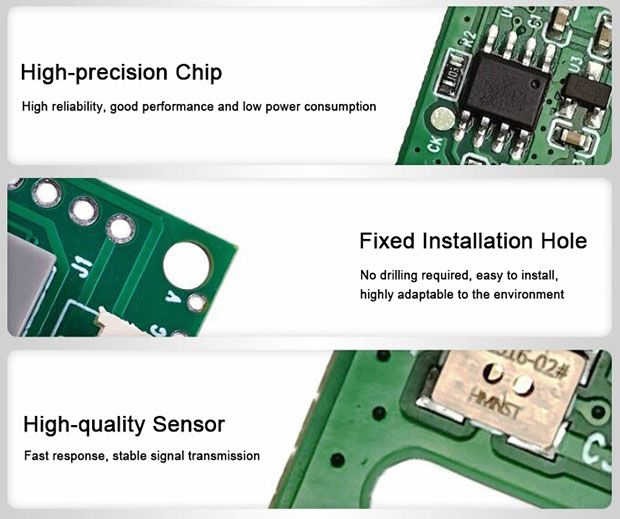

    Air quality sensor module features

    Specs
    Detection Gases TVOC, CO2, HCHO, AQI
    Output Data UART output (3.3V/5V logic level)
    Operating Voltage 3.3V/5V DC (No reverse polarity protection)
    Preheating Time 60 seconds
    Response Time ≤10 seconds
    Recovery Time ≤120 seconds
    TVOC Range 0-2000 mg/m3
    Carbon Dioxide (CO2) Range 400-5000 ppm (Effective value)
    Formaldehyde (CH2O) Range 0-1.000 mg/m3
    Temperature Range -45°C to +130°C (Recommended operating range: -10°C to +50°C)
    Humidity Range 0-100% RH
    AQI Range 1~6
    Accuracy ≤±0.010 mg/m3 or ±10% of the maximum measured value
    Resolution 0.1 ppm
    Working Temperature -20°C to +50°C
    Working Humidity ≤95% RH
    Storage Temperature -20°C to +60°C
    Lifespan 5 years (in air with temperatures between 0°C and 35°C)
    Size 24*20*3 mm (L*W*H), excluding the sensor module

    Note: Carbon dioxide and formaldehyde values are calculated from TVOC and are for reference only.

    Application
    Air quality testing station

    Air Quality Testing Station

    Intelligent agricultural greenhouse

    Intelligent Agricultural Greenhouse

    Industrial product

    Industrial Production

    FAQ
     ❯

    No, this sensor specifically detects TVOC, CO2, CH2O, and AQI. It is not designed to measure other air pollutants like nitrogen dioxide (NO2) or sulfur dioxide (SO2).

     ❯

    The air sensor is built with high-quality materials to ensure durability and a long service life, reducing the need for frequent replacements.

     ❯

    Yes, it adheres to industry regulations for safety and quality, ensuring reliable and consistent performance.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Felix | 6/1/2026 1:29 AM
    Rock steady air quality sensor module, saved us tons of custom coding
    Got this air quality sensor module to prototype a smart ventilation fan update for a client. Hooked it up via the serial pin headers. It updates the TVOC and CO2 fields synchronously without lagging the MCU loop. Baseline calibration handles ambient shifts nicely right out of the box. Super reliable little board.
