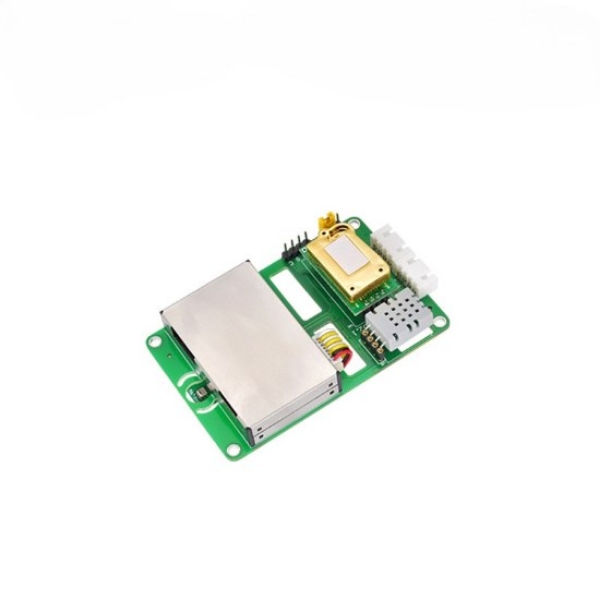

    Dust Sensor Module, PM2.5/Temperature/Humidity/VOC/CO2

    0 review(s) | Add your review
    SKU: SUCH-DS-AEM1000
    $108.92
    ● Detect temperature and humidity, VOC, CO2 and PM2.5 ● Operating voltage 5.0V DC, operating current 140mA ● Output method RS485/UART ● Operating temperature 10~50℃, operating humidity 5~80%RH
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    The multifunctional dust sensor module is an environmental monitoring product equipped with a variety of high-performance sensors, with functions such as temperature and humidity detection, VOC, CO2, PM2.5, etc. Communication protocol of SUCH dust sensor module is standard MODBUSRTU, with stable performance, meeting the application needs of smart home, smart agriculture and other fields.

    Feature

    • 5V DC power supply.
    • Digital signal output (RS485/UART).
    • Quick response, strong anti-interference ability.
    • Highly integrated, multi-signal data acquisition.
    • Strictly calibrated and tested for stable performance.

    Dimension (Unit:mm)

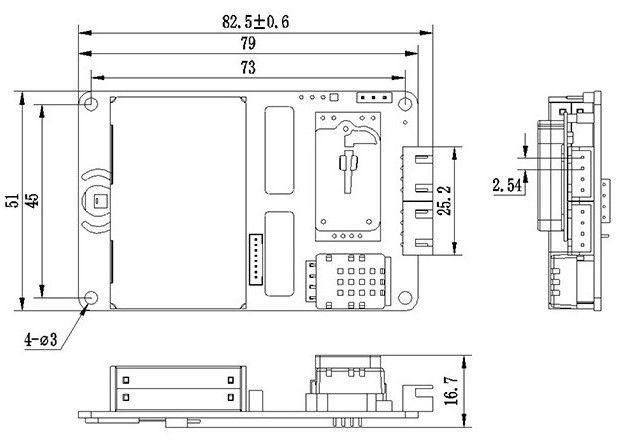

    Dust sensor module dimension

    Wiring

    Dust sensor module wiring

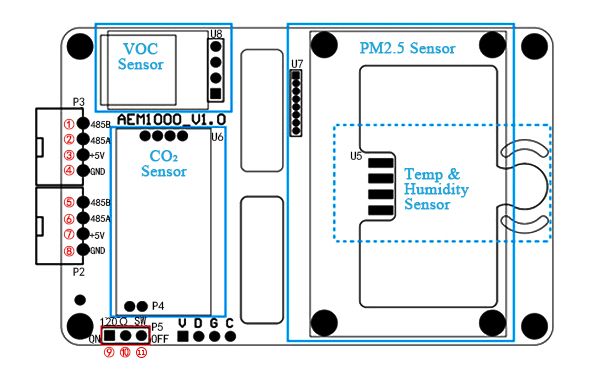

    The figure above shows the pin definition of the dust sensor module. U5, U6, U7, and U8 are interfaces for the temperature and humidity sensor, CO2 sensor, PM2.5 sensor, and VOC sensor, respectively. The installation locations are in the four blue boxes in the figure above, where the solid line box refers to the installation on the front of the circuit board, and the dotted line box refers to the installation on the back of the circuit board. P2 and P3 are external interfaces, used for communication and host power supply, respectively. P5 is a 3PIN jumper cap interface for RS-485 long-distance communication.

    Pin Function
    Pin1-RS485B R485 communication B terminal
    Pin2-RS485A R485 communication A terminal
    Pin3-5V DC power supply
    Pin4-GND Ground wire
    Pin5-RS485B/TX RS-485 communication B terminal/UART communication transmitting terminal
    Pin6-RS485A/RX RS-485 communication A terminal/UART communication receiving terminal
    Pin7-5V DC power supply
    Pin8-GND Ground wire
    Pin9-120Ω Jumper cap short-circuit Pin9, Pin10: Parallel access to 120Ω
    Jumper cap short-circuit Pin10, Pin11: Cancel access to 120Ω
    Pin10-RS485A
    Pin11
    Specs
    Working Voltage 5.0V DC
    Working Current 140mA@5V (peak 264mA@5V)
    Data Update Cycle 2s
    Output Mode RS485/UART
    Warm-up Time ≥120s
    Working Temperature 10~50℃
    Working Humidity 5~80%RH


    PM2.5/Temperature/Humidity/VOC/CO2 Detection Parameters

    PM2.5
    Range 0~1000μg/m3
    Resolution 2μg/m3
    Accuracy Range ±20μg/m3 (0~100)
    ±20% reading (100~1000)
    Response Time 3s
    Long-term Drift /
    Temperature
    Range -40℃~+80℃
    Resolution 0.05℃
    Accuracy Range ±0.5℃
    Response Time 8s
    Long-term Drift ≤1℃/yr
    Humidity
    Range 0~99.9%RH
    Resolution 0.024%RH
    Accuracy Range ±5%RH
    Response Time 8s
    Long-term Drift ≤1%RH/yr
    VOC
    Range 0~99.999ppm (9.999 and above are extended ranges)
    Resolution 2% of the measured value
    Accuracy Range 25%F.S
    Response Time 10s
    Long-term Drift /
    CO2
    Range 400~5000ppm
    Resolution 1ppm
    Accuracy Range ±(500ppm+5% reading)
    Response Time 90s
    Long-term Drift /
    Application
    Smart Vehicle

    Smart Vehicle

    Smart Greenhouse

    Smart Greenhouse

    Coal Mine Safety

    Coal Mine Safety

    FAQ
    ❯

    In industrial or high-dust environments, it is advisable to add a dust cover or air filtration module to the sensor to prevent large particles from entering, which could cause obscuring or corrosion. At the same time, the working environment should be kept ventilated and dry.

    ❯

    Avoid airflow interference, prevent moisture and condensation, perform regular calibrations, and avoid vibrations.

    ❯

    Cost savings, one device replacing multiple standalone sensors. Data synergy, linked analysis of PM2.5 with temperature and humidity. Compact design suitable for embedded applications.
