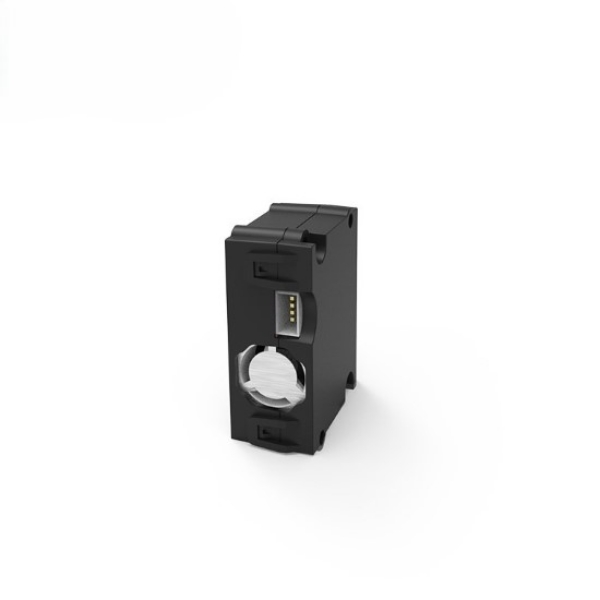

    Automotive Laser Dust Sensor, PM1.0/PM2.5/PM10

    0 review(s) | Add your review
    SKU: SUCH-DS-MPM60
    $107.85
    ● Accurately detects PM1.0/PM2.5/PM10 in the vehicle ● Single response time ≤1s, combined response time ≤10s ● Adopting a long-life laser, output mode is LIN ● Operating temperature range -20~+70℃, working humidity range 0~95%RH
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Factory price automotive laser dust sensors for sale online. SUCH automotive laser dust sensor is an in-vehicle air quality monitoring device that can detect fine particles such as PM1.0, PM2.5, PM10 in the air inside the car, providing long-term air quality monitoring for the vehicle. The dust sensor has a wide operating temperature range (-20℃~ +70℃), high resolution, and short response time.

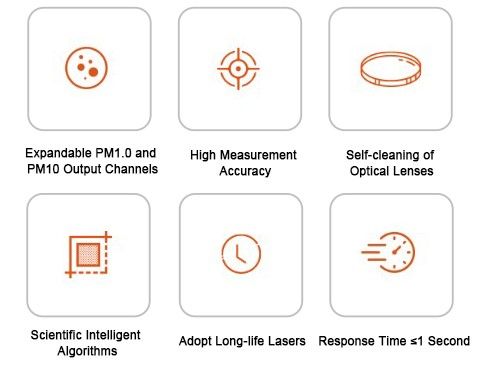

    Feature

    • Expandable PM1.0, PM10 output channels.
    • High measurement accuracy, particle mass concentration range is 0~1000μg/m3.
    • Optical lens is self-cleaning and practical.
    • Scientific intelligent algorithm, particle mass concentration resolution of 1μg/m3.
    • Adopts long-life laser, storage temperature is -40~+85℃.
    • Single response time ≤1s, integrated response time ≤10s.

    Automotive laser dust sensor feature

    Specs
    Particle Detection Types PM1.0, PM2.5, PM10
    Particle Size Range 0.3-10μm
    Particle Mass Concentration Range 0~1000μg/m3
    Particle Mass Concentration Resolution 1μg/m3
    Particle Mass Concentration Consistency ±15%(@100~500μg/m3) ±15μg/m3(@0~100μg/m3)
    Single Response Time ≤1s
    Comprehensive Response Time ≤10s
    Output Method LIN
    Storage Temperature -40~+85℃
    Operating Temperature Range -20~+70℃
    Operating Humidity Range 0~95%RH (no condensation)
    Application
    Exhaust gas detection

    Exhaust Gas Detection

    Automobile air conditioning

    Automobile Air Conditioning

    Smart home

    Smart Home

    FAQ
    ❯

    A car laser dust sensor is a vehicle-mounted device based on the principle of laser scattering. It emits lasers to illuminate particulate matter in the air, detects dust concentration inside/outside the car in real time based on the intensity of reflected light, and feeds the data back to the car air conditioner or air purification system.

    ❯

    Yes. It is recommended to install it at the air outlet of the air conditioner in the car, under the dashboard, and avoid direct sunlight.

    ❯

    Temporary pollution, someone smoking, spraying, or raising dust in the car. Circuit problems, unstable voltage or aging of the line. Environmental interference, extreme humidity), strong electromagnetic field.
