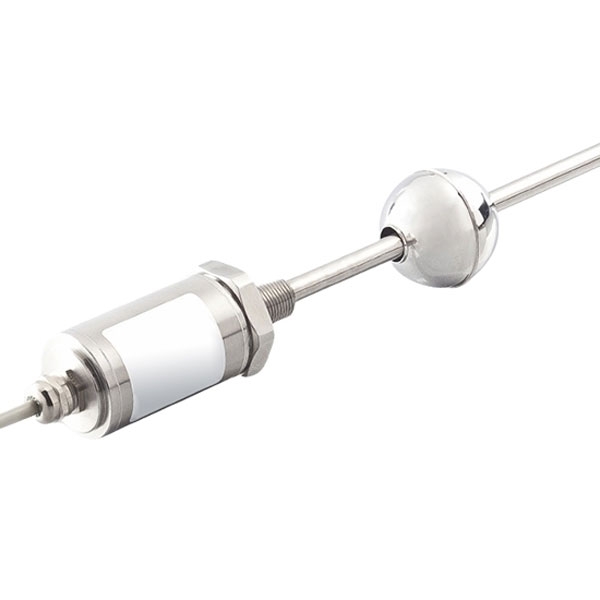

Non Contact Magnetostrictive Liquid Level Sensor, 4-20mA

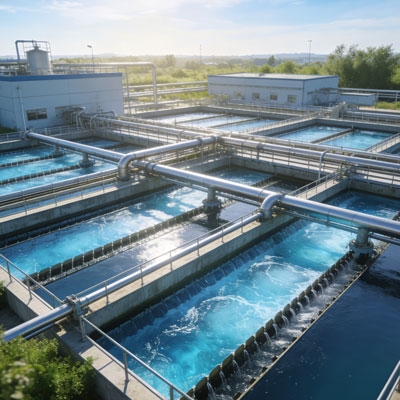

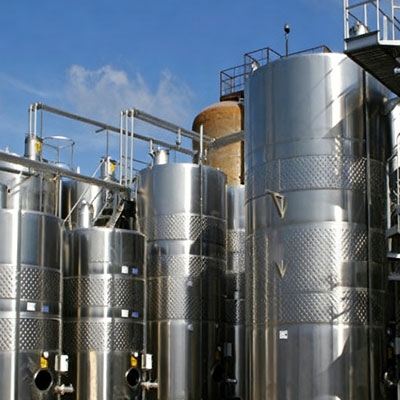

Contactless magnetostrictive float liquid level sensor offers high-precision liquid level measurement with an accuracy of ±0.008% FS over a 300-1000mm measuring range. This non contact water level transmitter operates on 24V DC with a 4-20mA output, features an IP67 protection rating, and maintains stable performance with a temperature drift below 0.007% FS/°C and a fast 0.5ms update rate. Built with a stainless steel rod, aluminum alloy housing, and optional corrosion-resistant floats, it is suitable for storage tanks, water treatment, and irrigation applications.

Feature

• High accuracy and fast response: Magnetostrictive level sensor delivers ±0.008% FS accuracy, temperature drift <0.007% FS/°C, and a 0.5ms update rate for real-time, stable liquid level feedback.
• Rugged and dependable design: IP67-rated non-contact level transmitter with a 316 stainless steel probe and aluminum alloy housing, resistant to oil, fouling, and pressure up to 34MPa for harsh environments.
• Flexible application range: Contactless magnetostrictive level sensor supports a 300-1000mm measuring range with optional standard or corrosion-resistant floats, suitable for tanks, water treatment, and more.
• Easy installation and integration: Powered by 24V DC with a 4-20 mA output, featuring M18×1.5 threaded mounting and direct cable connection for quick setup and reliable operation.

Dimension (Unit: mm)

Installation Diagram

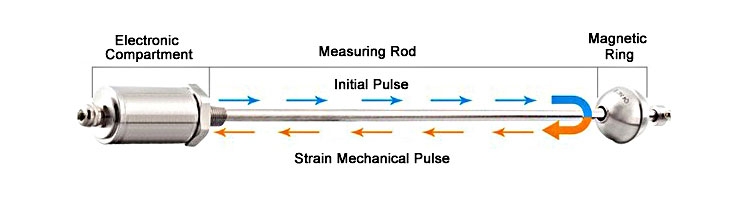

Working Principle
