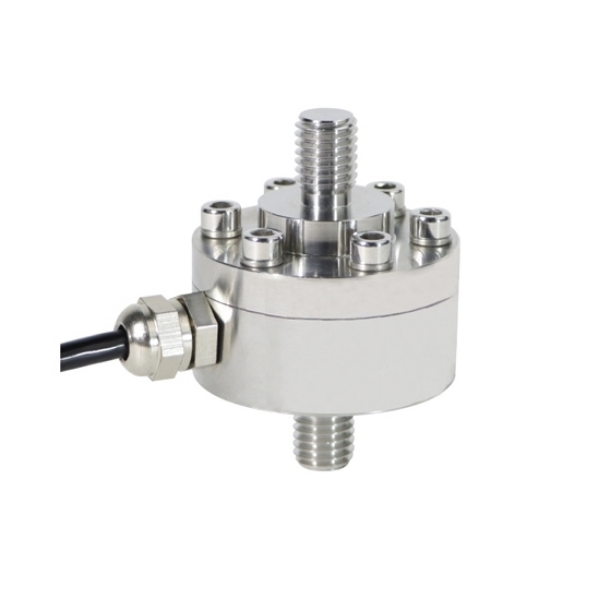

Compact Tension and Compression Load Cell, 0-20kN

SUCH threaded tension and compression load cell features a durable stainless steel housing and supports a variety of range options from 0.5kN to 20kN. It has a rated output of 1.5 to 2.0 mV/V, a zero balance of ±2% F.S., repeatability better than 0.5% F.S., a response frequency up to 10kHz, an impedance of 350/700Ω, an applicable voltage range of 5 to 15V, and an operating temperature of -20°C to 65°C. Compact load cell offers stable performance and an affordable price, making it widely used in scenarios such as automotive press-fitting, automated assembly, consumer electronics, and medical testing.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

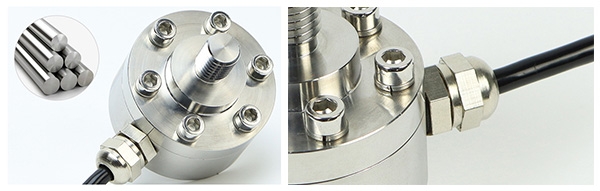

Feature

• Made of 17-4PH high-strength stainless steel with excellent hardenability and strong resistance to mechanical fatigue.
• Robust and durable design to prevent wire damage from pulling or bending.
• Excellent heat resistance with low creep and minimal thermal hysteresis, ensuring long-term stability.
• High overall accuracy with outstanding corrosion resistance, fatigue resistance, and impact resistance.

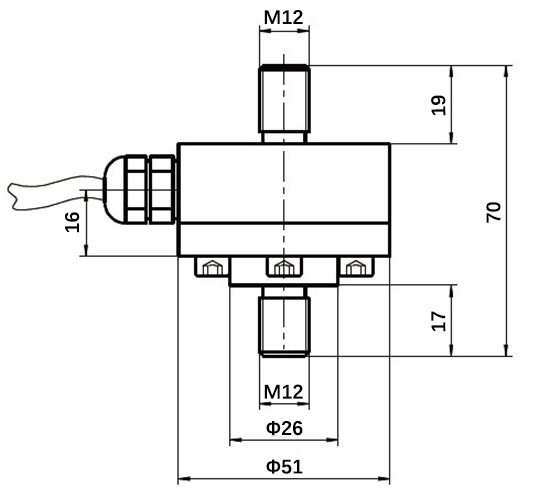

Dimension (Unit: mm)

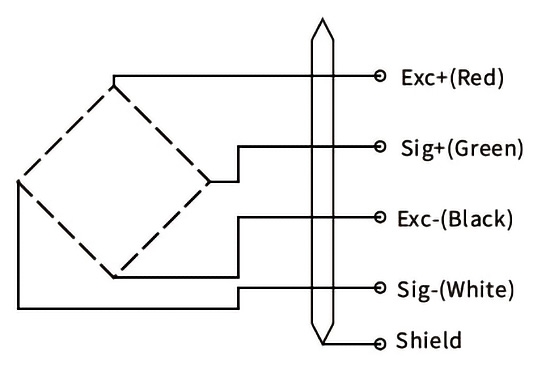

Wiring Diagram

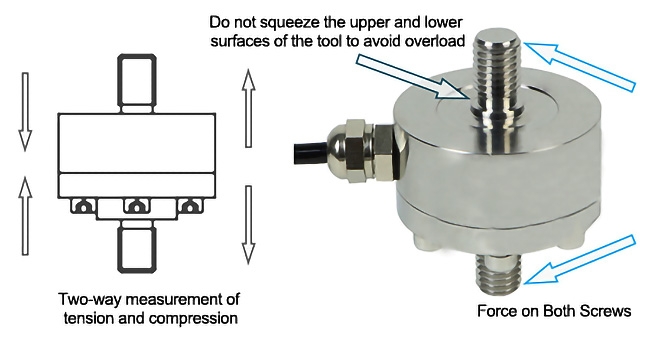

Force Diagram

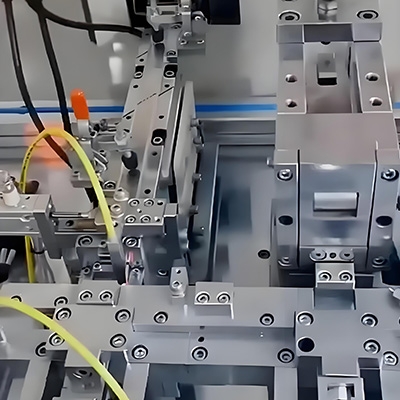

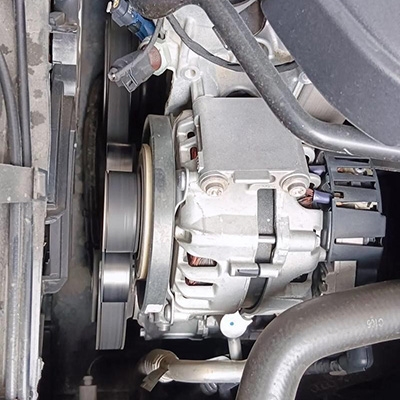

Installation Case
