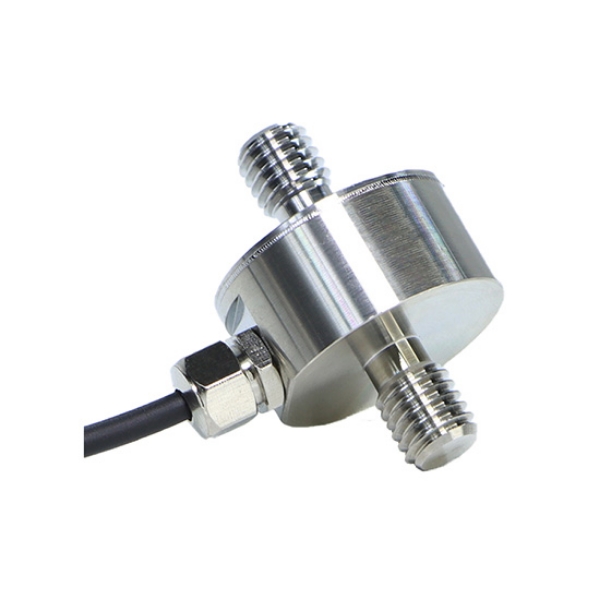

Mini Tension and Compression Load Cell, Stainless Steel

SUCH tension and compression load cell utilizes a fully sealed stainless steel structure with an IP67 protection rating. It can withstand both tension and compression, offers excellent offset load resistance, and features a low profile, making it suitable for space-constrained applications. With a capacity range of 1 kg to 500 kg and customizable options, mini load cell offers an accuracy of 0.3%F.S. and a sensitivity of 1.0-1.5 mV/V. It is widely used in measurement and control applications, including vehicle measurement, test equipment, and laminators.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

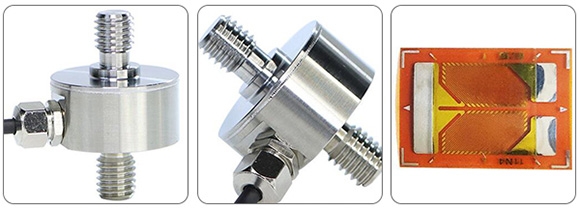

Feature

• Made of high-quality 17-4PH stainless steel, offering high strength, fatigue resistance, corrosion resistance, and excellent durability.
• It provides outstanding high-temperature resistance, making it ideal for use in demanding environments.
• With a compact and lightweight design, the sensor effectively resists offset errors and is suitable for space-constrained applications.
• Widely applicable in automotive assembly, automation, medical testing, and industrial testing.
• Ensures long-term stability and can operate for extended periods without wear.
• It performs efficiently and reliably, maintaining low hysteresis and stable performance even under temperature fluctuations.
• Offers a wide measurement range, enabling accurate measurement of various forces with minimal distortion.

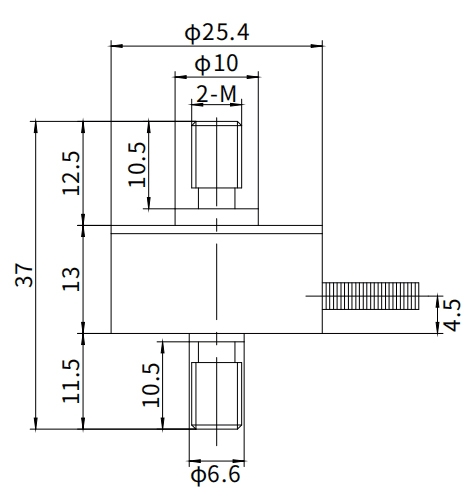

Dimension (Unit: mm)

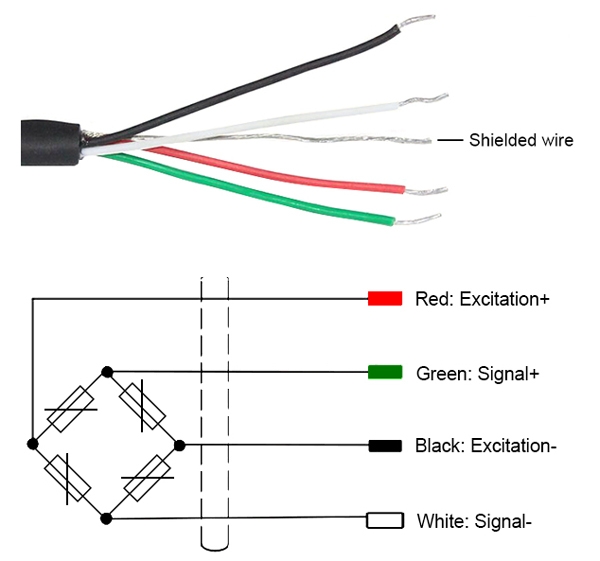

Wiring Diagram

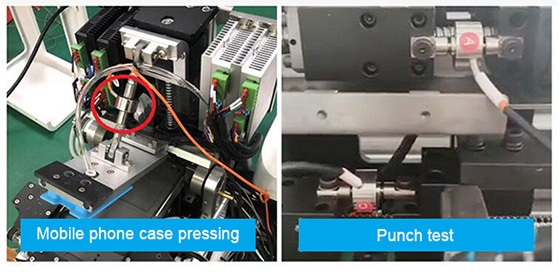

Installation Case
