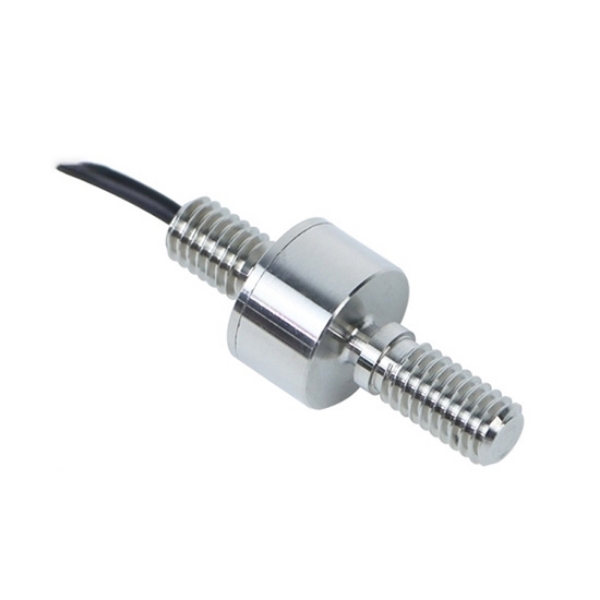

Miniature Tension and Compression Load Cell, 1kg~500kg

Miniature tension and compression load cell for sale online. Made entirely of stainless steel and featuring metal foil strain gauges, it boasts a compact size, high sensitivity (1.0±0.2mV/V), and the ability to withstand both tension and compression. Operating in temperatures from -20℃ to +80℃, SUCH miniature load cell is widely used in force gauges, laminators, welding machines, electronic scales, cement batching silos, dry powder mixers, and industrial automation measurement and control systems. Its range covers 1kg to 500kg, and it can be customized to meet customer requirements.

After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

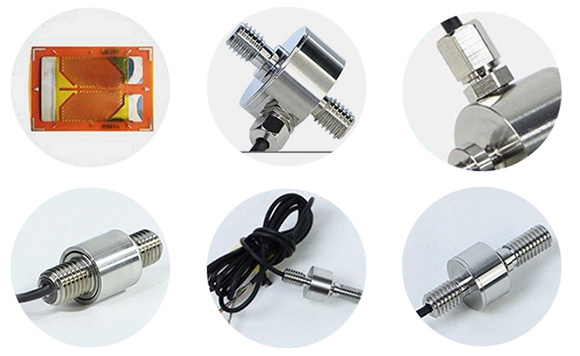

Feature

• Made of stainless steel, it is corrosion-resistant, durable, and long-lasting.
• With a compact design and high measurement accuracy, it is ideal for confined spaces and precise force measurement.
• Suitable for tension and compression force measurement, it is widely used in automotive assembly, medical testing, and robotics.
• Featuring wear resistance, high-temperature resistance, and impact resistance, it ensures reliable operation in harsh environments.
• The waterproof and oil-proof sealed structure effectively prevents contamination and guarantees consistent performance.
• With a well-designed structure, it is easy to install, securely connected, and operates stably.
• Using professional optical welding technology, it is dust- and water-resistant, making it suitable for harsh environments.

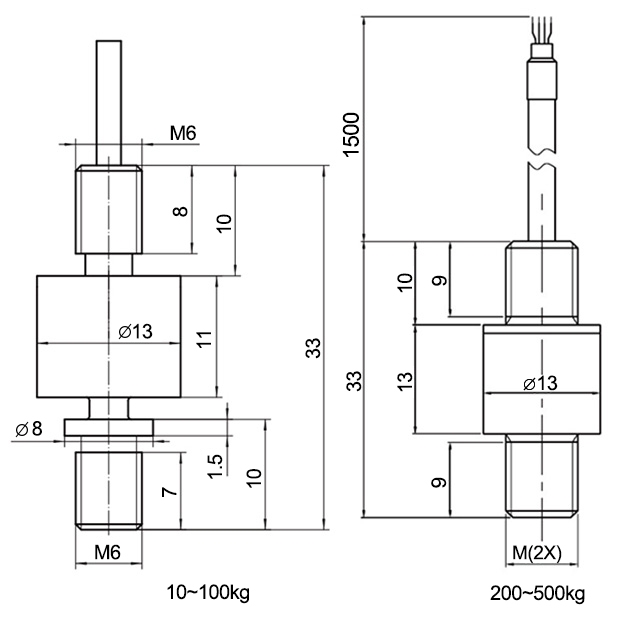

Dimension (Unit: mm)

Wiring Diagram

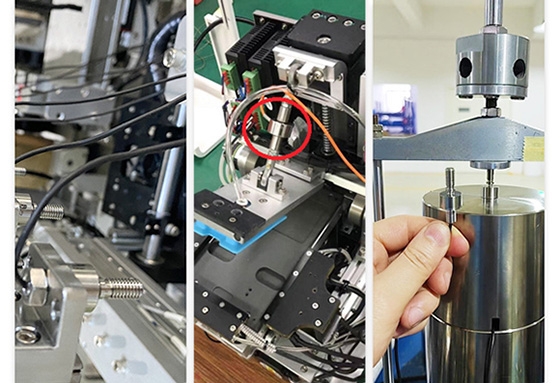

Installation Case
