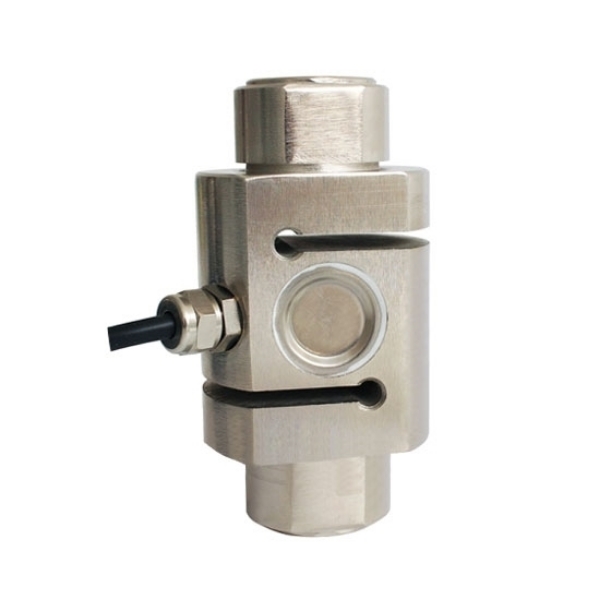

    Accurate Tension and Compression Load Cell, 100kg~20 ton

    1 review(s) | Add your review
    SKU: SUCH-LC-S05
    $105.68
    ● Capacity range 100 kg to 20 tons ● Accuracy 0.05% F.S. ● Sensitivity 2.0 ± 0.1 mV/V ● Operating temperature -20℃ to +65℃
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Precision tension and compression load cell can withstand both tension and compression, and features excellent output symmetry, eccentric load resistance, and a compact design. SUCH tension/compression load cell is suitable for batching scales, hanging scales, and various specialized weighing equipment. Capable of measuring from 100 kg to 20 tons, it can be customized to meet customer needs. Featuring a rugged stainless-steel construction and an operating temperature range of -20°C to +65°C, it offers an accuracy of 0.05% F.S. and a sensitivity of 2.0±0.1mV/V, ensuring easy and reliable installation.

    After purchasing one SUCH load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Made of 42CrMo alloy steel, offering high hardness, high strength, excellent durability, and corrosion resistance.
    • Performs well in humid environments with outstanding corrosion resistance.
    • Provides high accuracy and maintains stable measurements even under extreme conditions.
    • Supports bidirectional measurement, suitable for both tension and compression testing.
    • Designed with threaded holes for easy and secure installation.
    • Built with elastic alloy steel for a robust structure and long service life.

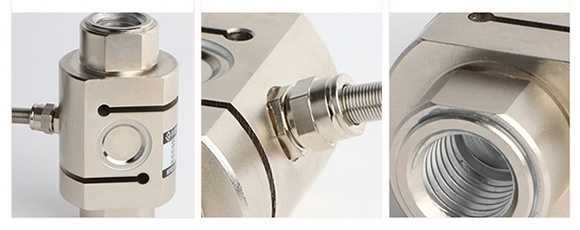

    Tension compression load cell feature

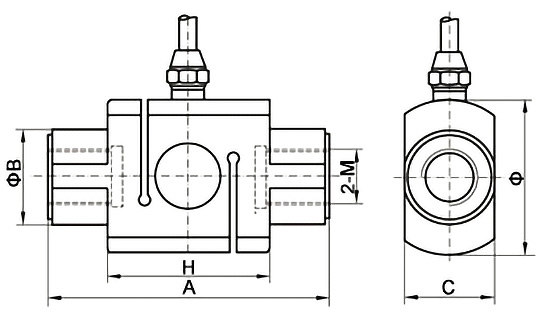

    Dimension (Unit: mm)

    Capacity Dimension (mm)
    A H ΦB Φ M C
    100~500kg 88 58 28 44 M16*1.5 26
    700kg 88 58 32 44 M16*1.5 30
    1~5 ton 120 68 51 63 M22*2.5 48
    7~15 ton 138 94 60 76 M30*3.5 56
    20 ton 156 108 68.5 88 M36*3 76

    Tension compression load cell dimension

    Wiring Diagram

    Tension compression load cell wiring

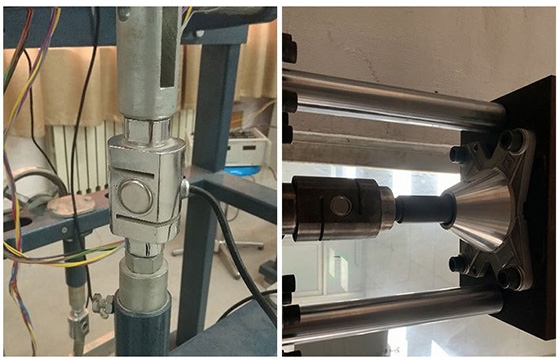

    Installation Case

    Tension compression load cell case

    Specs
    Shipping Weight 1~5kg
    Capacity Range * 100 kg~20 ton
    Matched Display Controller SUCH-LCDC-TY5DA3 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-NTB3K (Click it to the transmitter page)
    Accuracy 0.05%F.S (linearity + hysteresis + repeatability)
    Sensitivity 2.0±0.1mV/V
    Creep ±0.05%F.S/30min
    Zero Output ±1%F.S
    Temperature Effect on Zero ±0.05%F.S/10℃
    Temperature Effect on Output ±0.05%F.S/10℃
    Operating Temperature -20℃~+65℃
    Input Impedance 380±10Ω
    Output Impedance 350±3Ω
    Insulation Resistance ≥5000MΩ
    Safety Overload 150%F.S
    Bridge Voltage (excitation voltage) DC 10V
    Material Alloy steel or stainless steel
    Protection Class IP66
    Cable Length 2m (＜5ton), 5m (≥5ton)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application

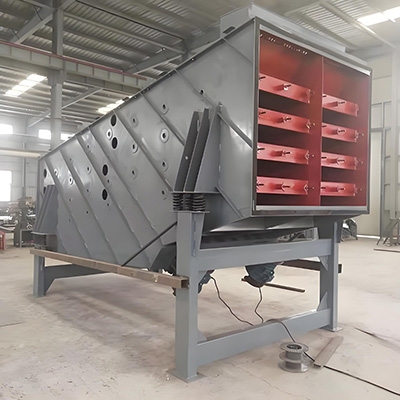

    Batching scales

    Batching Scales

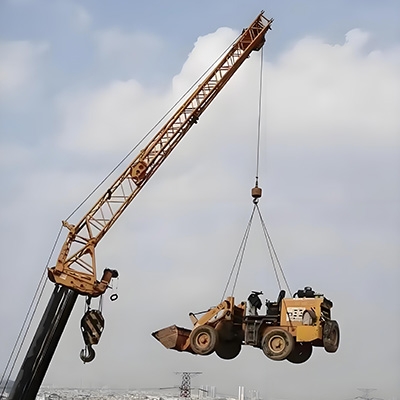

    Crane scales

    Crane Scales

    Electronic scales

    Electronic Scales

    FAQ
    ❯

    Measure the resistance at the input and output terminals and compare with the rated values. Common load cells have two ranges: low resistance (input 400Ω±20Ω, output 350Ω±5Ω) and high resistance (input 800Ω±20Ω, output 700Ω±5Ω). If the values deviate significantly, the load cell may be faulty.

    ❯

    Load cells typically use a strain gauge principle. When the sensor is subjected to a force and experiences a slight deformation, the resistance of the strain gauge changes. This change is converted into a measurable voltage signal via a Wheatstone bridge circuit, thereby obtaining the corresponding weight or force value.

    ❯

    Common applications include batching scales, crane scales, automotive assembly, automation equipment, medical testing, industrial inspection, and materials testing machines.
