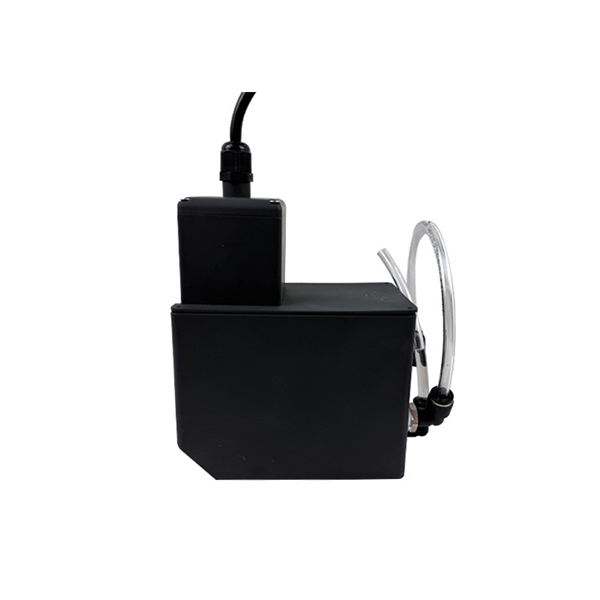

    Picture of Digital Turbidity Sensor for Water, 0~10 NTU, RS485 Picture of Digital Turbidity Sensor for Water, 0~10 NTU, RS485 Picture of Digital Turbidity Sensor for Water, 0~10 NTU, RS485 Picture of Digital Turbidity Sensor for Water, 0~10 NTU, RS485

    Digital Turbidity Sensor for Water, 0~10 NTU, RS485

    1 review(s) | Add your review
    SKU: SUCH-TUS-DTS310
    $1,056.18
    ● Output signal RS485 (MODBUS/RTU) ● Measuring range: 0~10 NTU ● Resolution 0.001 NTU, 0.1℃ ● Housing material: ABS, IP65 protection
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Digital turbidity sensor employs a stable 90° scattered light principle and uses a laser LED light source, featuring strong resistance to external light interference and high measurement accuracy. Its measurement range is 0~10 NTU, and the built-in temperature sensor enables automatic temperature compensation, making it suitable for long-term online water quality monitoring. SUCH turbidity sensor supports RS485 interface and MODBUS/RTU protocol for easy system integration. The housing is made of ABS material and has an IP65 protection rating, allowing for stable operation in various outdoor or industrial environments.

    Feature

    • Designed as a digital sensor with RS485 output and MODBUS/RTU protocol support, making system integration easy.
    • Based on the 90° scattered light principle and equipped with a built-in temperature sensor for automatic temperature compensation to ensure accurate measurements.
    • Closed structural design with strong resistance to external light interference, suitable for complex environments.
    • Uses a laser LED light source with an added optical filtering design to effectively reduce light-source interference and enhance measurement stability.
    • Features low power consumption and anti-interference internal circuitry, ensuring long-term stable operation of the sensor.

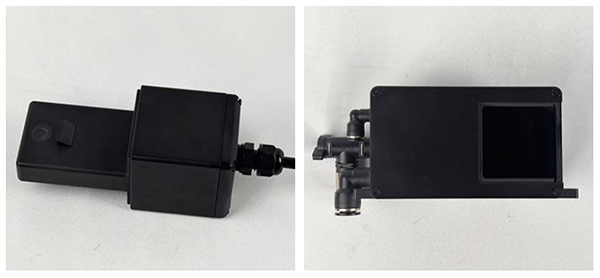

    Digital turbidity sensor feature

    Dimension (Unit: mm)

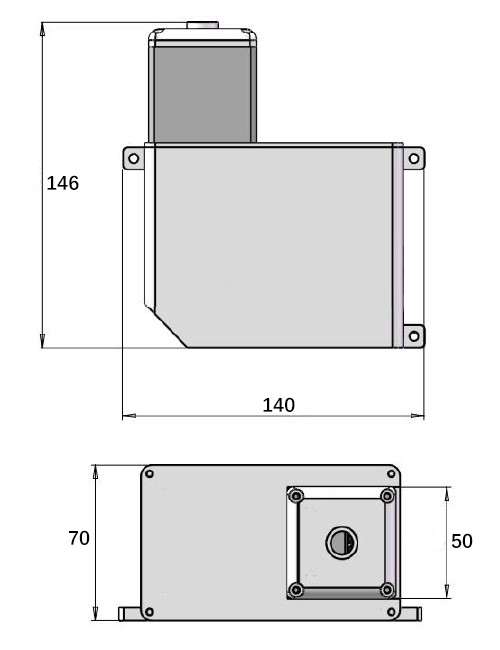

    Digital turbidity sensor dimension

    Wiring

    Wire Type Description
    Brown wire Power supply (12 or 24VDC)
    Black wire Ground (GND)
    Blue wire 485A
    White wire 485B
    Bare wire Shielding layer


    Detail

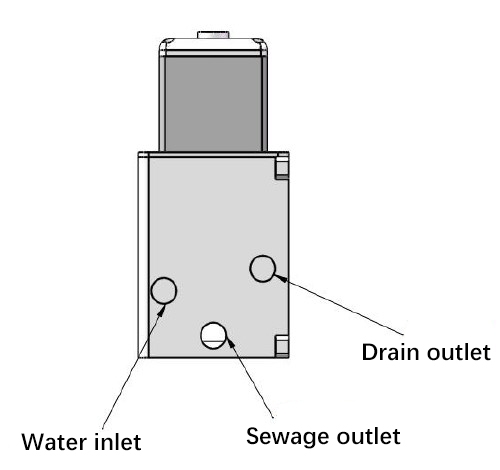

    Digital turbidity sensor detail

    Specs
    Output Signal RS485, MODBUS/RTU protocol
    Measurement Method 90° diffused light method
    Measuring Range 0~10 NTU
    Accuracy ±3% or ±0.1 NTU, whichever is greater; ±0.5℃
    Resolution 0.001 NTU, 0.1℃
    Operating Conditions 0~50℃, 100~500 mL/min
    Calibration Method Two-point calibration
    Response Time 30 seconds (T90)
    Temperature Compensation Automatic temperature compensation
    Power Supply 12 or 24VDC±20%, 30mA
    Dimensions 140*150*70mm
    Protection Rating IP65
    Sensor Housing Material ABS
    Application
    Water supply system

    Water Supply System

    Agriculture

    Agricultural Water Use

    Pipeline water monitoring

    Pipeline Water Monitoring

    FAQ
    ❯

    The digital turbidity sensor operates based on the principle of 90° scattered light, calculating turbidity values by measuring the intensity of light scattered by suspended particles.

    ❯

    Possible causes include: the optical window being covered by dirt, the presence of air bubbles, lack of calibration, unstable power supply, or excessive water flow fluctuations.

    ❯

    It is recommended to install the sensor in an area with stable water flow and no air bubbles, or to use a mounting bracket with an anti-air bubble structure.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Ethan | 6/4/2026 7:37 AM
    Practical Solution for Water Quality Monitoring
    Our facility needed a simple way to monitor water clarity in a pilot treatment project. This digital turbidity sensor fit the range we were looking for and was reasonably easy to install. What stood out was the consistency of the measurements over time. We occasionally clean the probe as part of routine maintenance, and it quickly returns to normal operation afterward. It has helped us identify a few filtration issues earlier than we would have otherwise, which has been useful for day-to-day operation.
