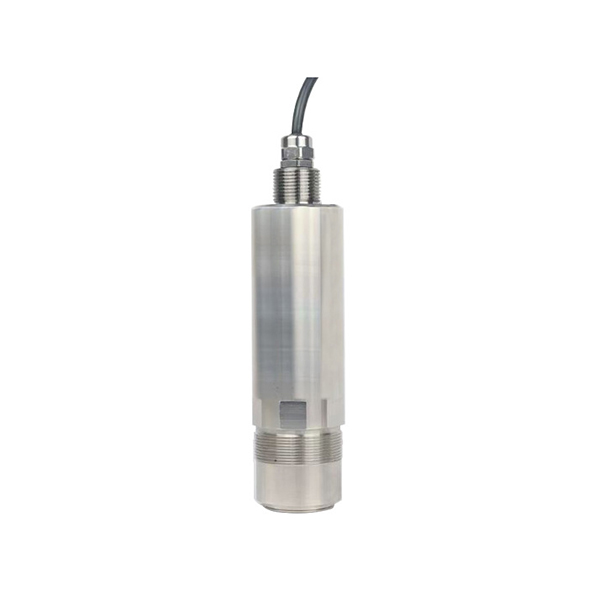

Industrial High Temperature Turbidity Sensor, 0~3000 NTU

Industrial high temperature turbidity sensor is a digital sensor designed for industrial monitoring, featuring a 316L stainless steel body with waterproof and high-temperature resistance. It uses the mature 90° diffused light scattering principle with an infrared LED and fiber-optic light path, providing strong resistance to ambient light interference. SUCH high temperature turbidity sensor outputs RS485 signals via MODBUS/RTU protocol, and includes a built-in temperature sensor for automatic temperature compensation. It delivers a resolution of 0.1 NTU and 0.1 ℃, operates reliably under 0~100 ℃ and <0.5 MPa, and is rated IP68 for long-term online use in harsh industrial environments.

Feature

• Digital sensor with direct RS485 output, supporting MODBUS/RTU communication.
• Based on the 90° light scattering principle with a built-in temperature sensor for automatic temperature compensation.
• Fiber-optic optical path design provides strong resistance to ambient light interference.
• Infrared LED light source with additional optical filtering for enhanced anti-light interference and high measurement stability.
• Sensor surface treated with anti-corrosion passivation for reliable operation in various water environments.
• Low-power design with internal circuitry optimized for strong electromagnetic interference resistance, ensuring long-term stable performance.

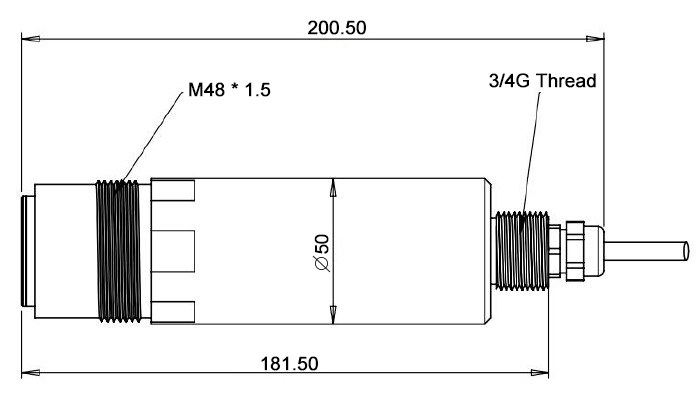

Dimension (Unit: mm)

Wiring

Installation

Note: Install the sensor in an area with slow-flowing, bubble-free water; keep the sensor 5cm away from the surrounding walls.
