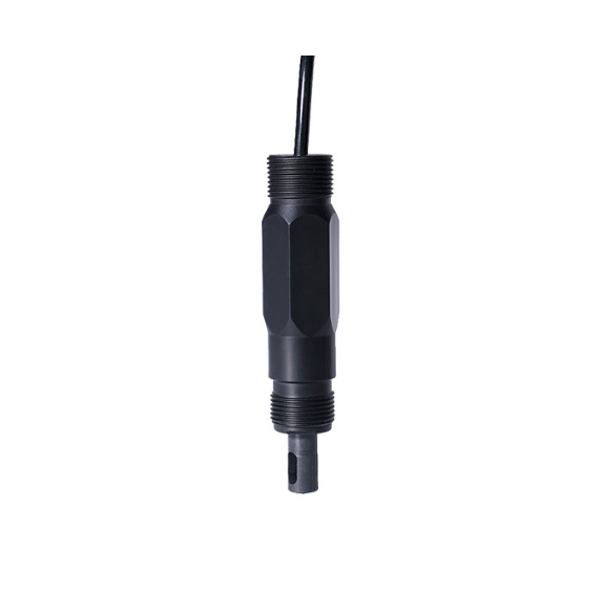

TDS Conductivity Sensor, 2 Electrode

0 review(s) | Add your review

SKU: SUCH-EC-2E

$309.48

● Conductivity 0.1-70.00ms/cm ● TDS 0-10000ppm ● Output signal RS485 ● Power supply 6~30V DC

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

TDS conductivity sensor with 2 electrode provides conductivity measurement in the range of 0.1-70.00 mS/cm and TDS up to 10000 ppm. It features dual graphite electrodes for stable performance and corrosion resistance, with RS485 Modbus RTU output supporting 03, 06, and 16 commands for easy system integration and remote communication. Powered by 6-30V DC, SUCH EC sensor is suitable for aquaculture, wastewater treatment, environmental engineering, electronics, and pharmaceutical applications.

Feature

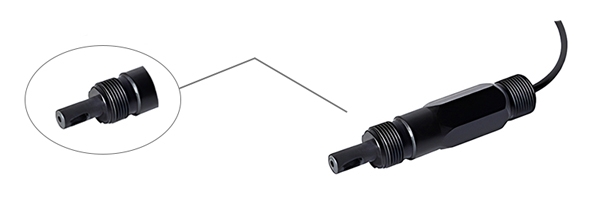

TDS conductivity sensor detail

Electrode Design: Uses dual graphite electrodes with good consistency and stable performance.
Measuring Range: Electrical conductivity sensor suitable for conductivity measurement within 0~70mS/cm.
Communication Interface: Equipped with RS485 Modbus RTU protocol, supporting 03, 06, 16 commands.
Networking Capability: Easy to integrate into systems for remote communication with upper computers.
Corrosion Resistance: Designed to operate in harsh environments with long service life.
Wide Applications: Suitable for aquaculture, wastewater treatment, environmental engineering, electronics, and pharmaceuticals.

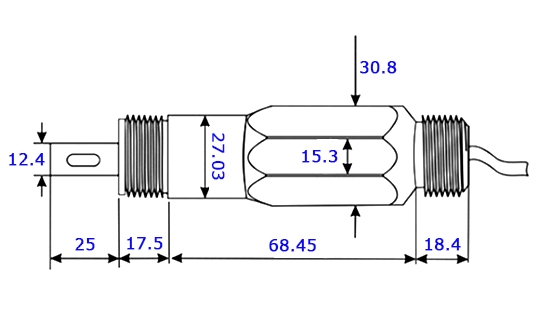

Dimension (Unit:mm)

TDS conductivity sensor size

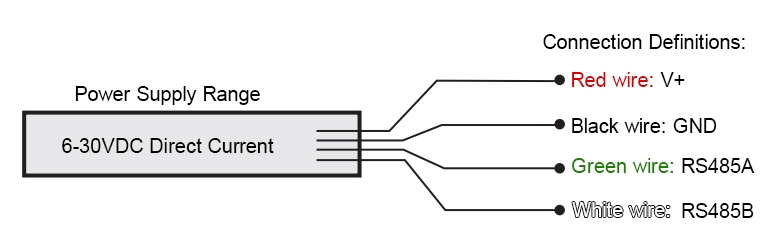

Wiring

TDS conductivity sensor wiring

Specs

Measurement Parameters	Water temperature/salinity/conductivity/TDS
Measurement Range and Resolution	Water temperature: 0~60℃ (0.1℃) Conductivity: 0.1-70.00ms/cm (0.01ms/cm) TDS: 0-10000ppm (1ppm)
Electrode Constant	0.8±0.1
Measurement Accuracy	Conductivity: <2.5%F.S Temperature: 0.5℃
Data Compensation	Default 25.0℃ compensation temperature, 2%/℃ (adjustable)
Communication Method	RS485 interface*1
Communication Protocol	Compatible with standard MODBUS-RTU protocol
Communication Method	Baud rate 966, 8, 1, N ID: 1-255, Default ID: 1 (0x01)
Setting Method	RS485 remote setting
Power Supply	6~30V DC (12 VDC recommended)
Power Consumption	30mA @12 VDC
Installation Method	Sunken type Front and rear G3/4 threads
Electrode and Shell Material	Electrode: PPS+graphite Shell: PC+ABS

Application

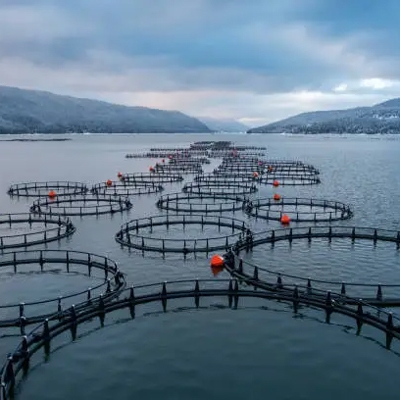

Aquaculture

Sewage Monitoring

Environment Protection

FAQ

Q1: What is the advantage of using graphite electrodes? ❯

Graphite electrodes resist corrosion, are easy to maintain, and ensure stable measurement in long-term applications.

Q2: What is the difference between TDS and conductivity? ❯

TDS refers to the total dissolved solids in water, while conductivity measures the ability of water to conduct electricity. TDS is often estimated from conductivity values using a conversion factor.

Q3: Can the TDS conductivity sensor be used in seawater? ❯

Yes, the sensor can be used in seawater and other high-salinity solutions, as long as the conductivity is within its measurement range.
